Master Switch

Cruise Control Master Switch Test/Replacement

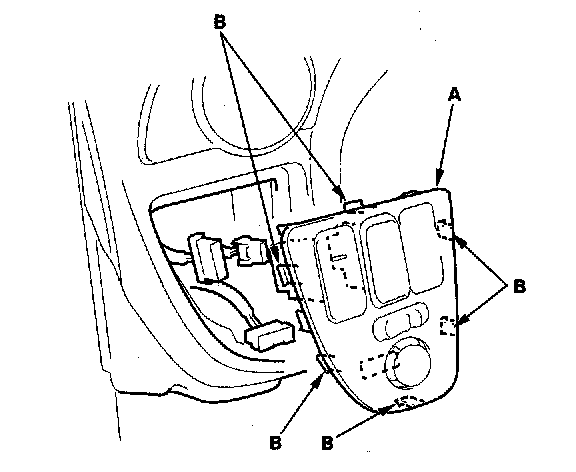

1. Gently pry up on the driver's switch panel (A) to release the hooks (B), then pull out the panel.

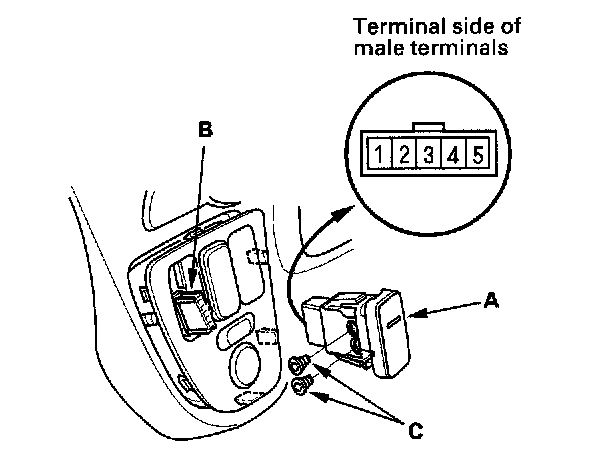

2. Release the clips, and push the cruise control master switch (A) out of the panel, then disconnect the 5P connector (B) from the cruise control master switch.




3. Check for continuity between the terminals in each switch position according to the table. If the continuity is not as specified, replace the illumination bulbs (C) or the switch.
