Interior Lighting Module: Locations

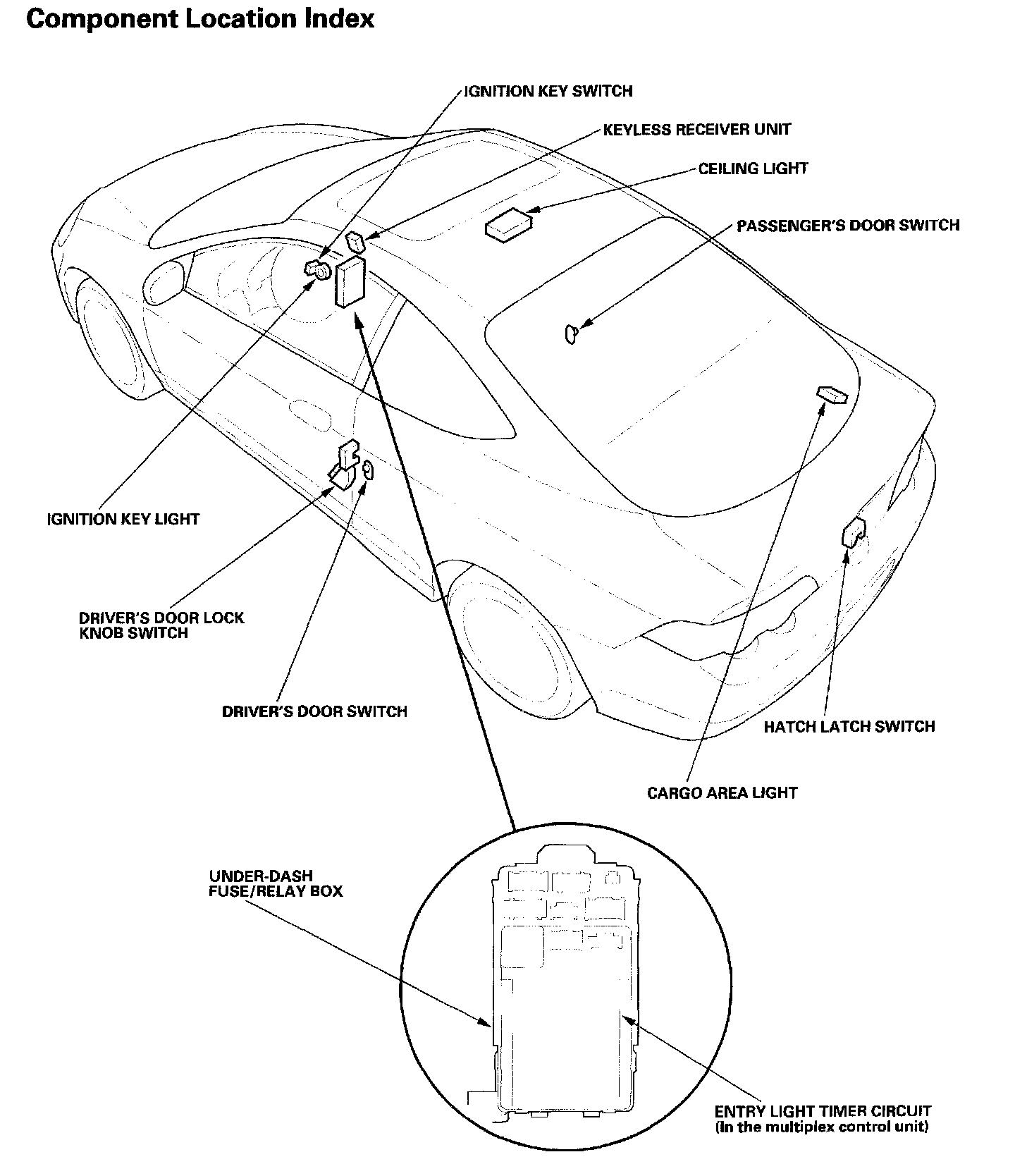

Entry Lights Control System - Component Location Index:

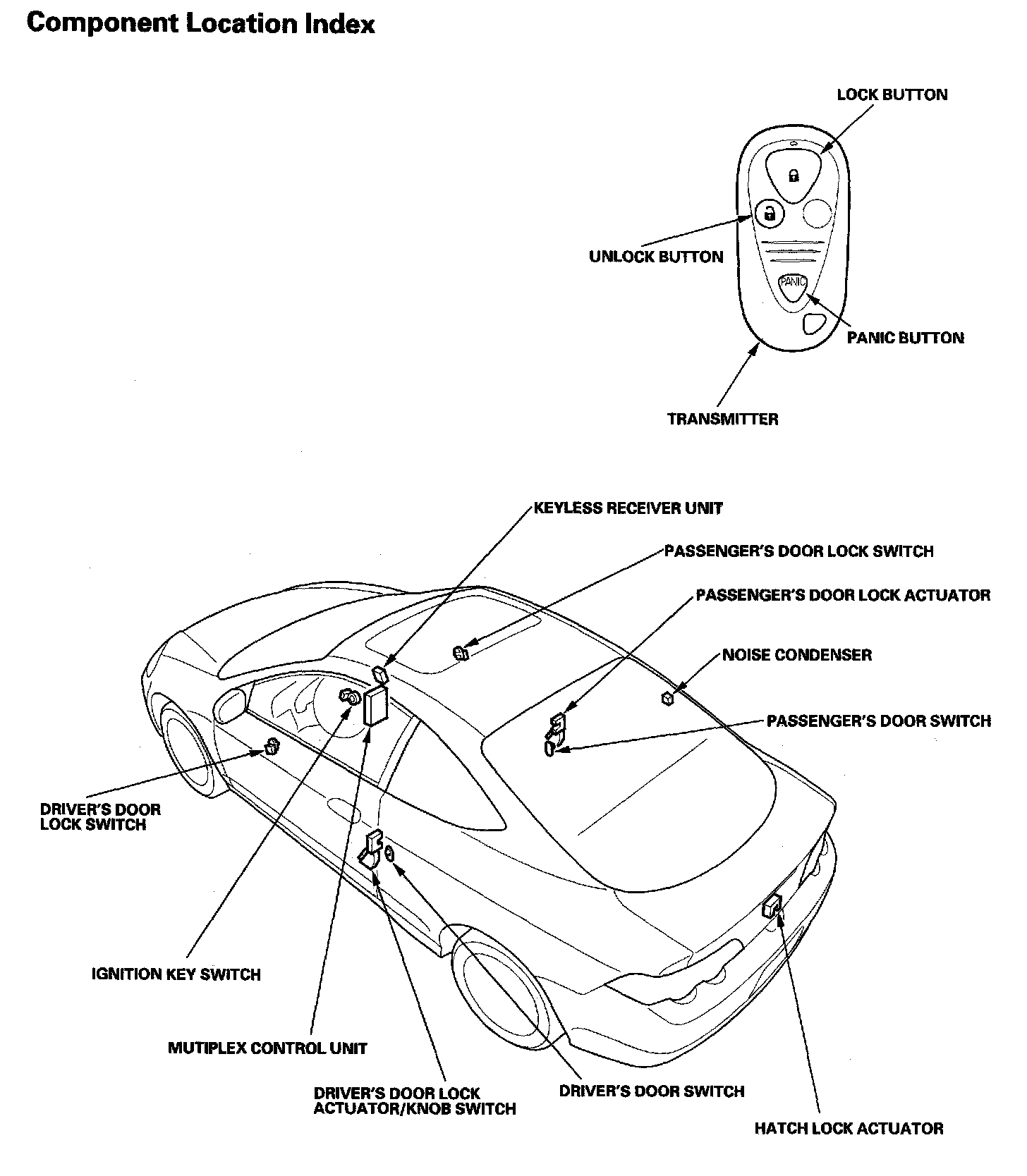

Keyless/Power Door Lock System - Component Location Index:

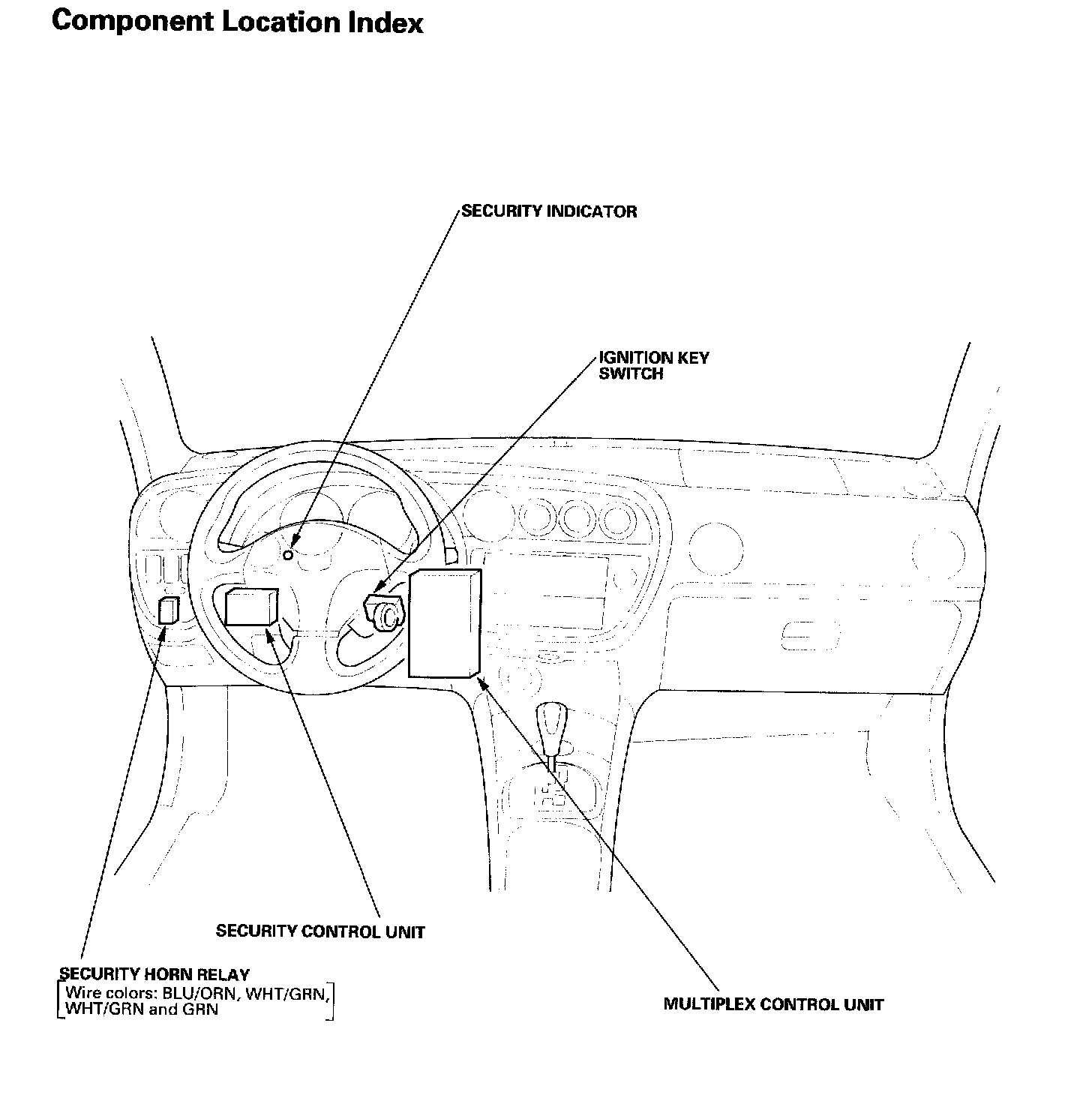

Security Alarm System - Component Location Index:
