Service Specifications

Clutch

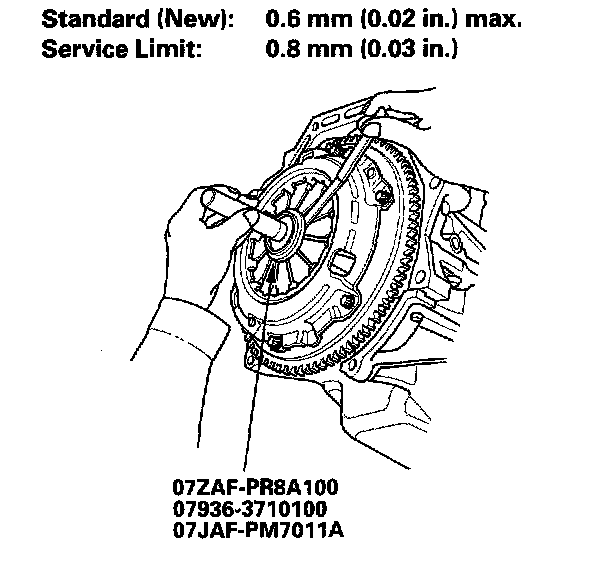

Height of the diaphragm spring fingers.

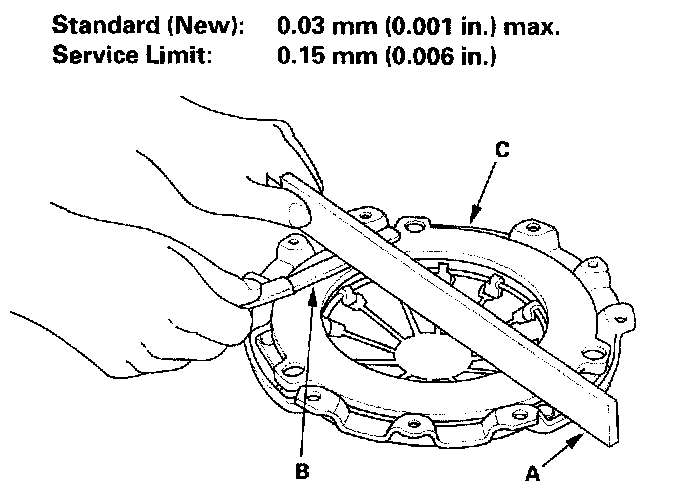

Warpage using a straight edge (A) and a feeler gauge (B). Measure across the pressure plate (C).

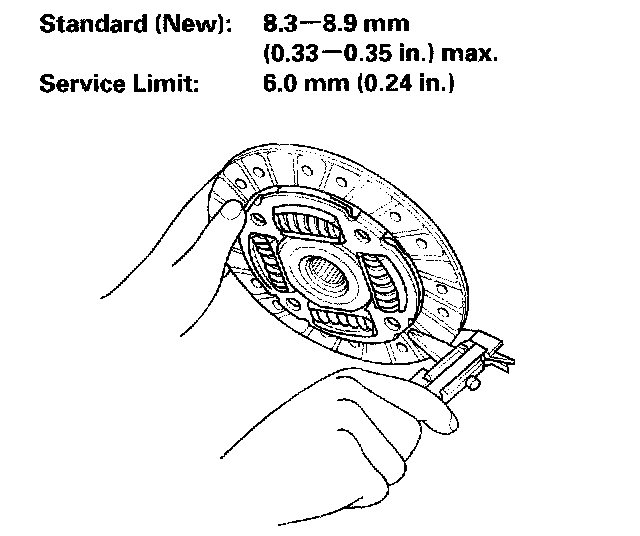

Clutch disc thickness.

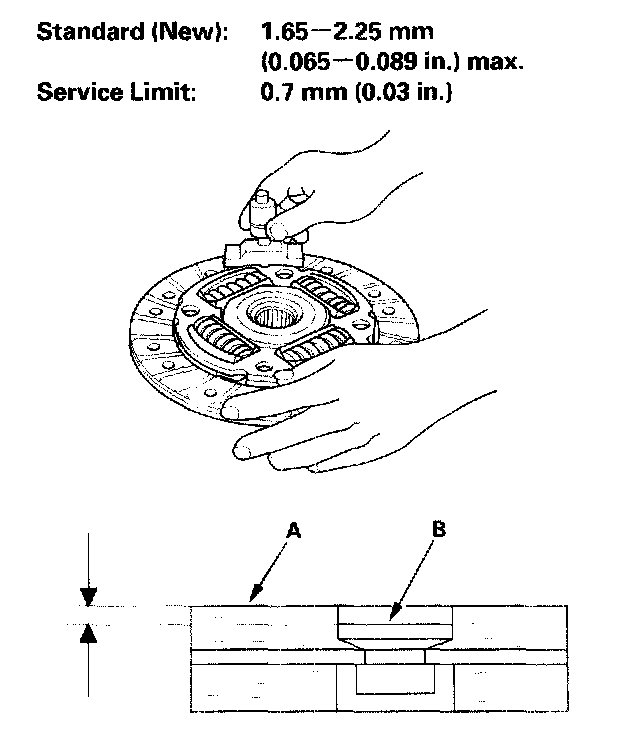

Rivet depth from the clutch disc lining surface (A) to the rivets (B) on both sides.

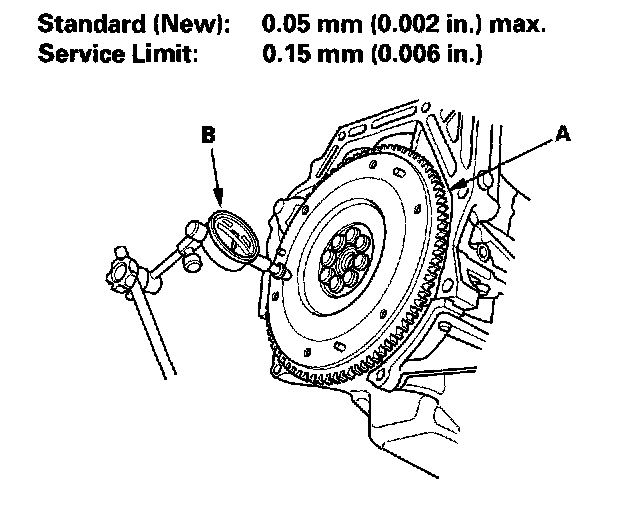

Flywheel (A) runout using a dial indicator (B) through at least two full turns.
