Climate Control Unit Inputs and Outputs

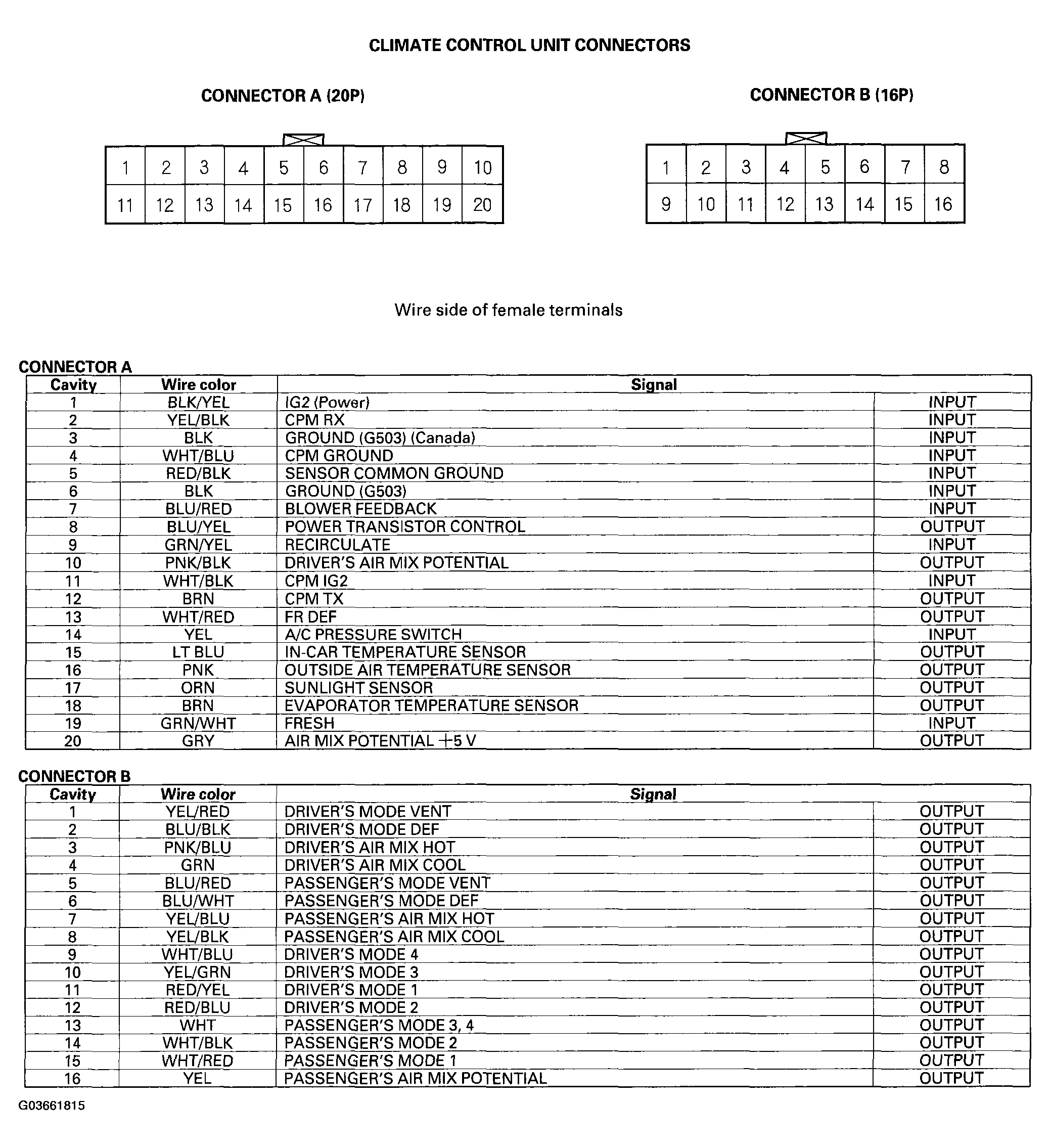

Fig 1: Identifying Climate Control Unit Inputs & Outputs
G03661815Courtesy of AMERICAN HONDA MOTOR CO., INC.
