HFL Switch/HFL-Voice Control Switch (Navigation) Connector End View

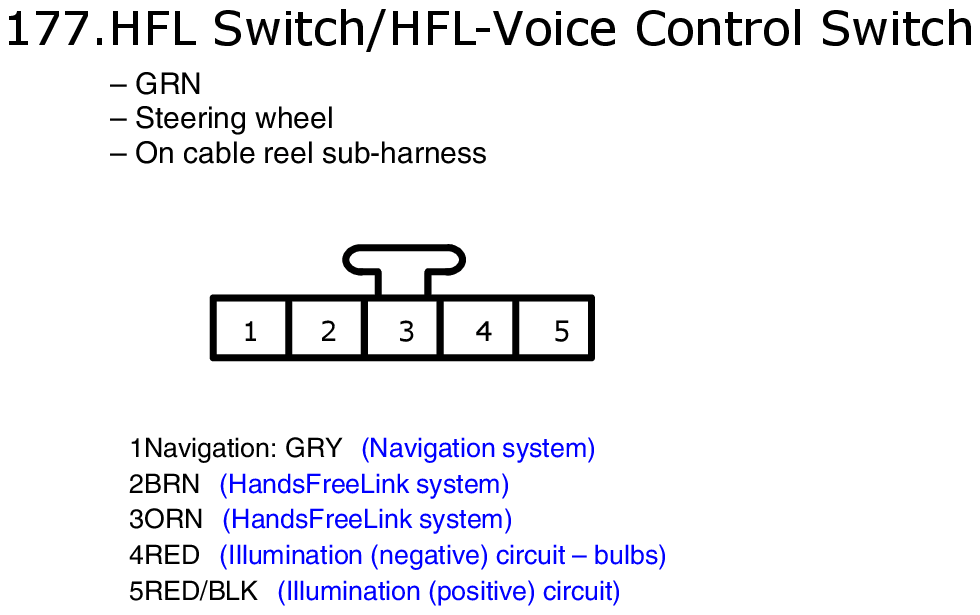

Fig 1: HFL Switch/HFL-Voice Control Switch (Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
