Interior Lighting Module: Locations

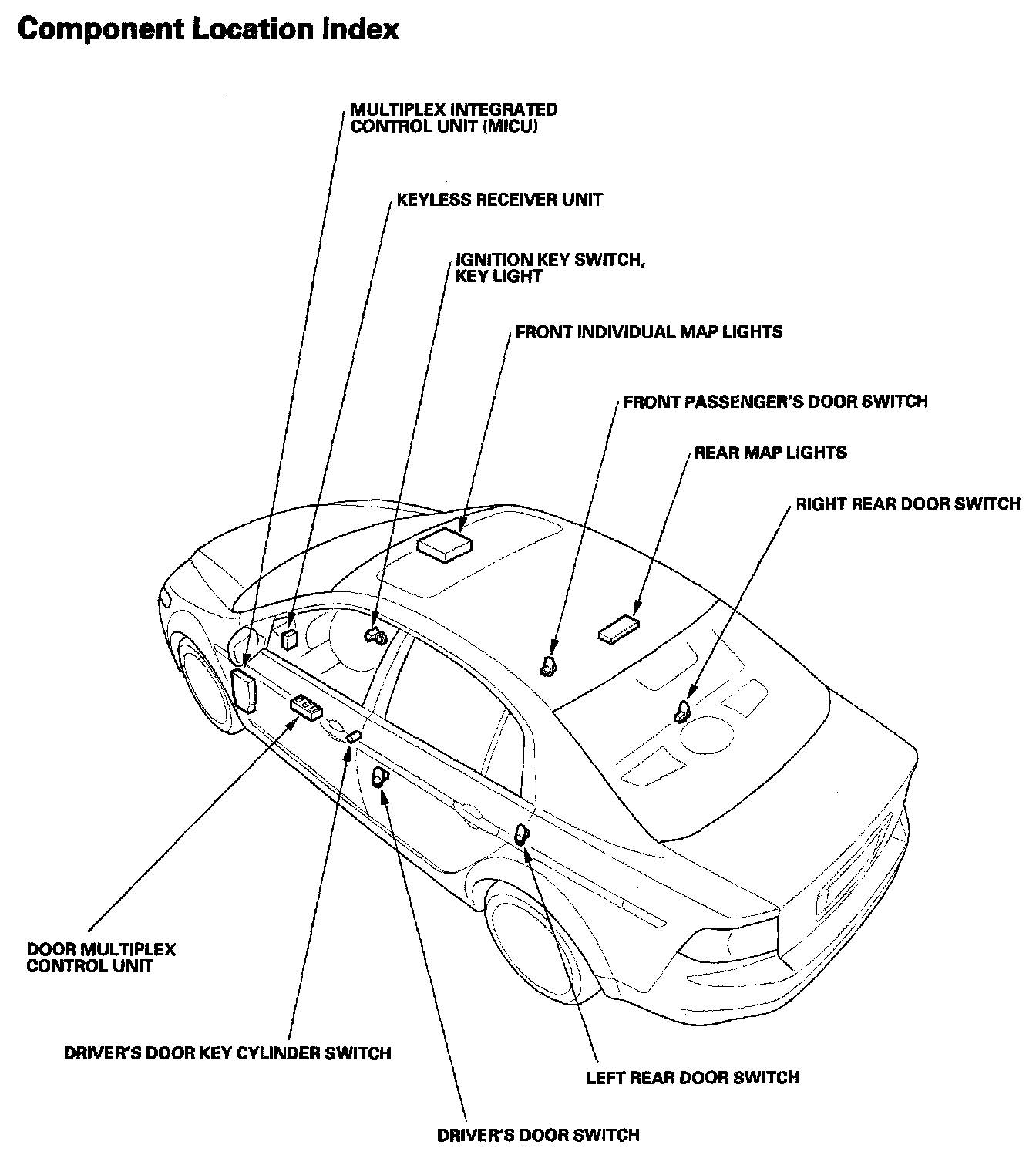

Entry Lights Control System - Component Location Index:

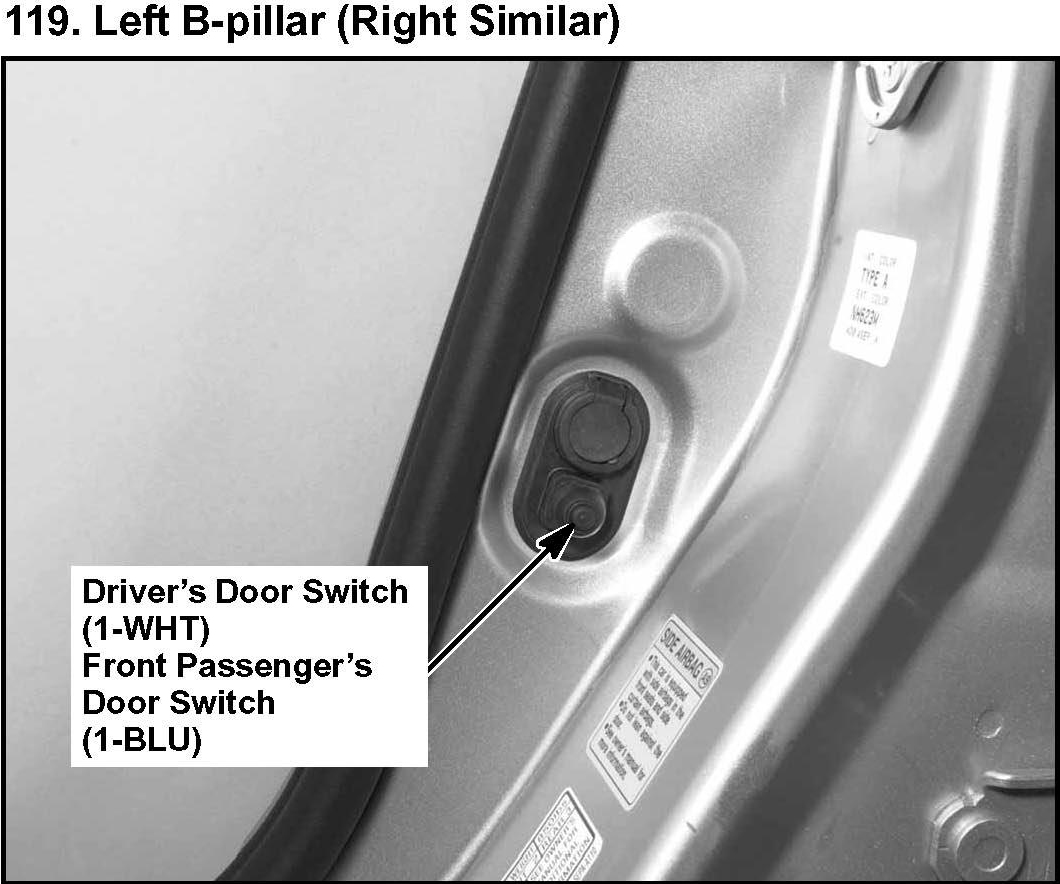

119. Left B-pillar (Right Similar):

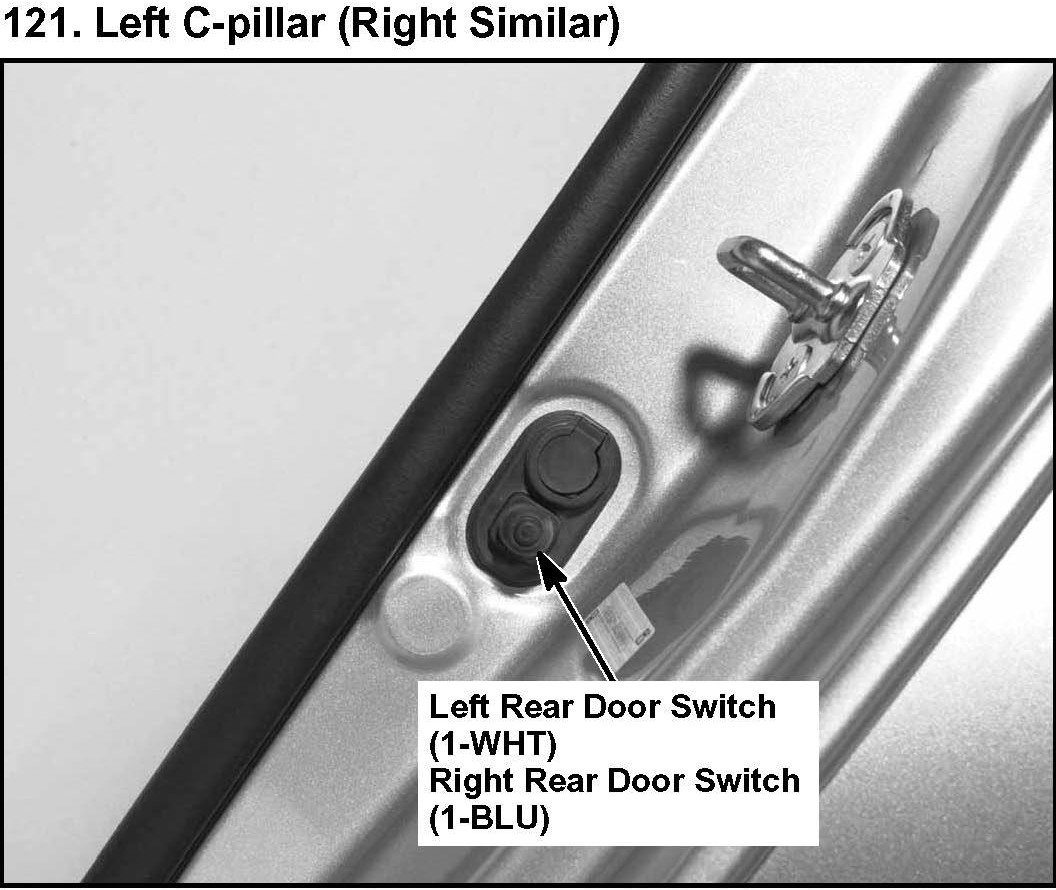

121. Left C-pillar (Right Similar):
