Knock Sensor Subharness

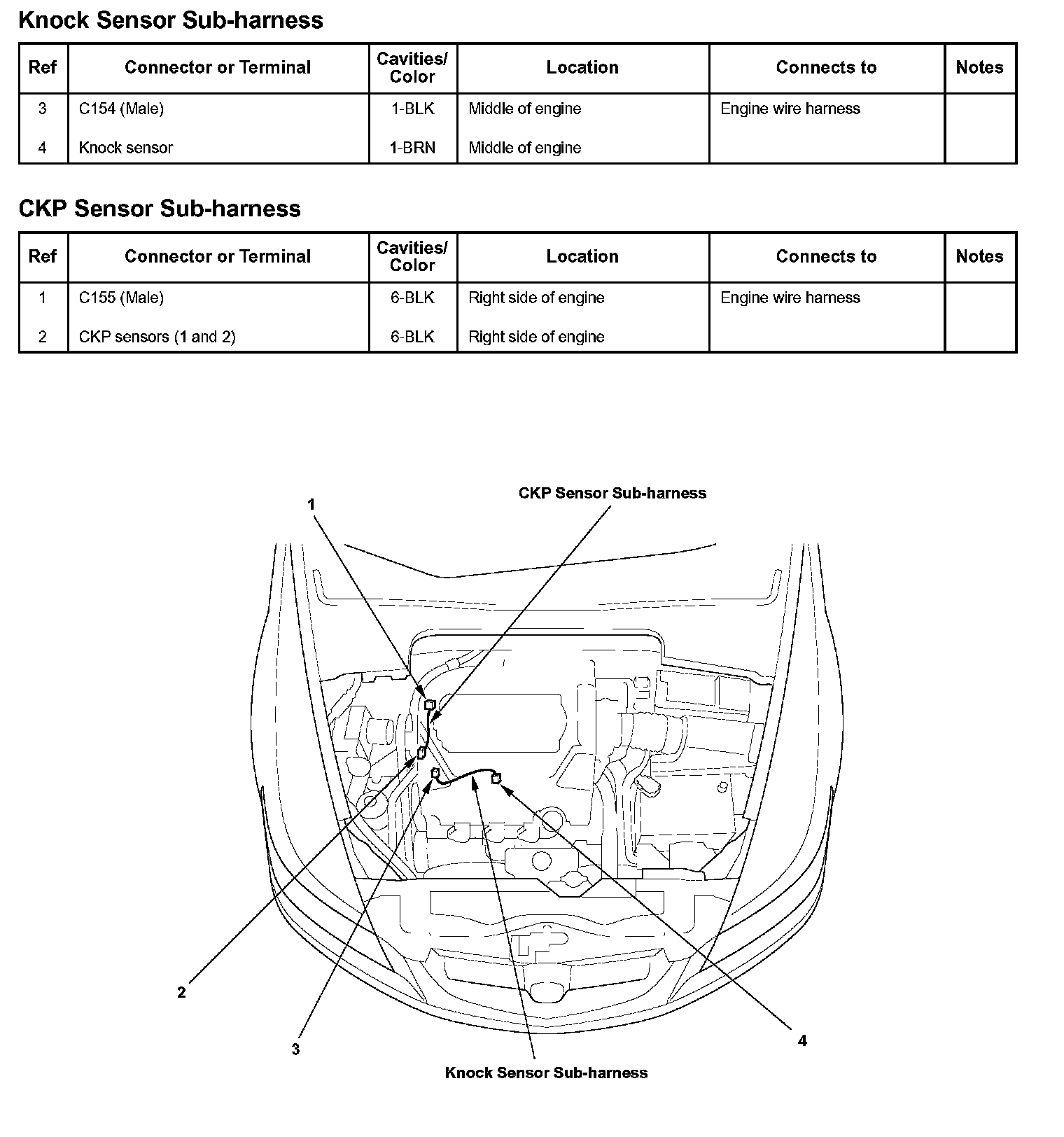

Knock Sensor Sub-harness/CKP Sensor Sub-harness:

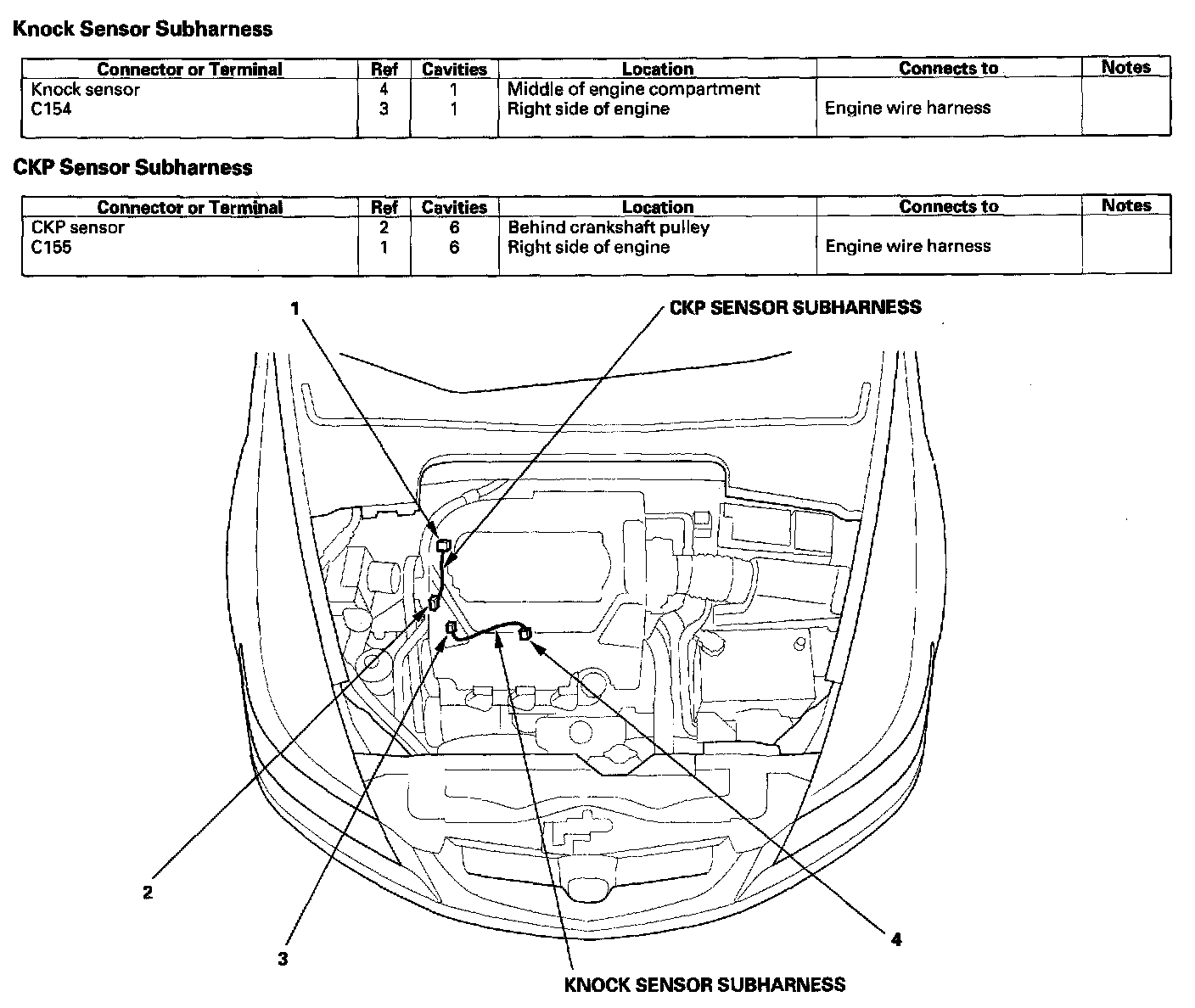

Knock Sensor Subharness/CKP Sensor Subharness:
