Control Module, A/T

PCM Inputs and Outputs

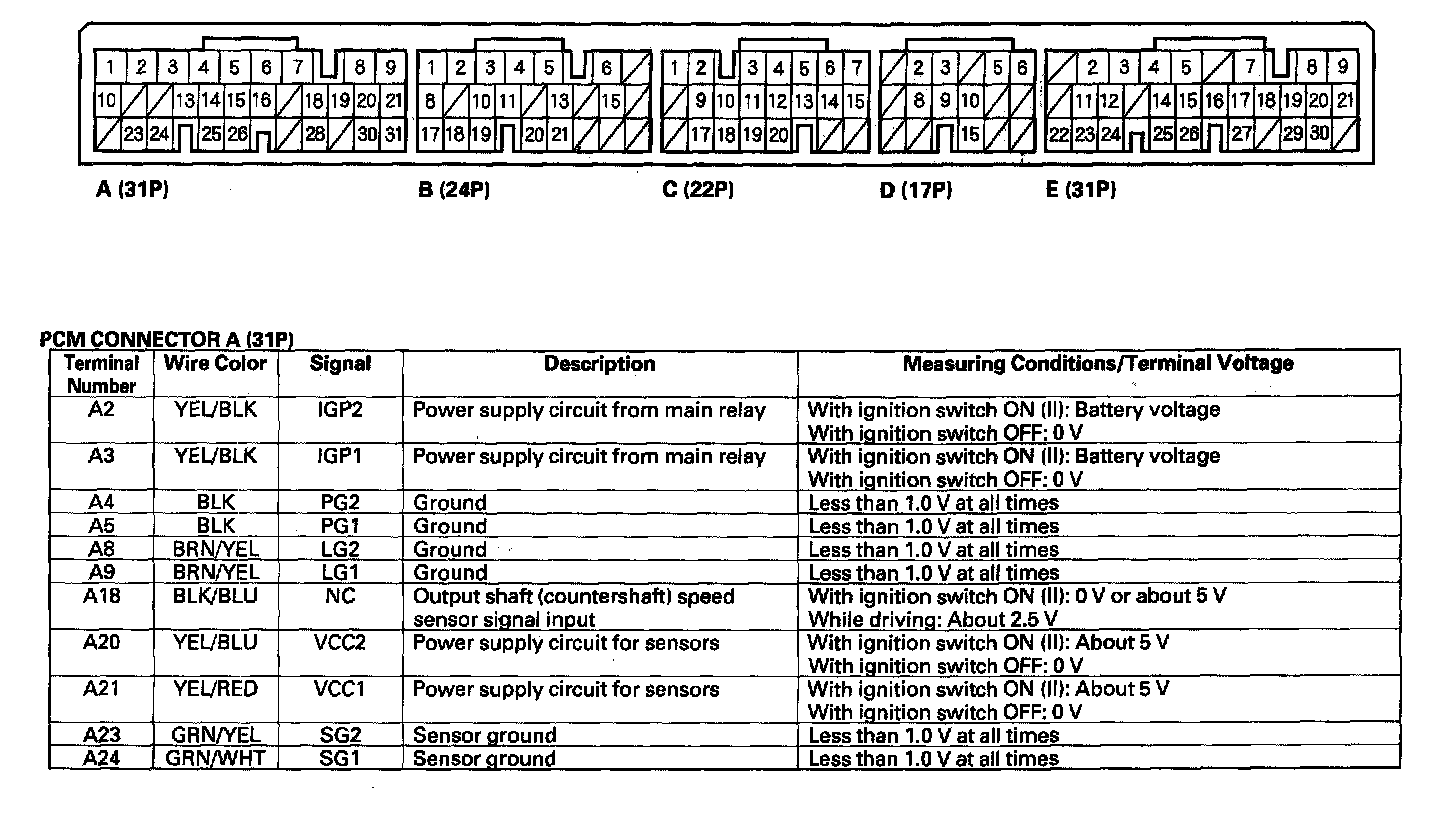

PCM Connector Terminal Locations

Part 1:




Part 2:

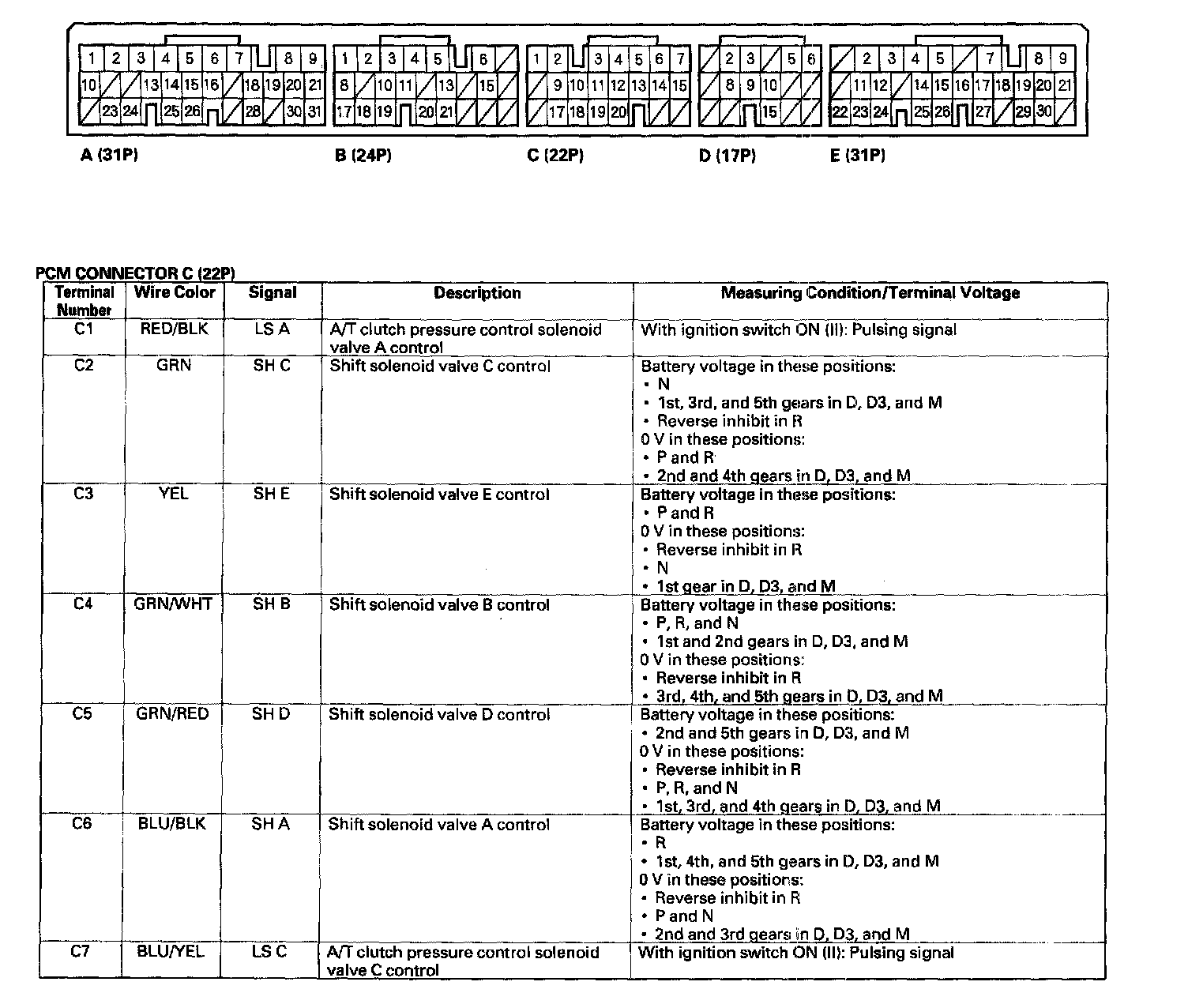

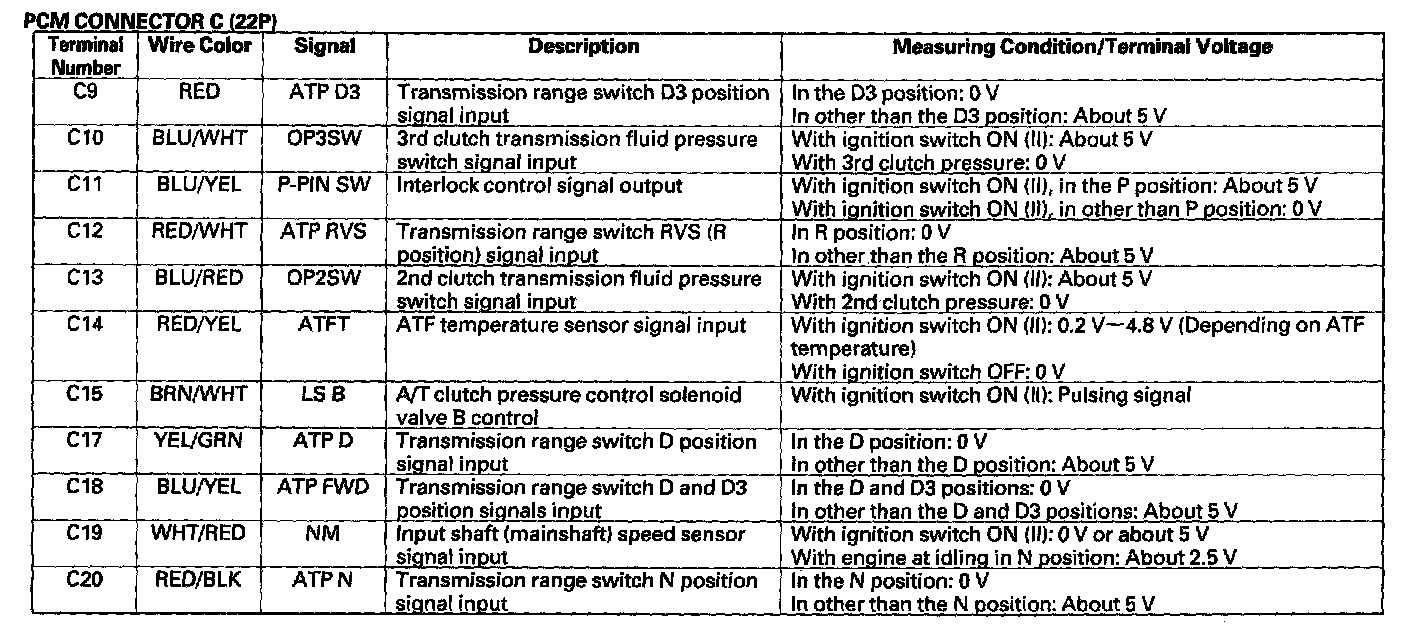

PCM Connector Terminal Locations

Part 1:




Part 2:

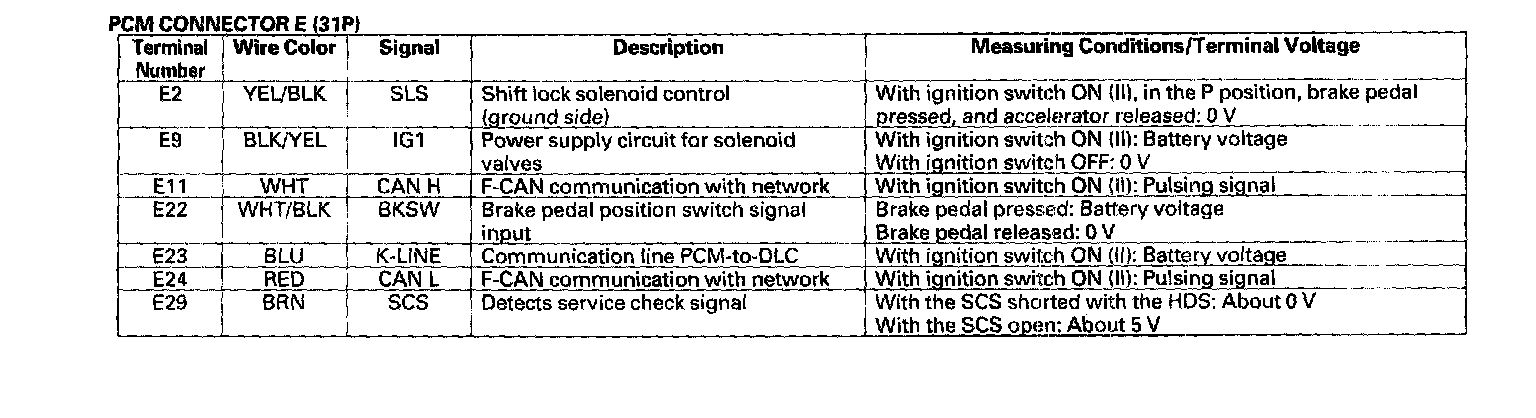

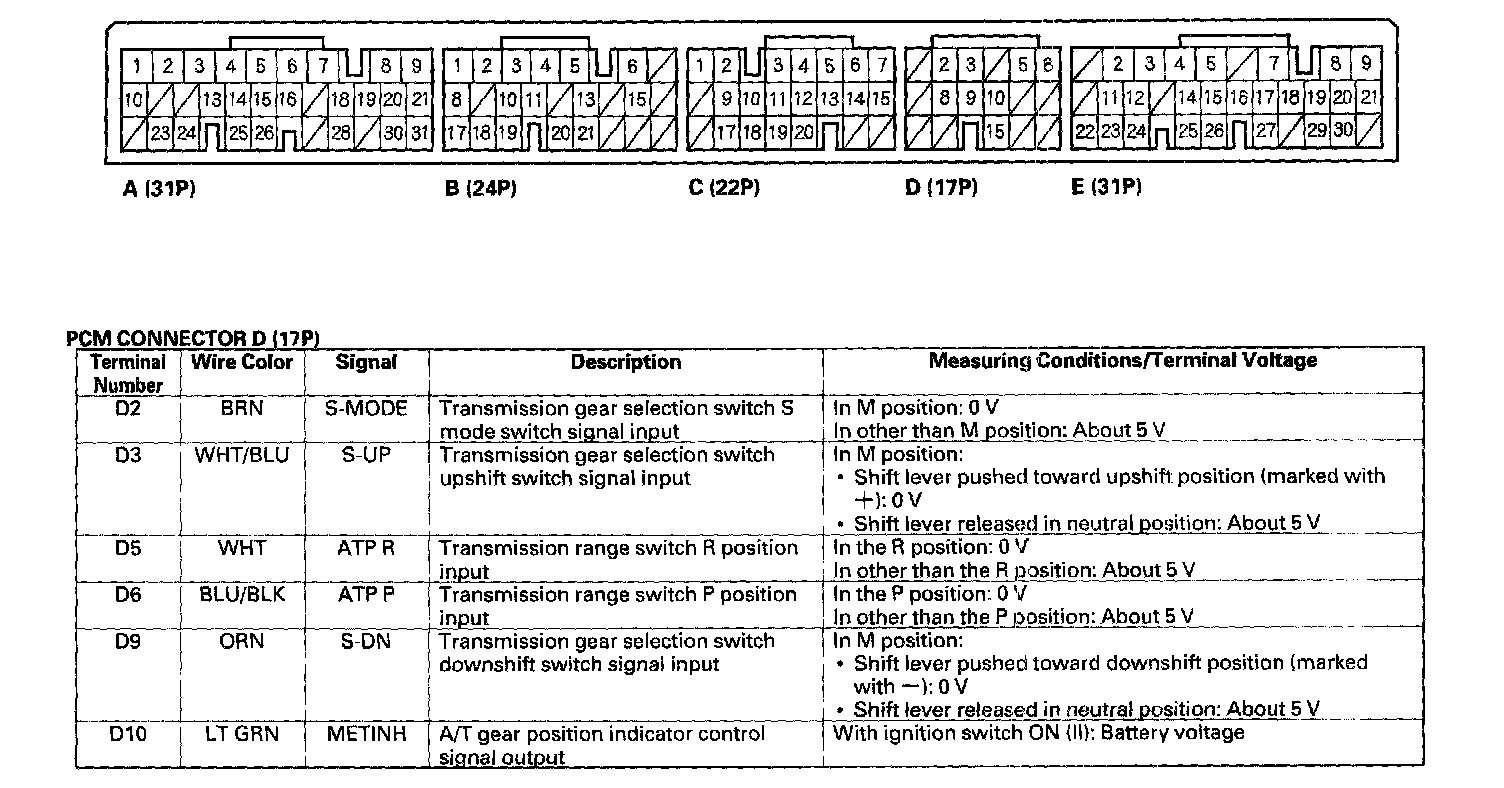

PCM Connector Terminal Locations
