Audio-HVAC Subdisplay/Clock Replacement

Audio-HVAC Subdisplay/Clock Replacement

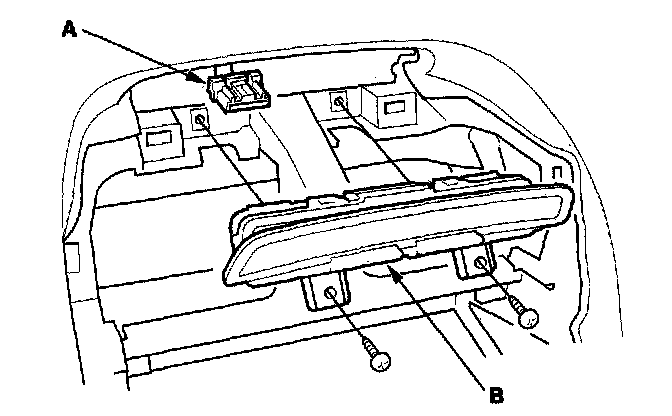

1. Remove the Audio-HVAC Display Module.
2. Remove the two mounting screws.




3. Disconnect the 10P connector (A) from the subdisplay unit (B).
4. Install in the reverse order of removal.
