Position detection Image with GPS satellite

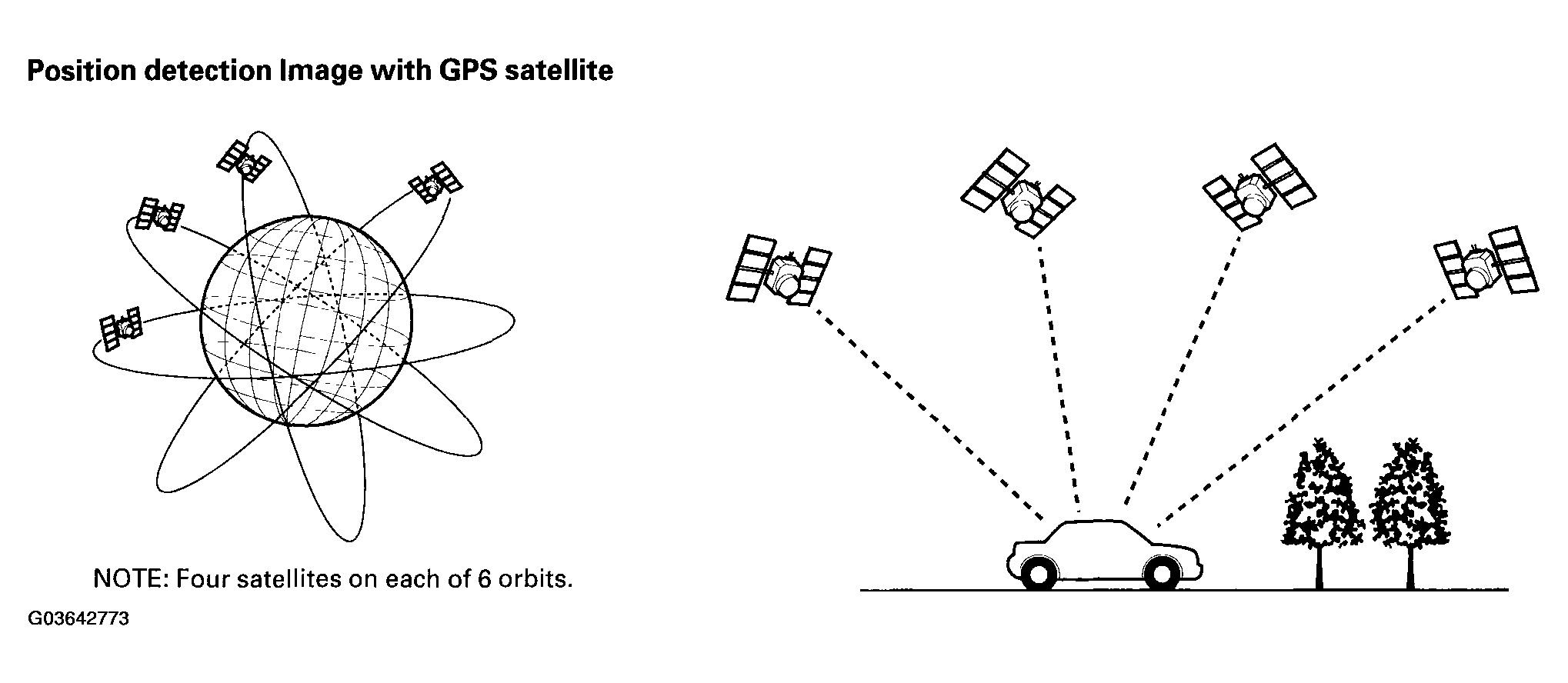

Fig 1: Positioning Detection Image With GPS Satellite
Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
Four satellites on each of 6 orbits.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
