System Description: Overview: Notes

Refer to Fig 1 for the following system description.

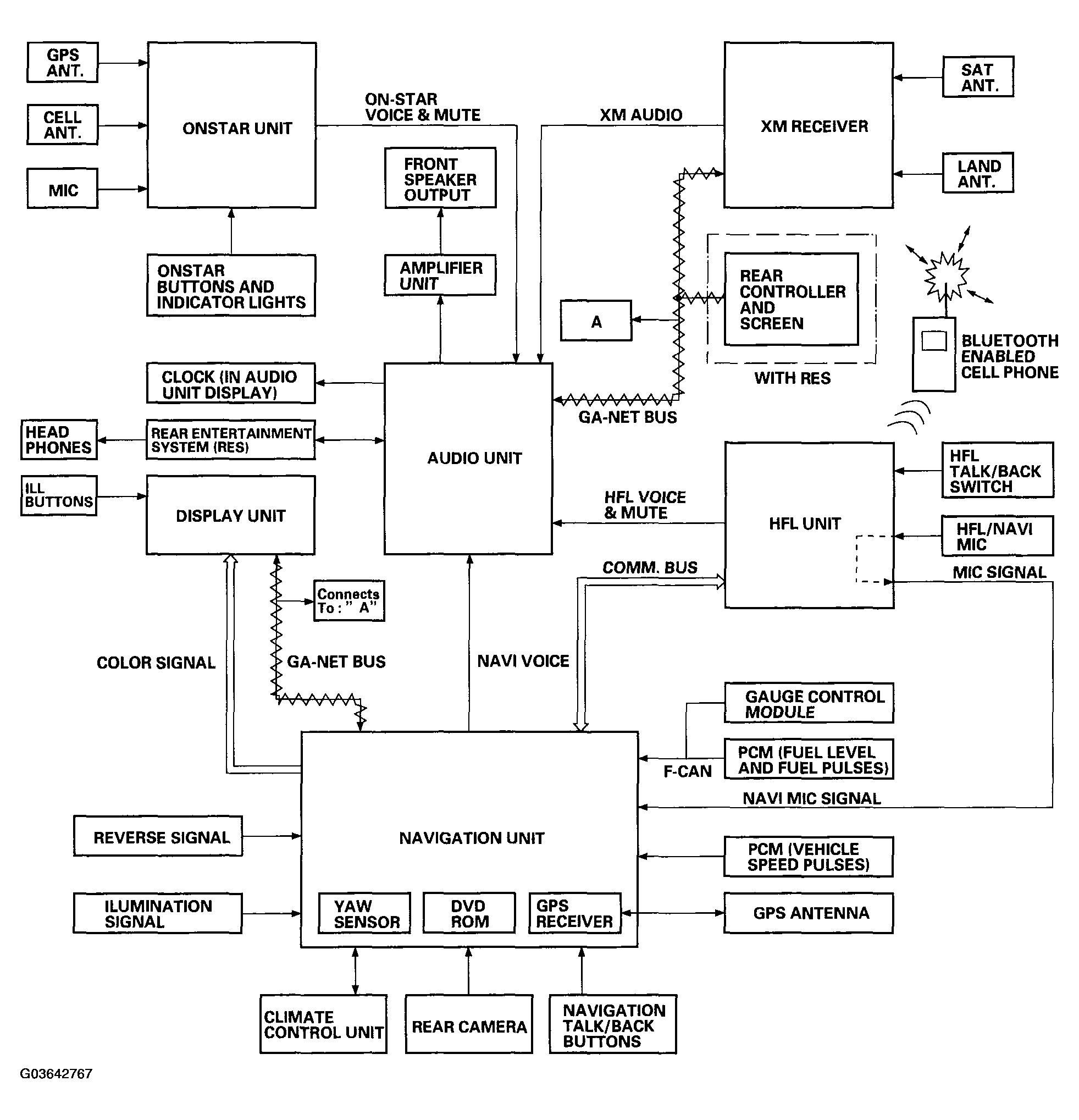

Fig 1: Navigation System Component Connection Diagram
G03642767Courtesy of AMERICAN HONDA MOTOR CO., INC.
