DTC P0980: Open in Shift Solenoid Valve C Circuit: Notes

Fig 1: Shift Solenoid Valve C Circuit Diagram
G04816889

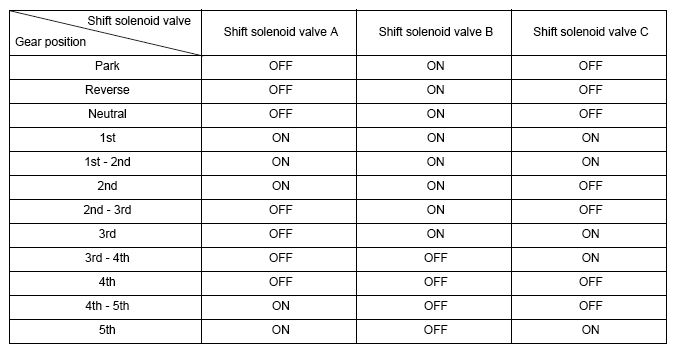

Fig 2: Gear Position To Shift Solenoid Valve Table
G04816679
