C803 Connector End View

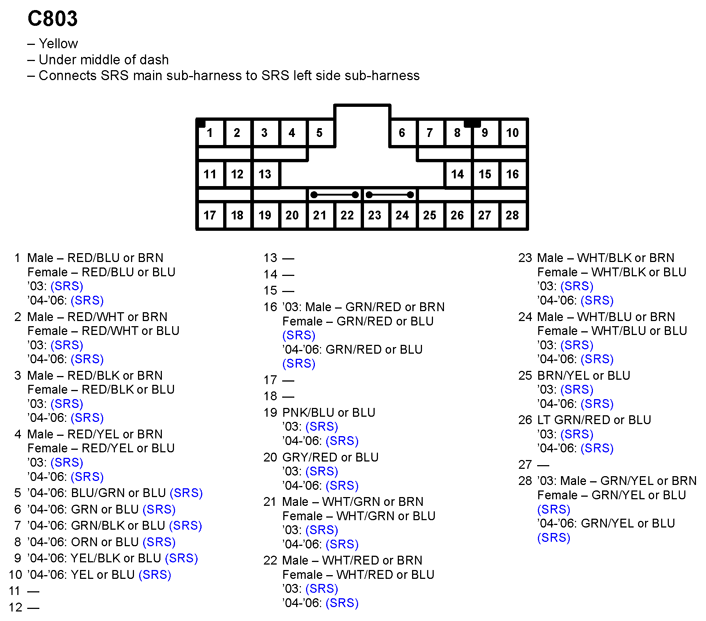

Fig 1: C803 Connector End View
G11248259Courtesy of AMERICAN HONDA MOTOR CO., INC.
