System Diagram

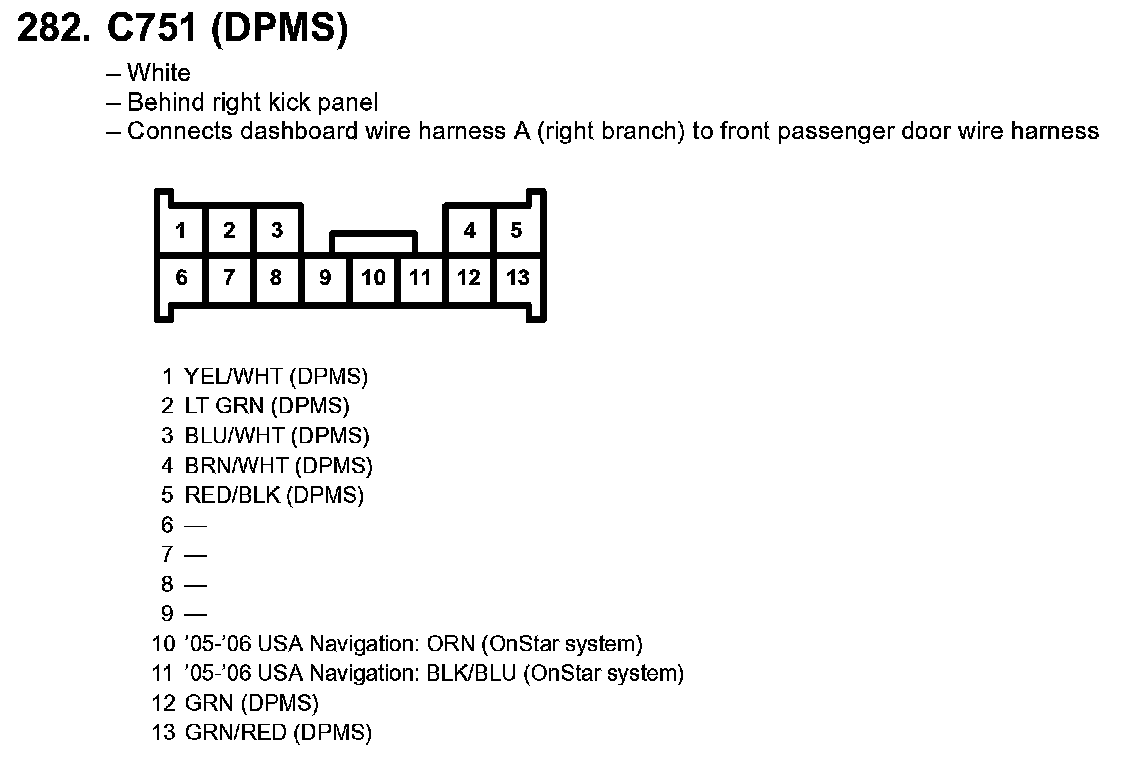

282. C751 (DPMS):

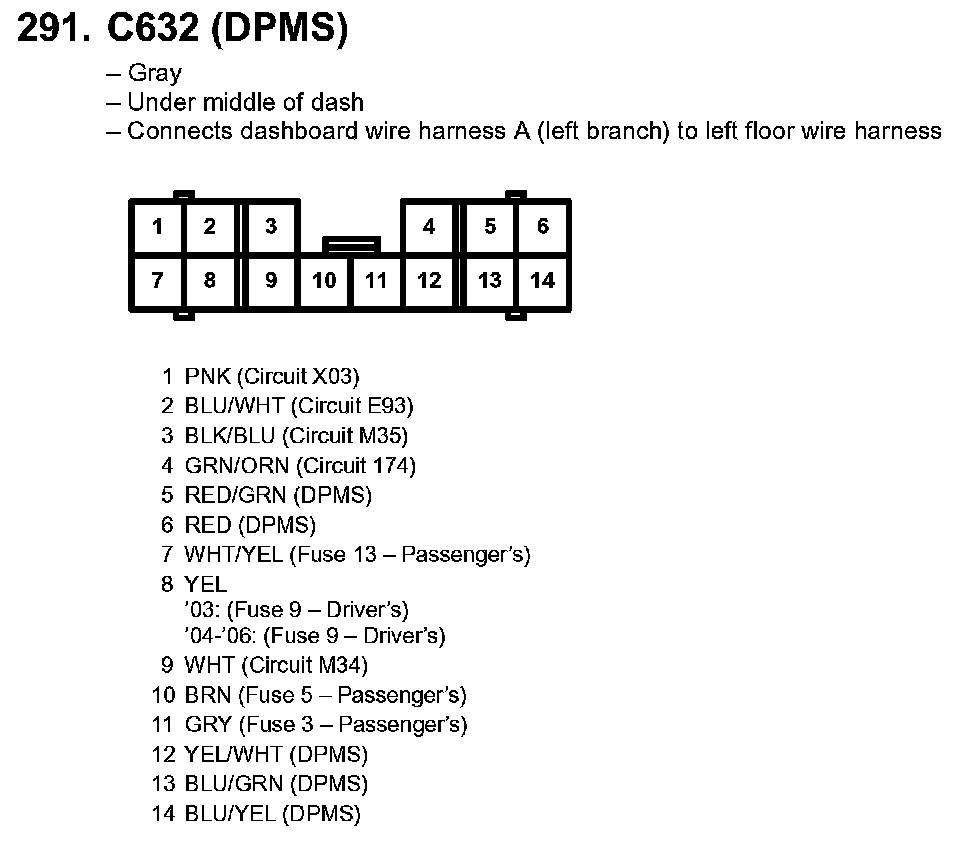

291. C632 (DPMS):

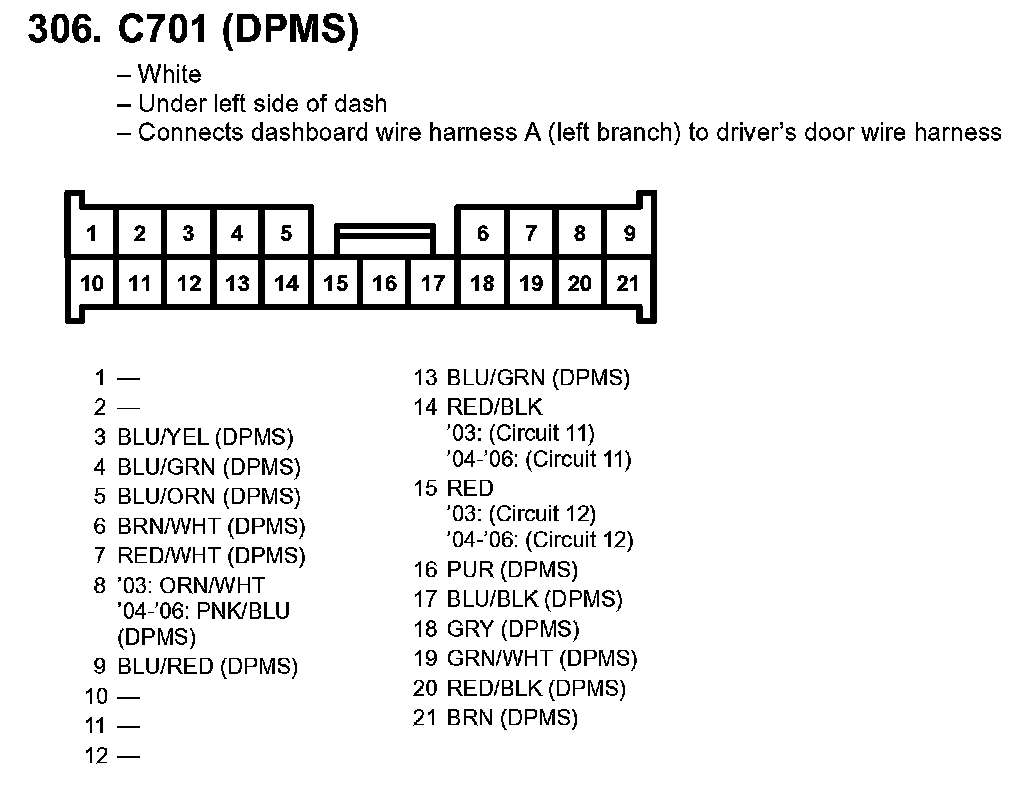

306. C701 (DPMS):



337. Power Seat Control Unit, Driver's (DPMS):
