Multiple Junction Connector

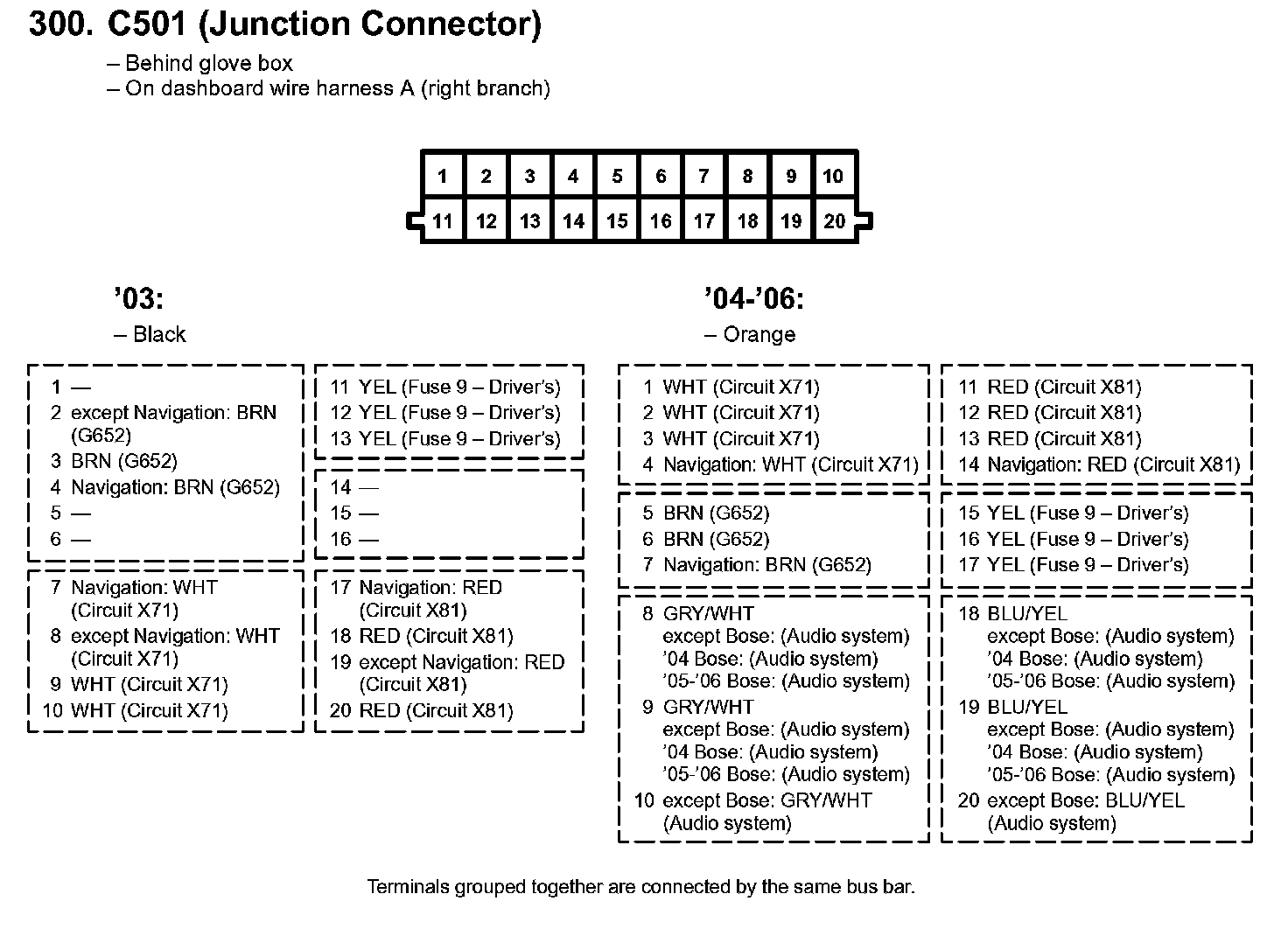

300. C501 (Junction Connector):



310. C103 (Junction Connector):

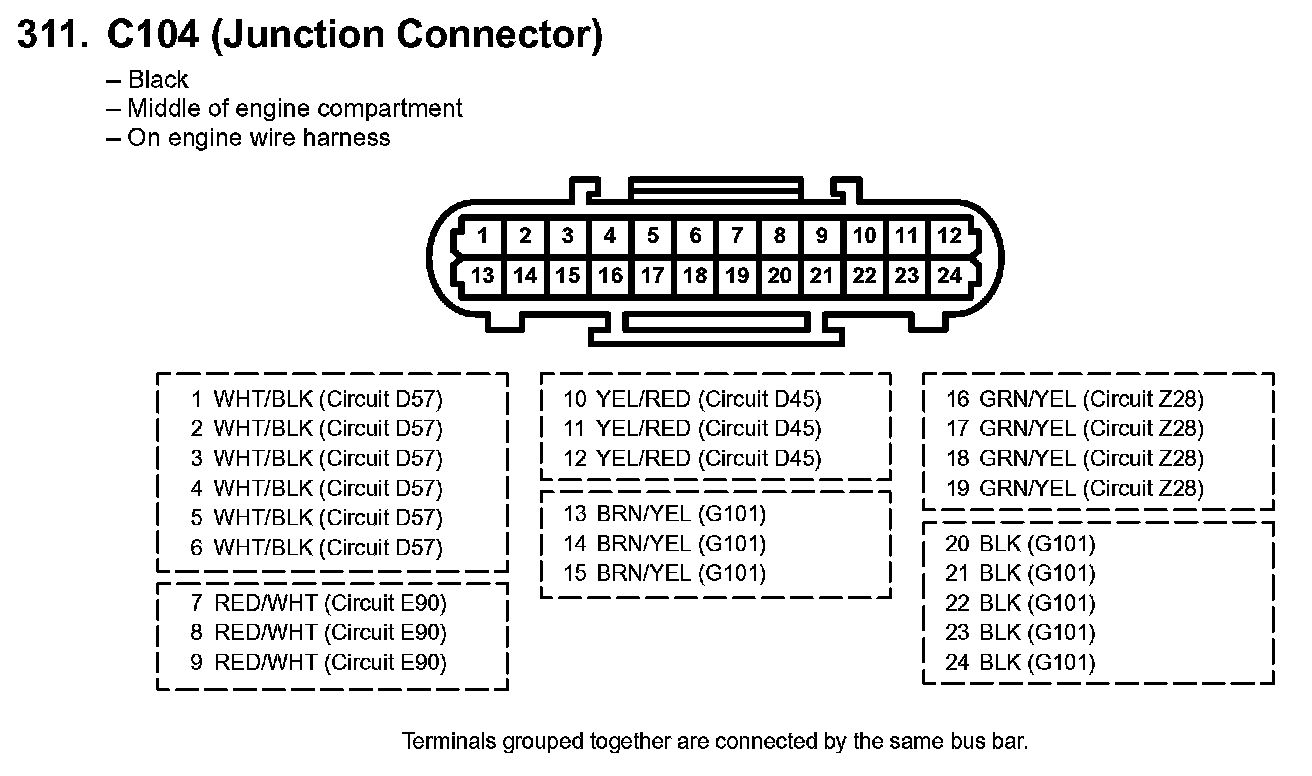

311. C104 (Junction Connector):

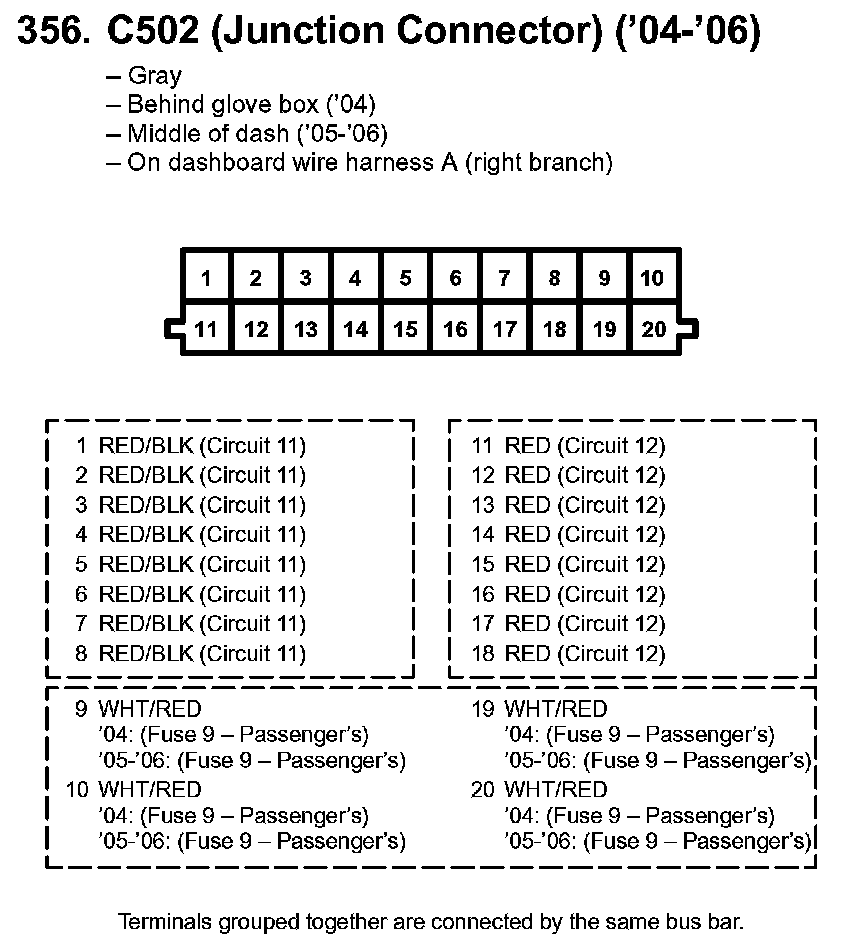

356. C502 (Junction Connector):



359. C503 (Junction Connector):

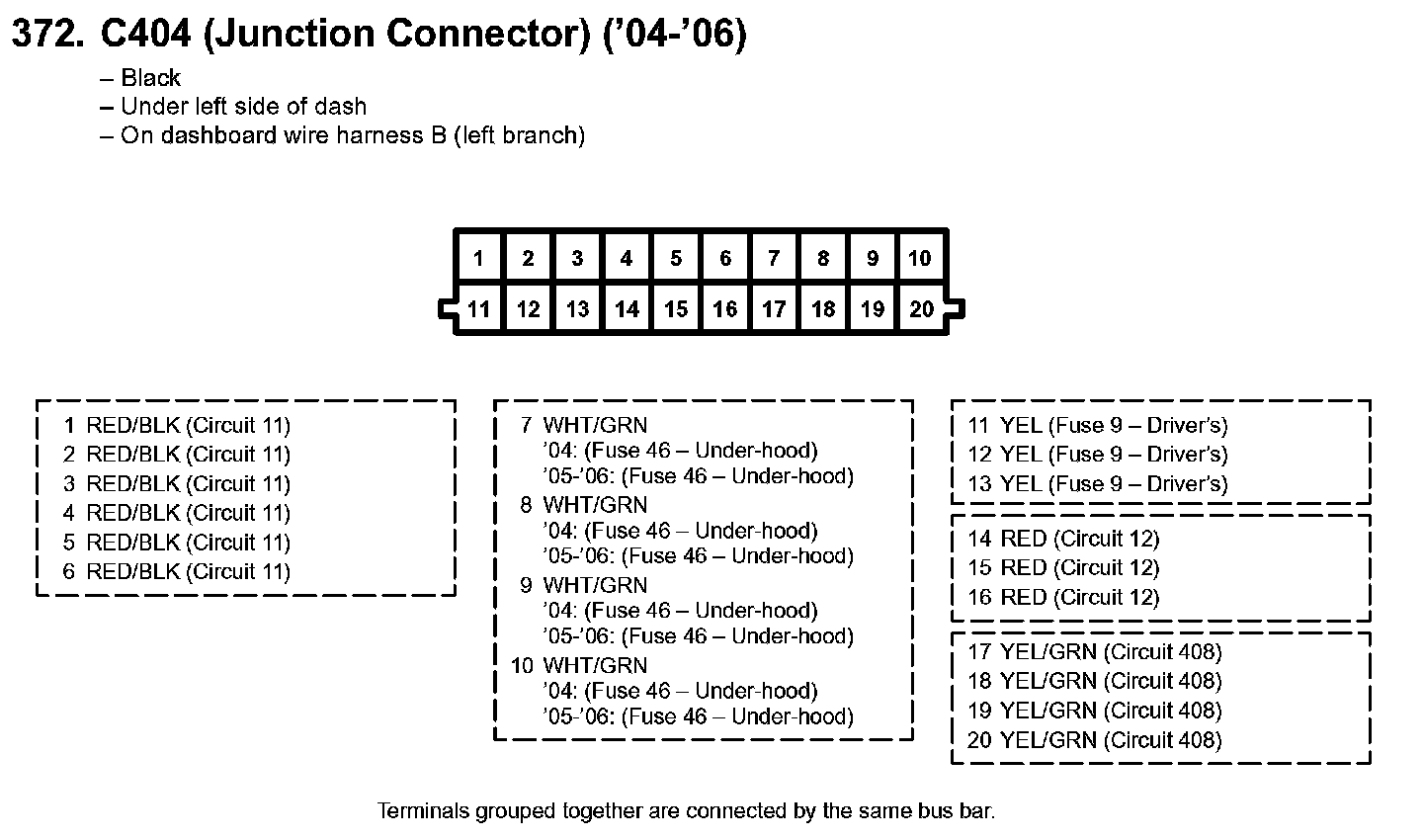

372. C404 (Junction Connector):

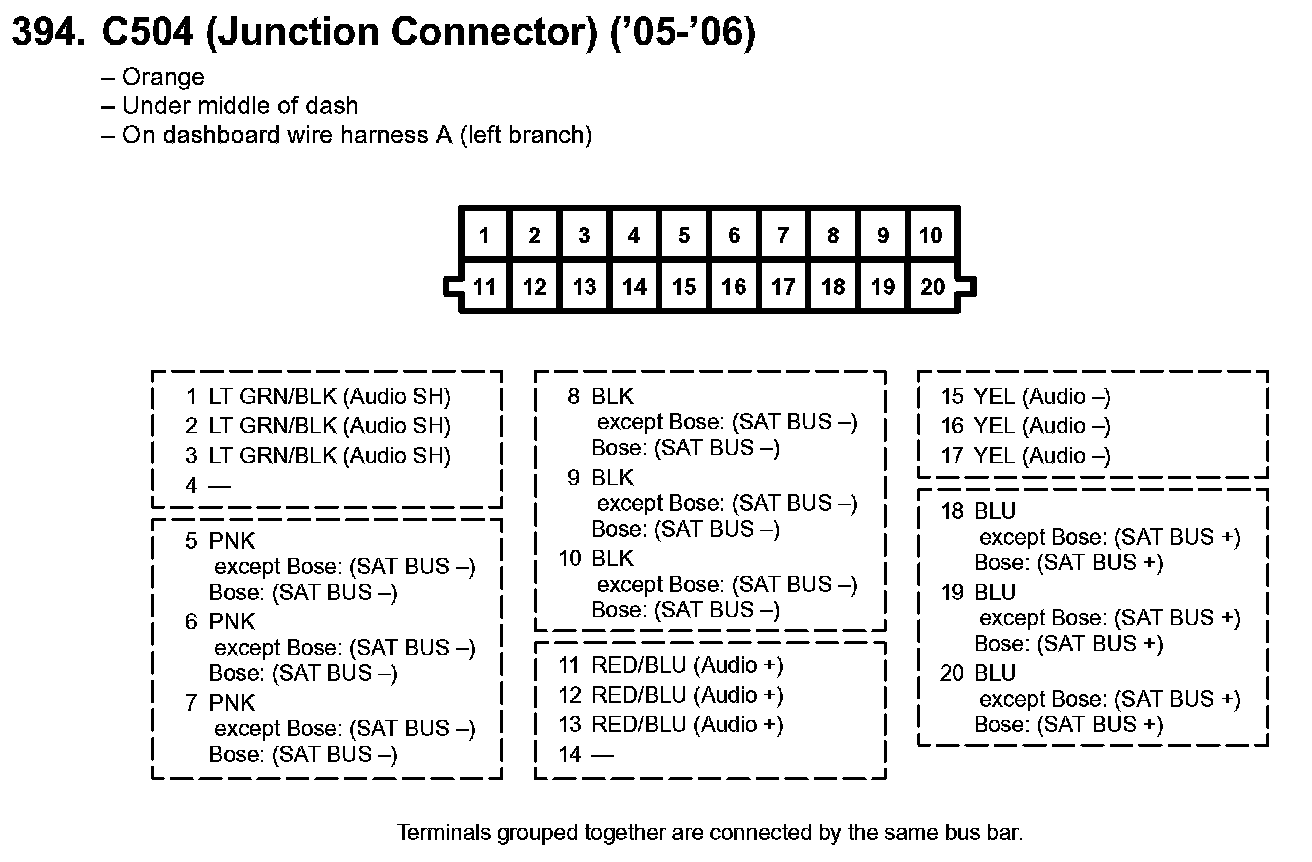

394. C504 (Junction Connector):
