PCM Circuit Diagrams

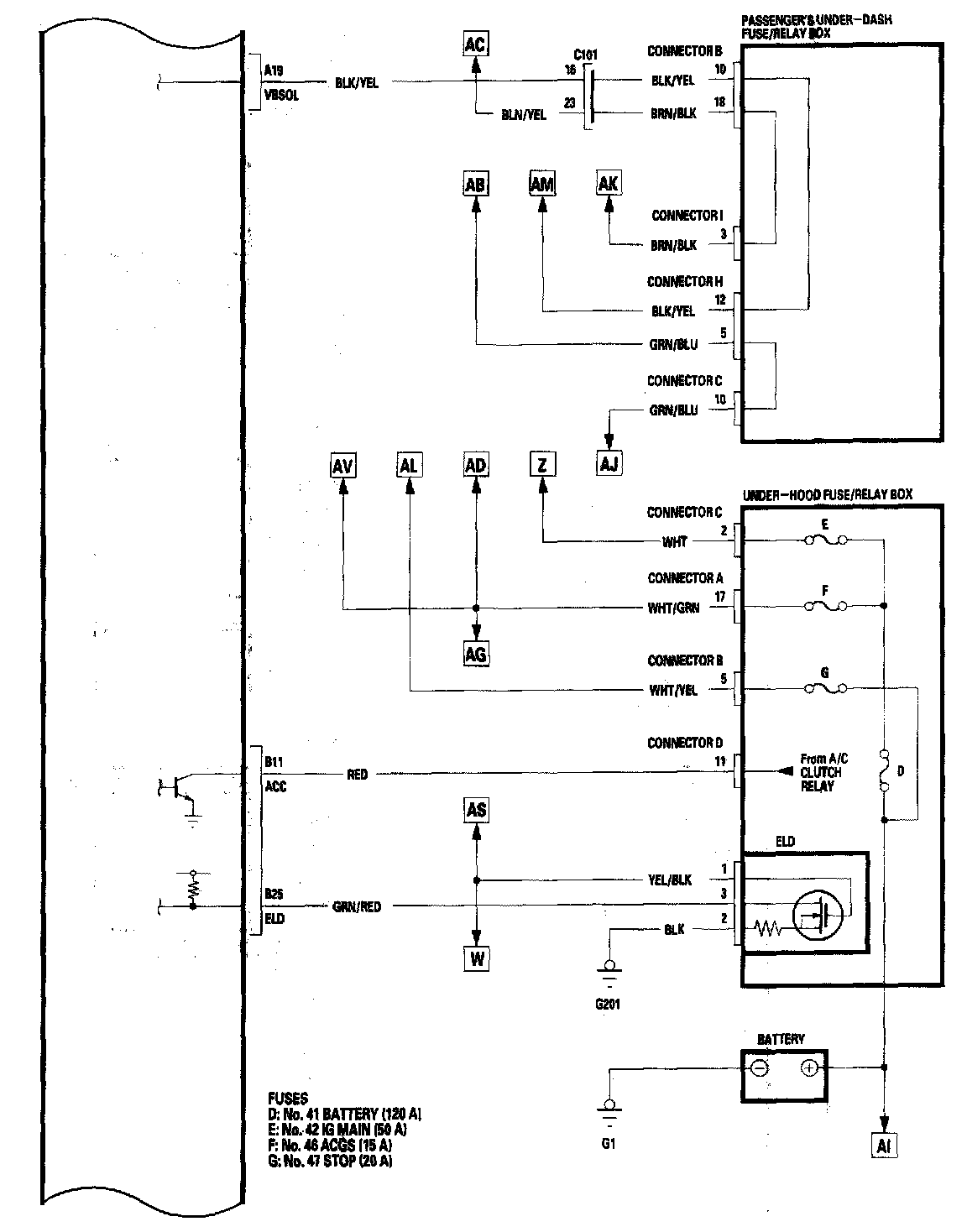

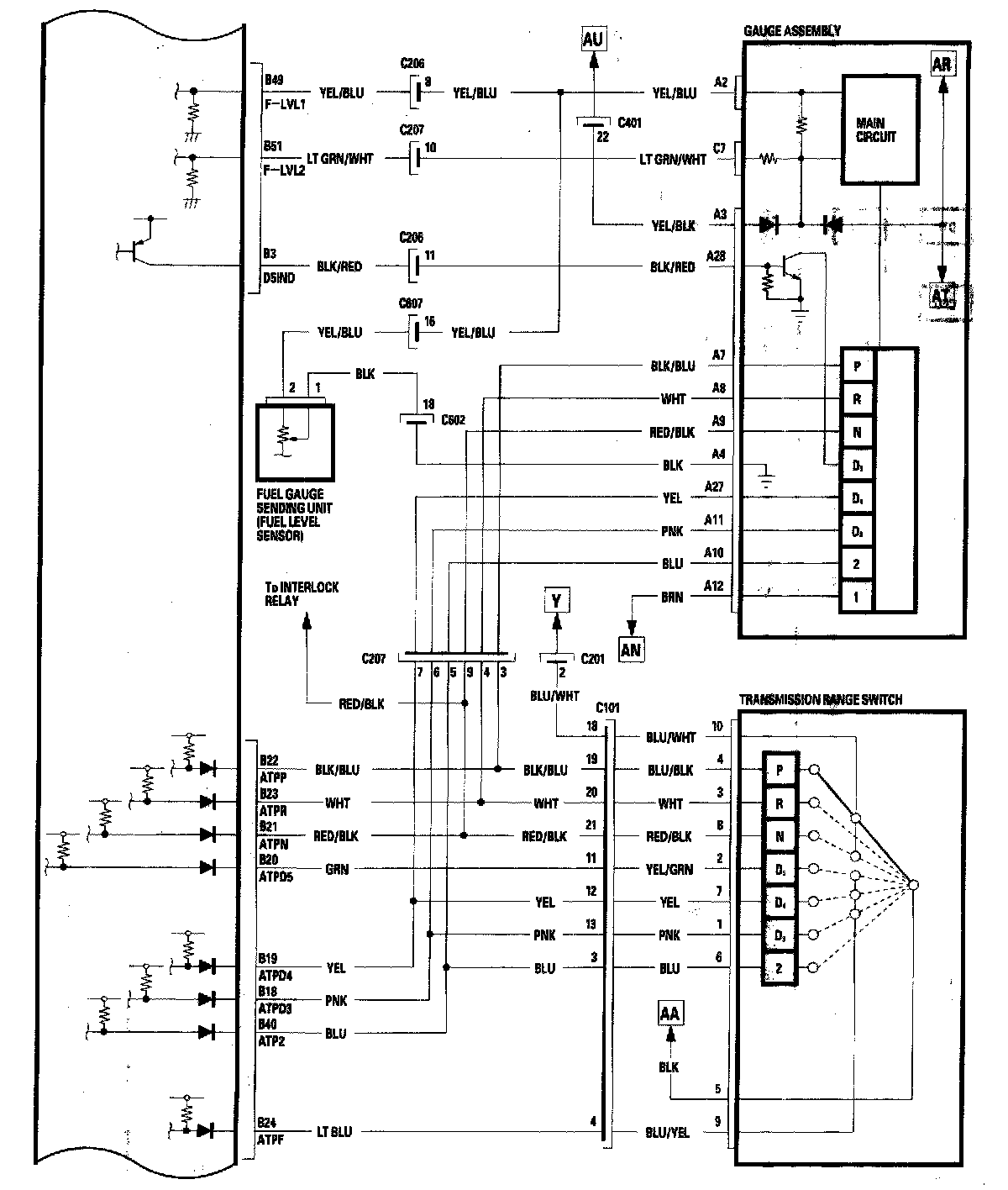

PCM Circuit Diagram 11-75:

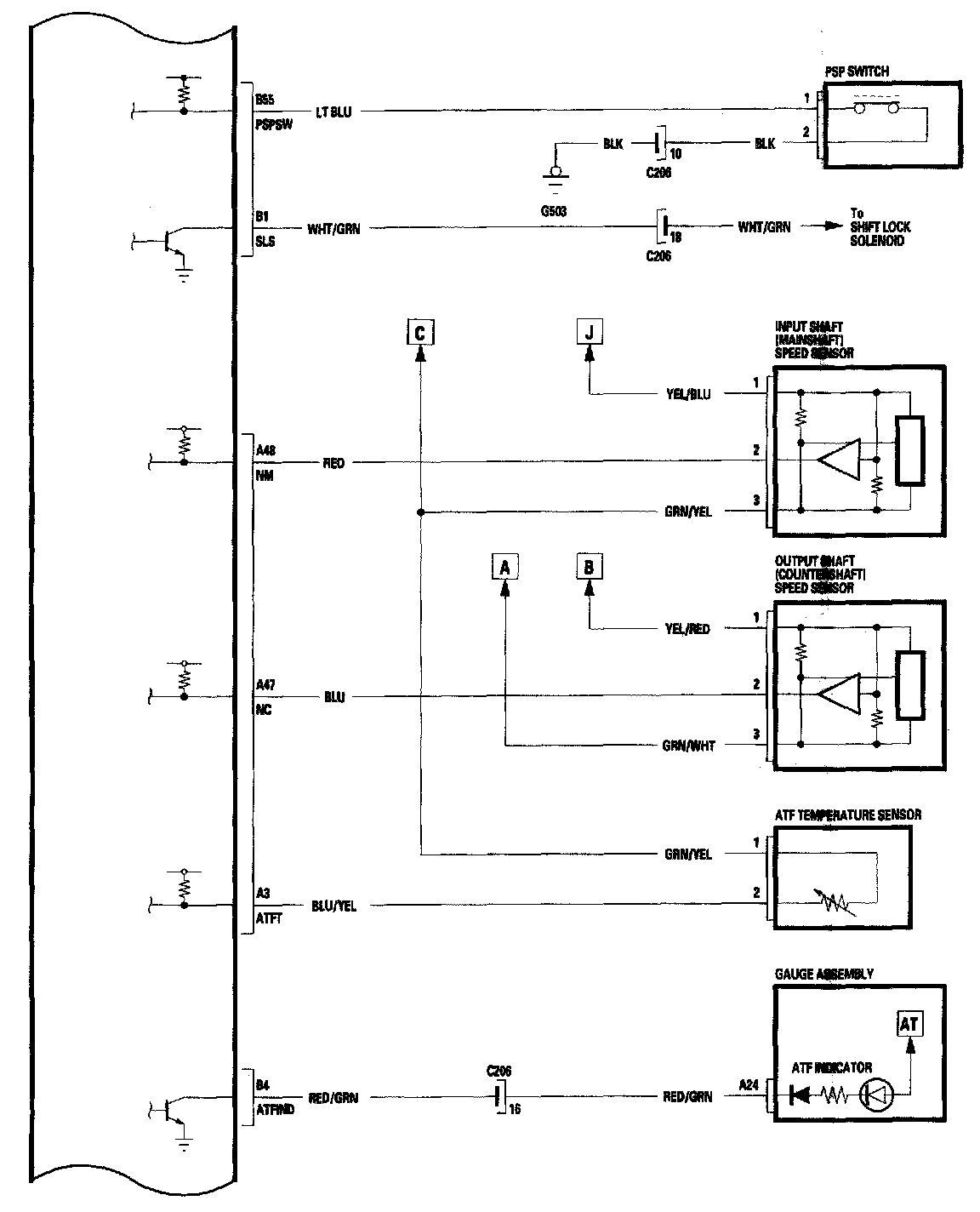

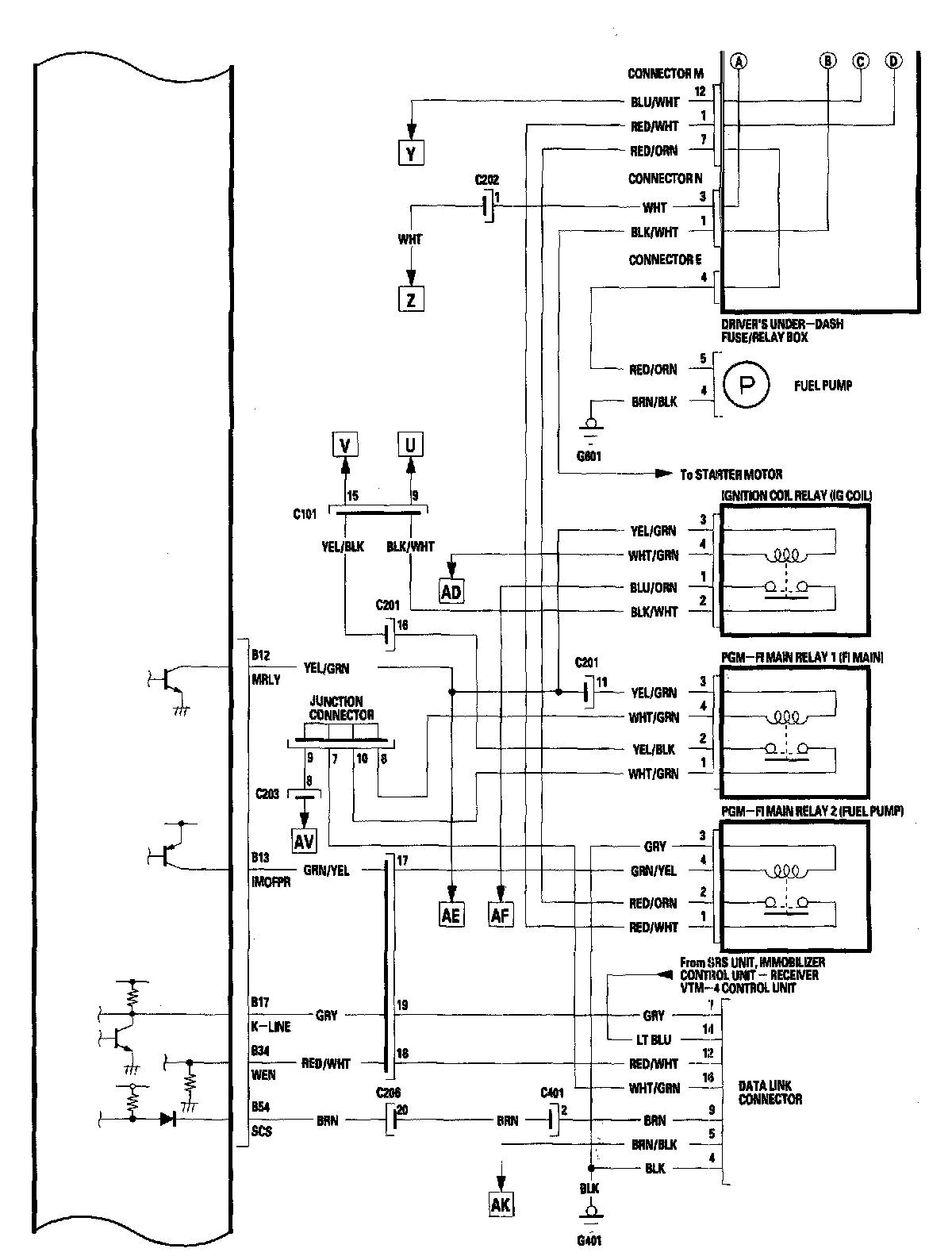

PCM Circuit Diagram 11-76:

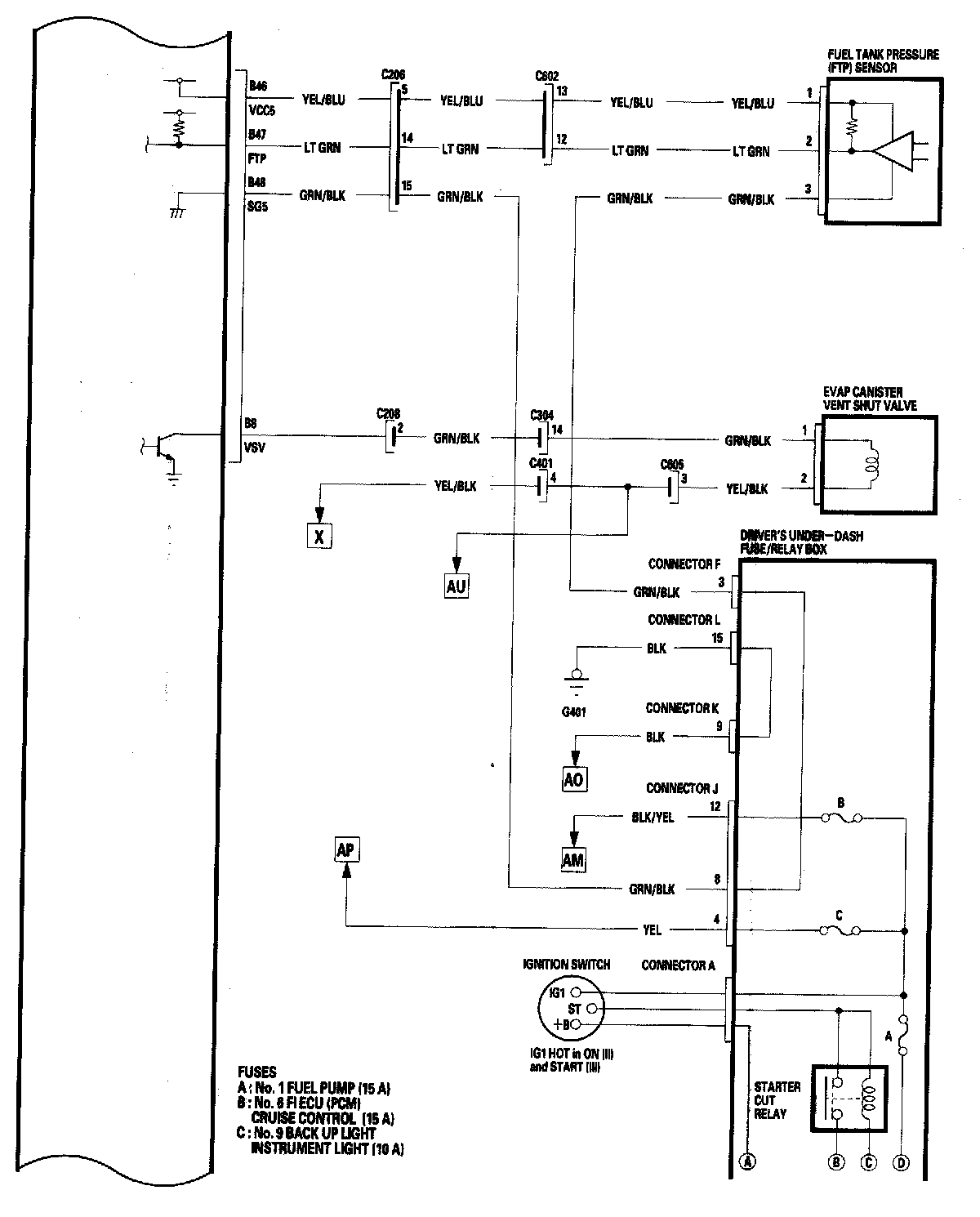

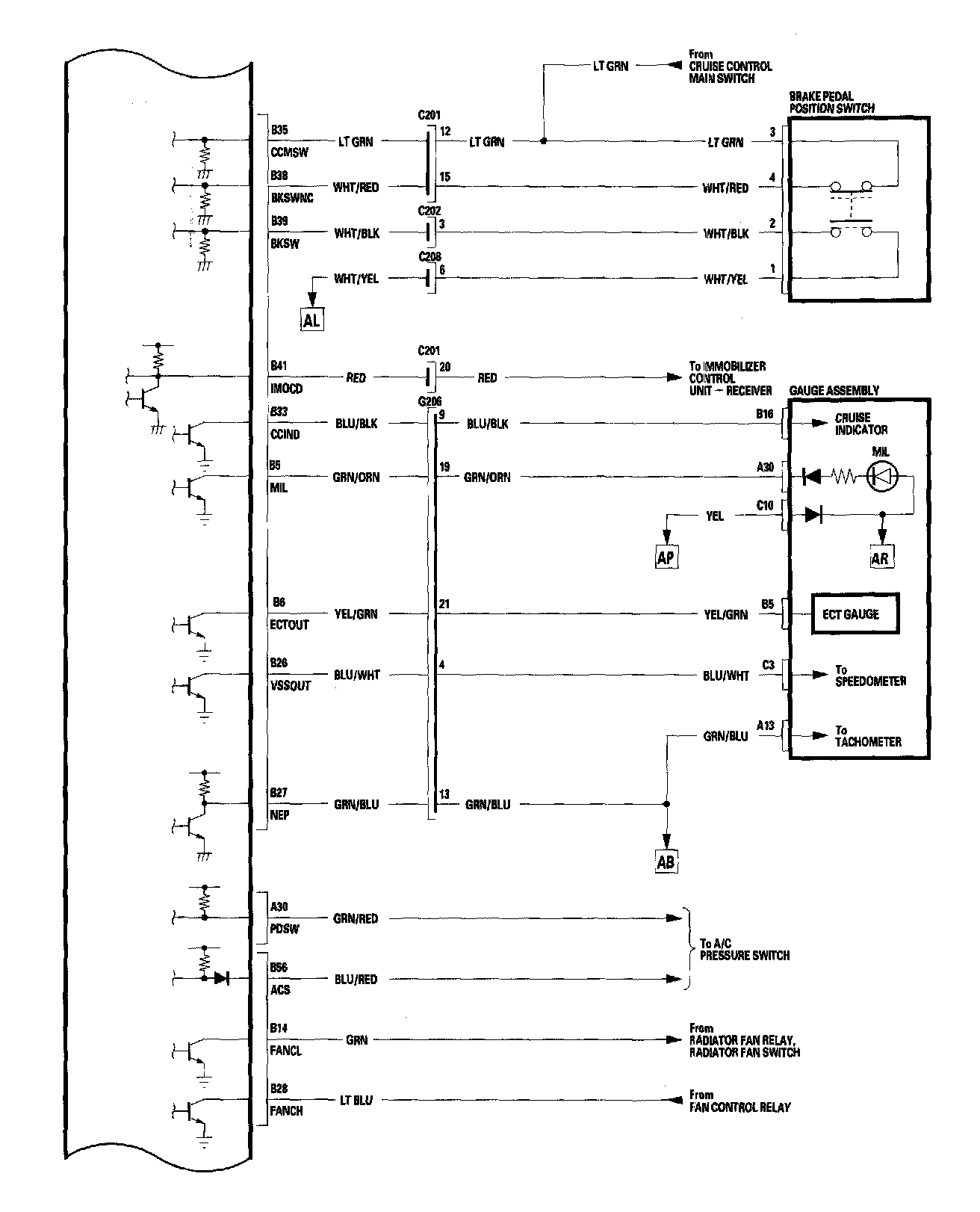

PCM Circuit Diagram 11-77:

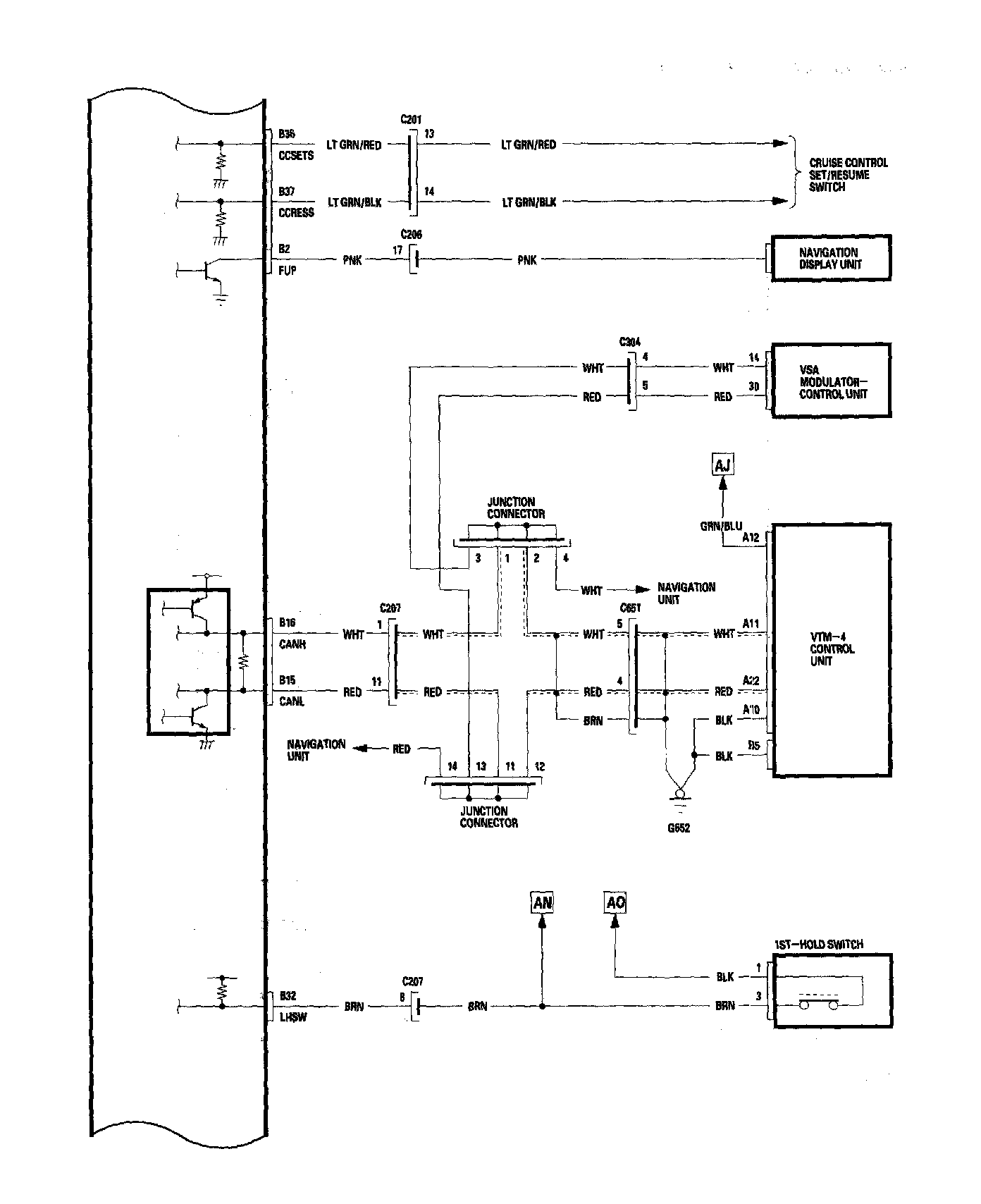

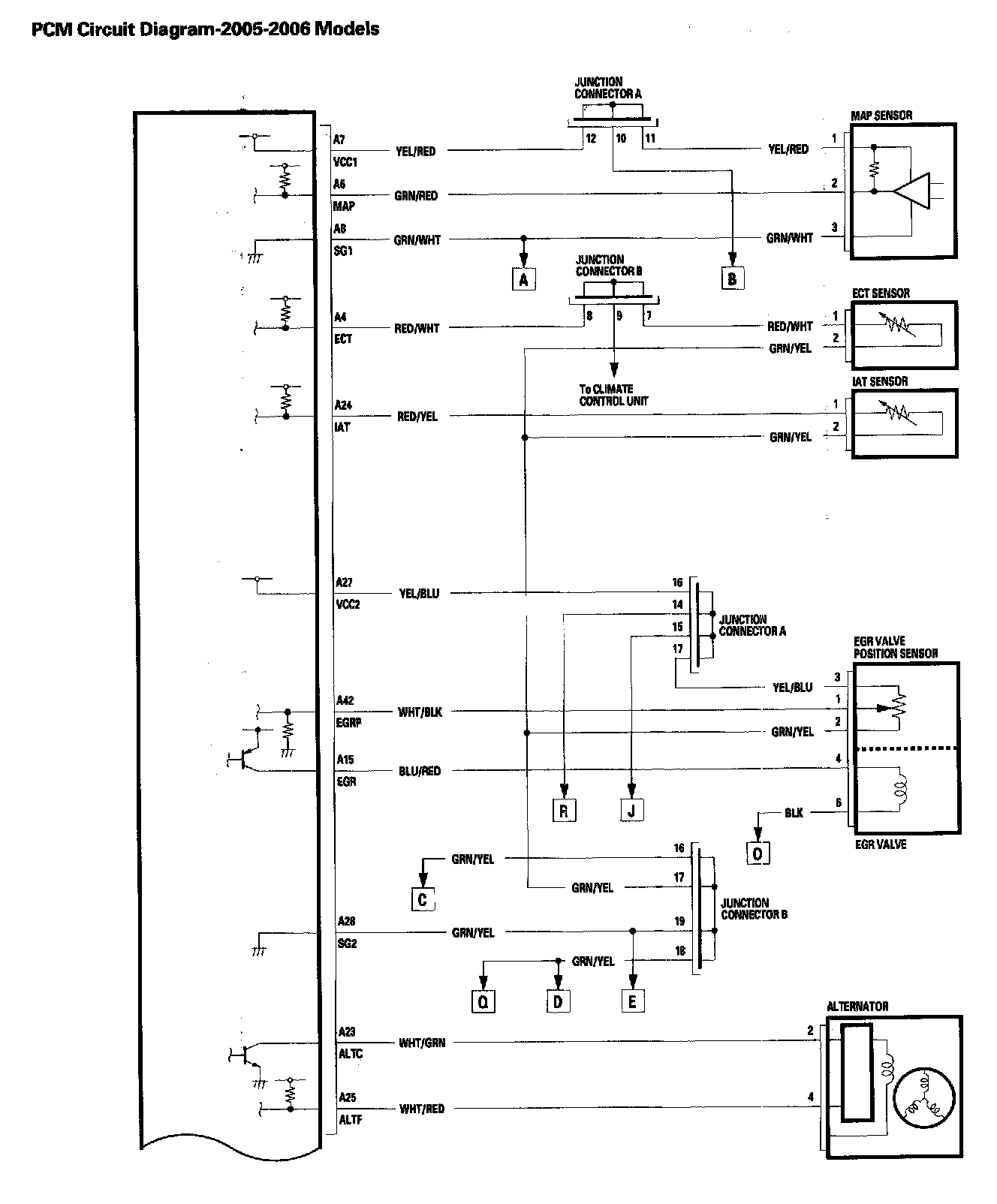

PCM Circuit Diagram 11-78:

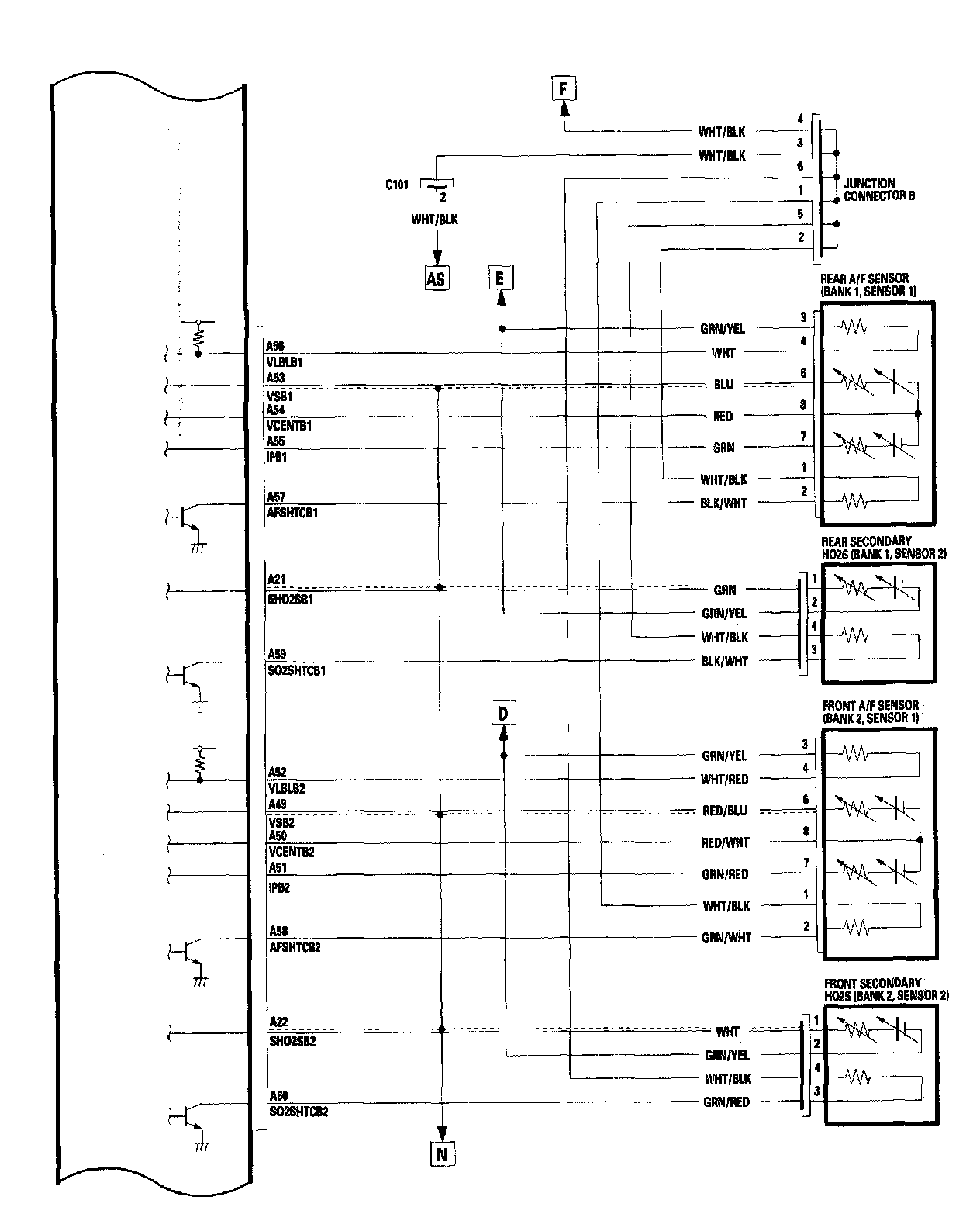

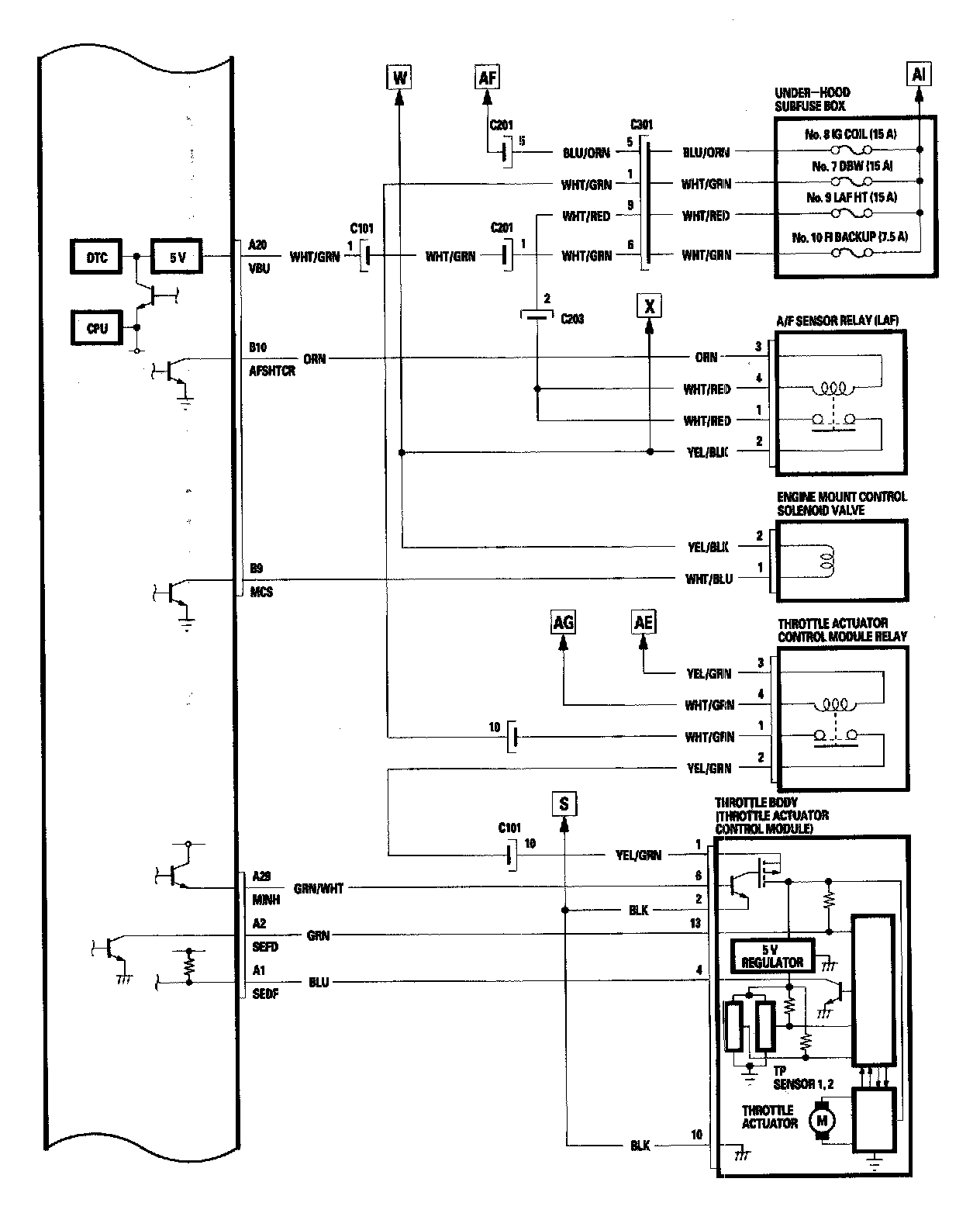

PCM Circuit Diagram 11-79:

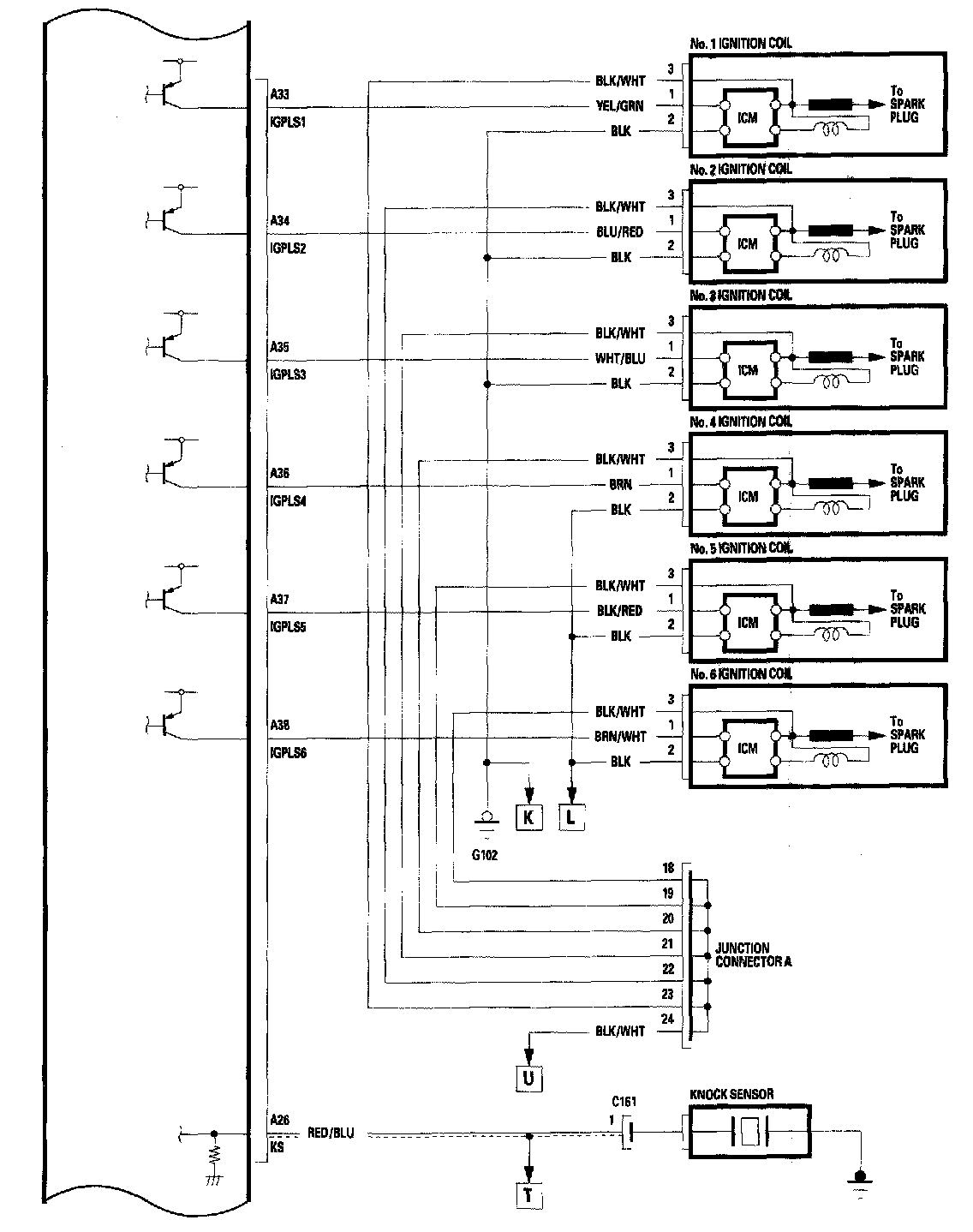

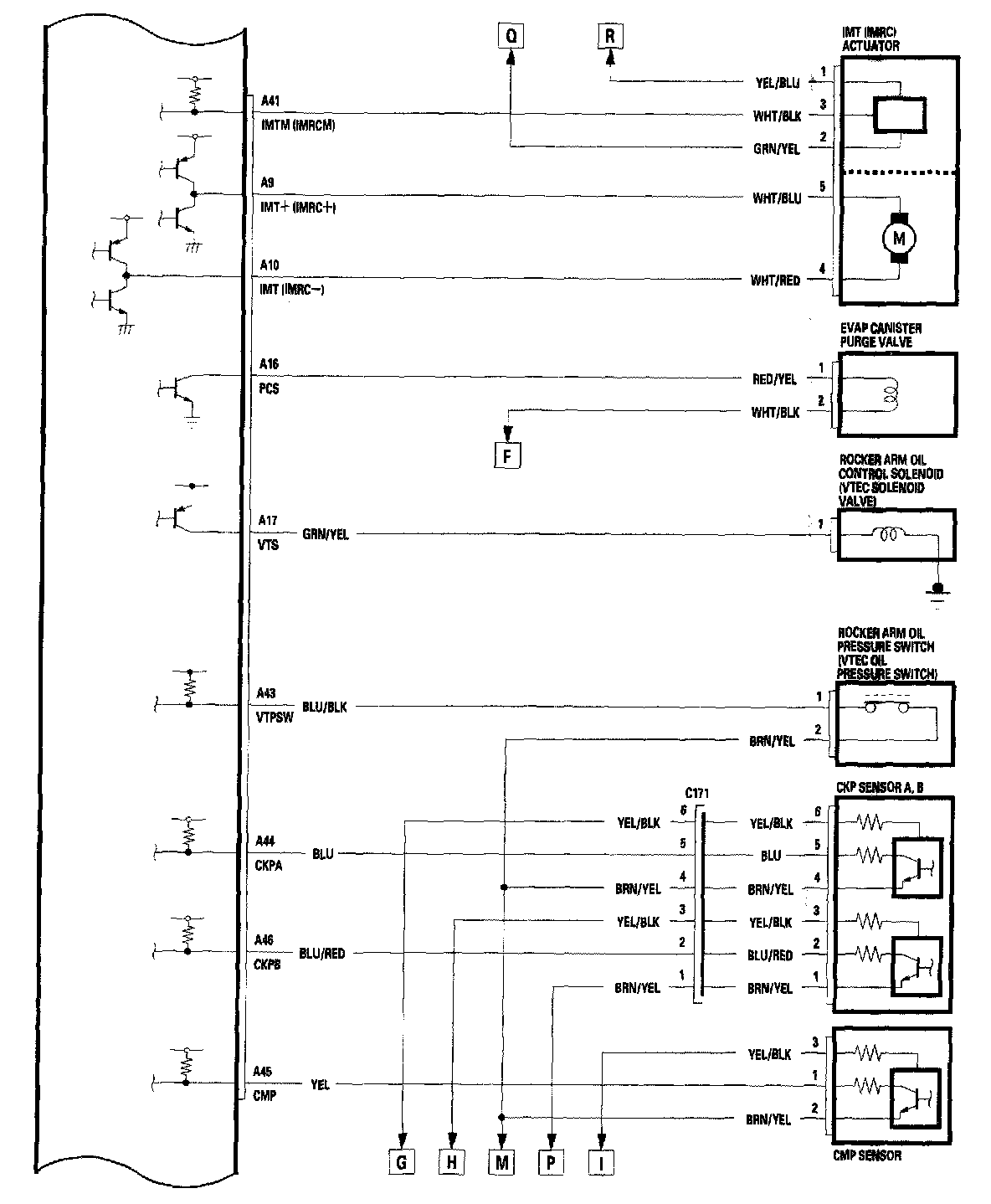

PCM Circuit Diagram 11-80:

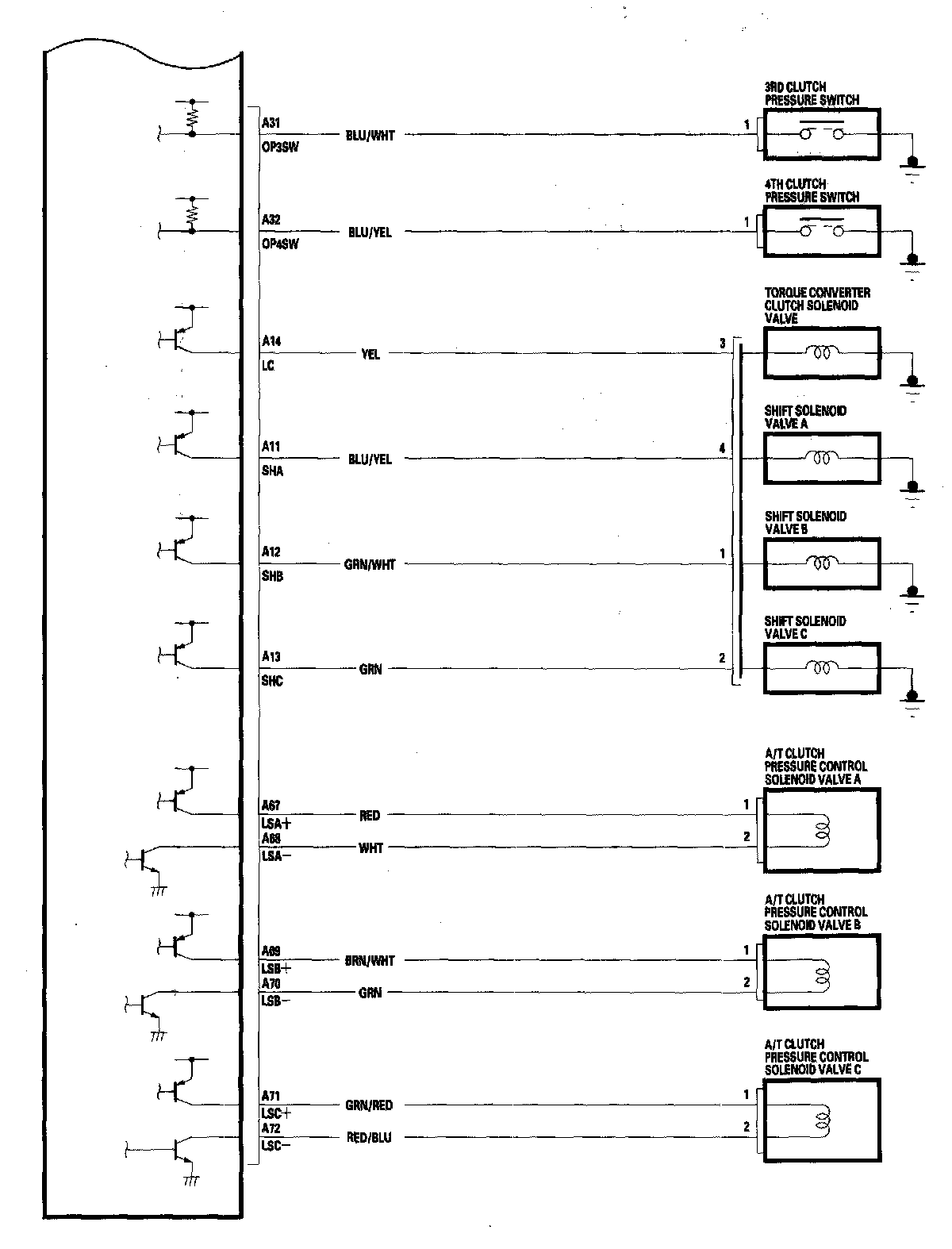

PCM Circuit Diagram 11-81:

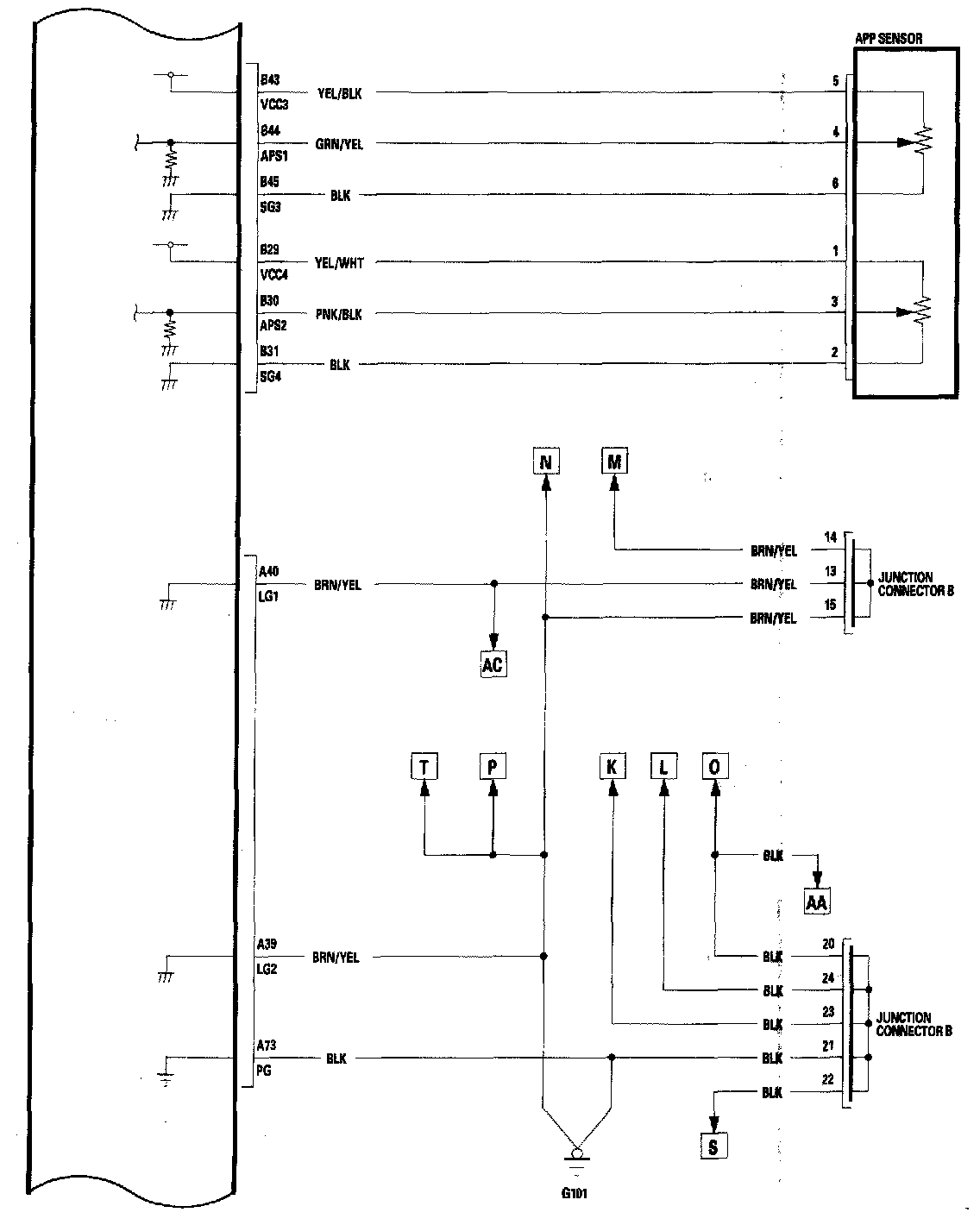

PCM Circuit Diagram 11-82:



PCM Circuit Diagram 11-83:



PCM Circuit Diagram 11-84:



PCM Circuit Diagram 11-85:



PCM Circuit Diagram 11-86:



PCM Circuit Diagram 11-87:



PCM Circuit Diagram 11-88:



PCM Circuit Diagram 11-89:
