System Diagram

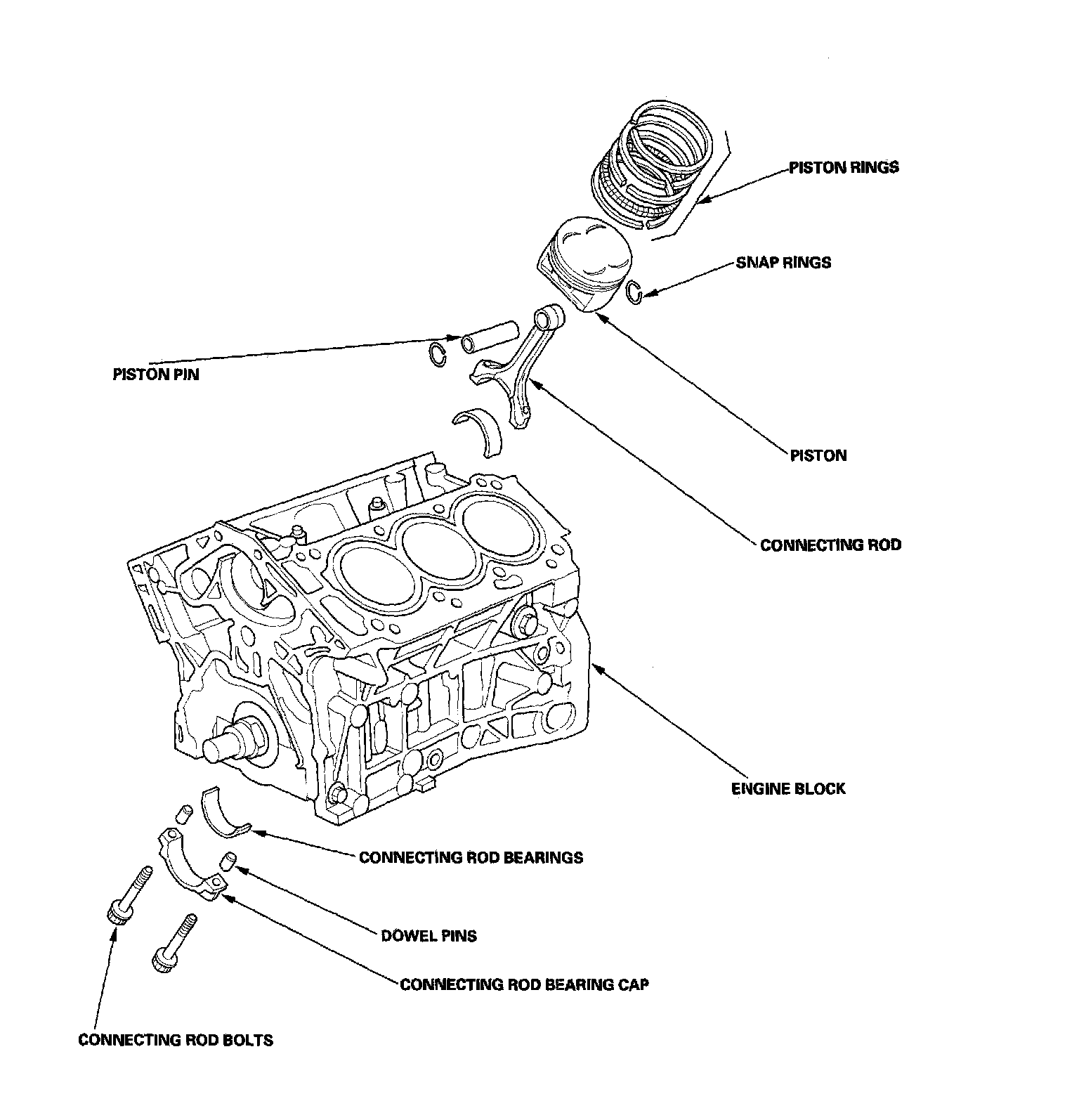

Engine Block Component Location Index:

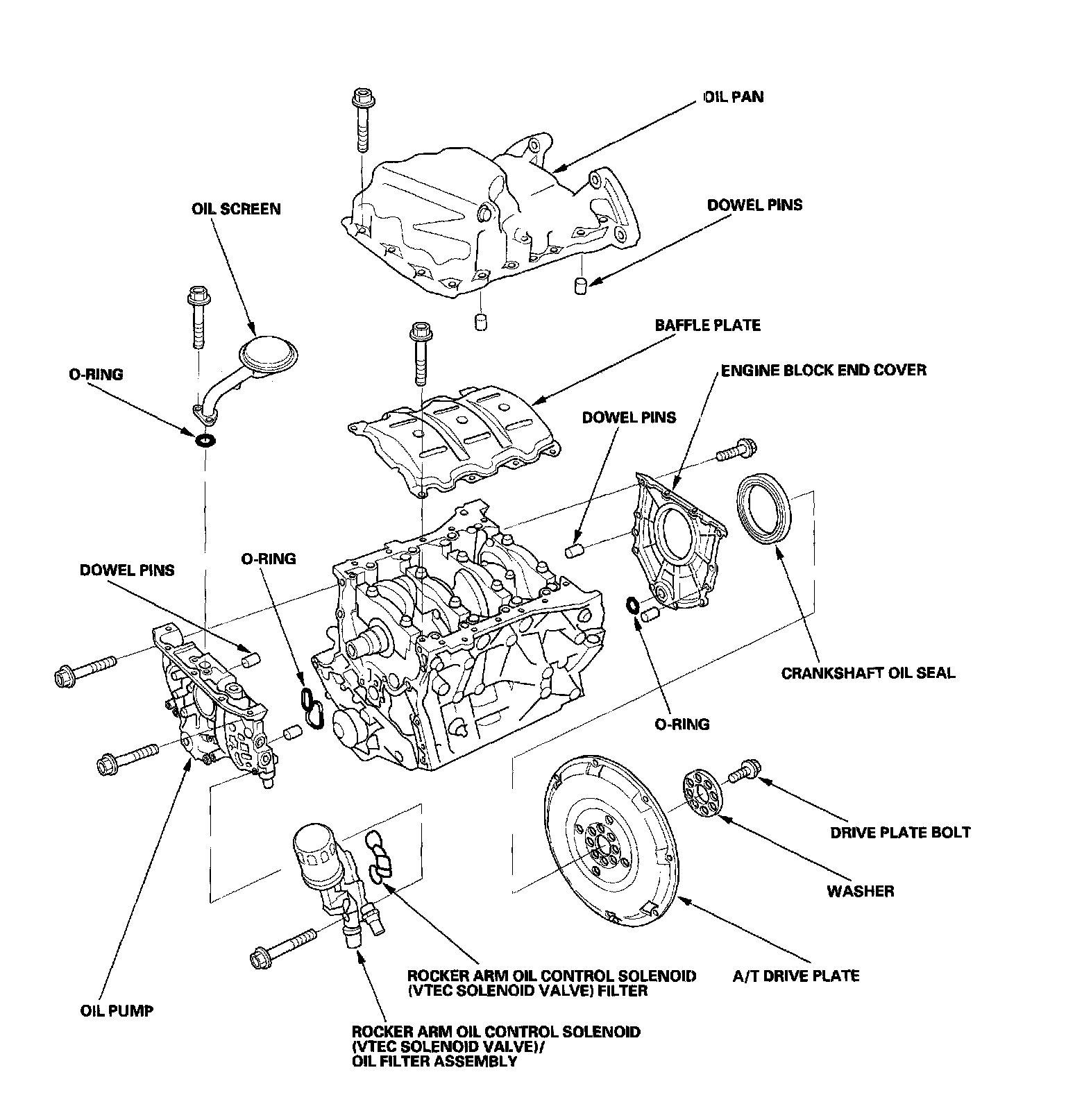

Engine Block Component Location Index:

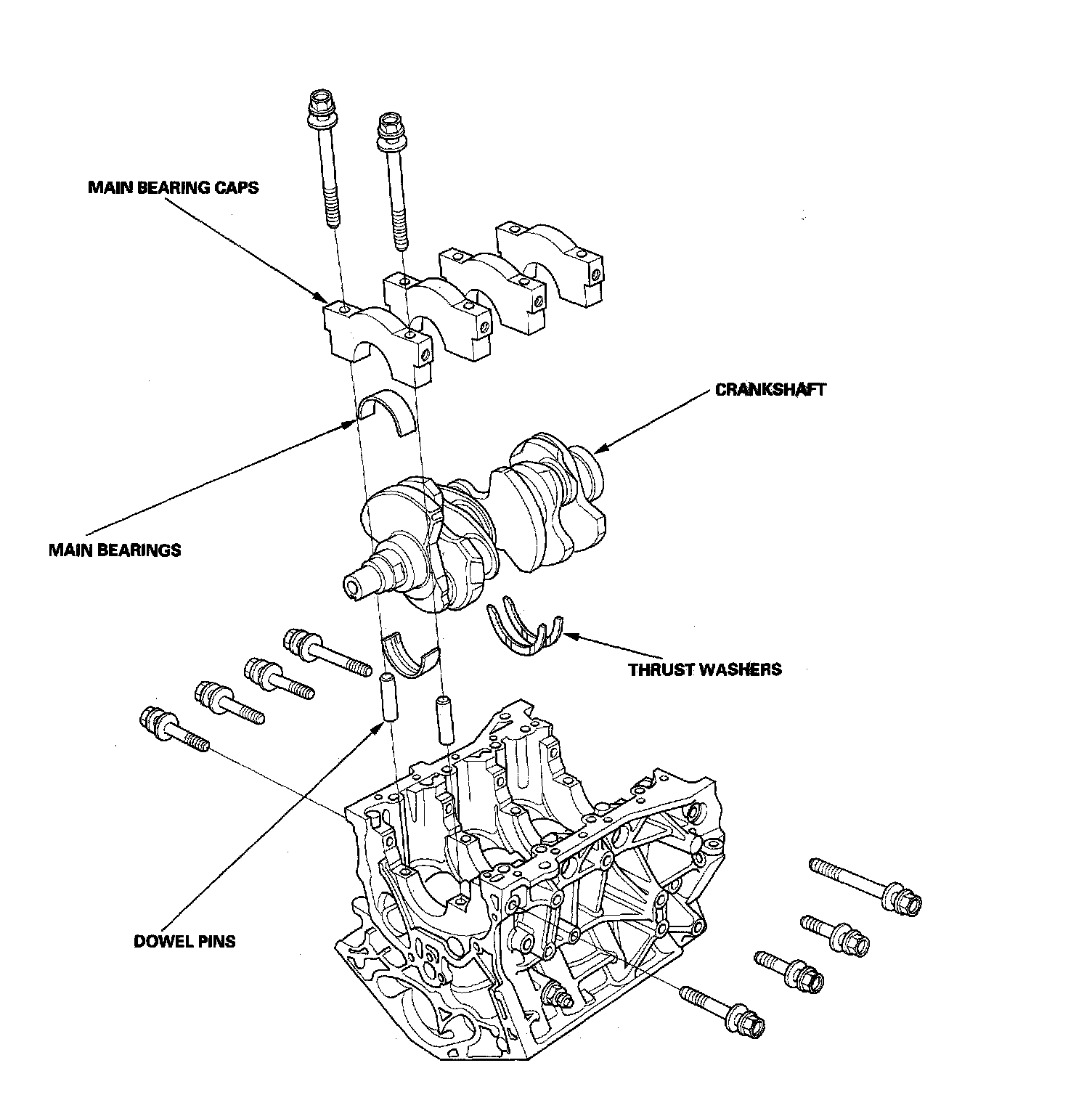

Engine Block Component Location Index:
