Connector Views

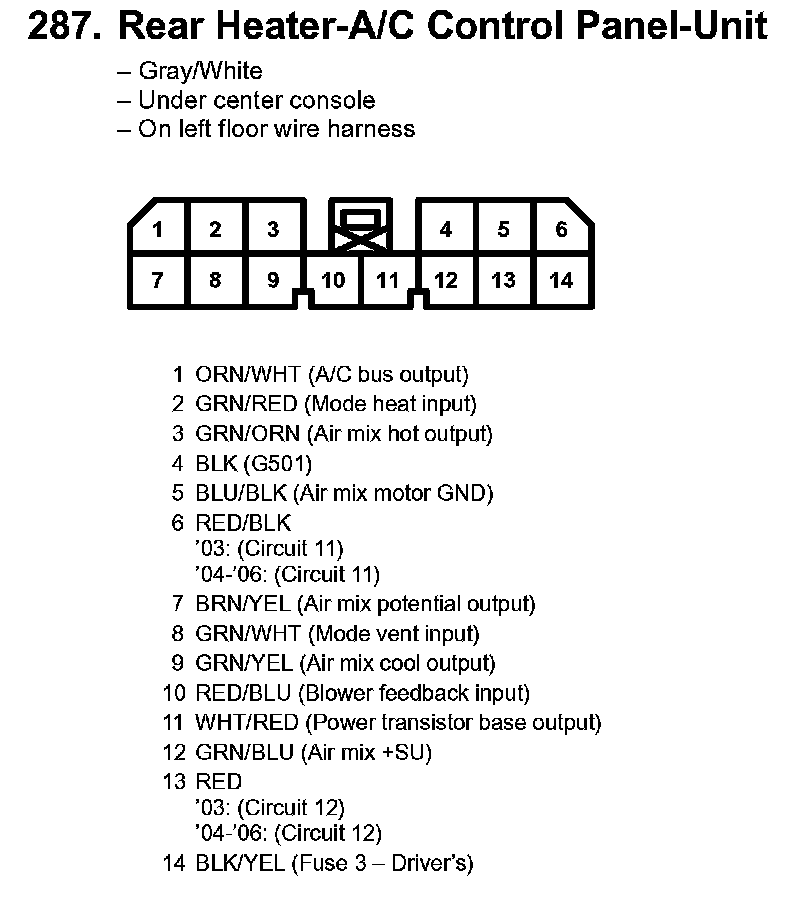

287. Rear Heater-A/C Control Panel-Unit:

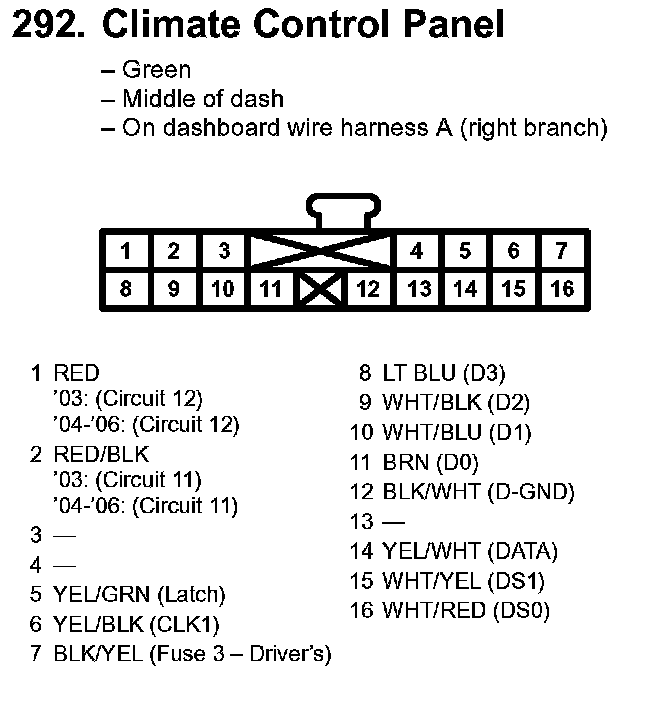

292. Climate Control Panel:

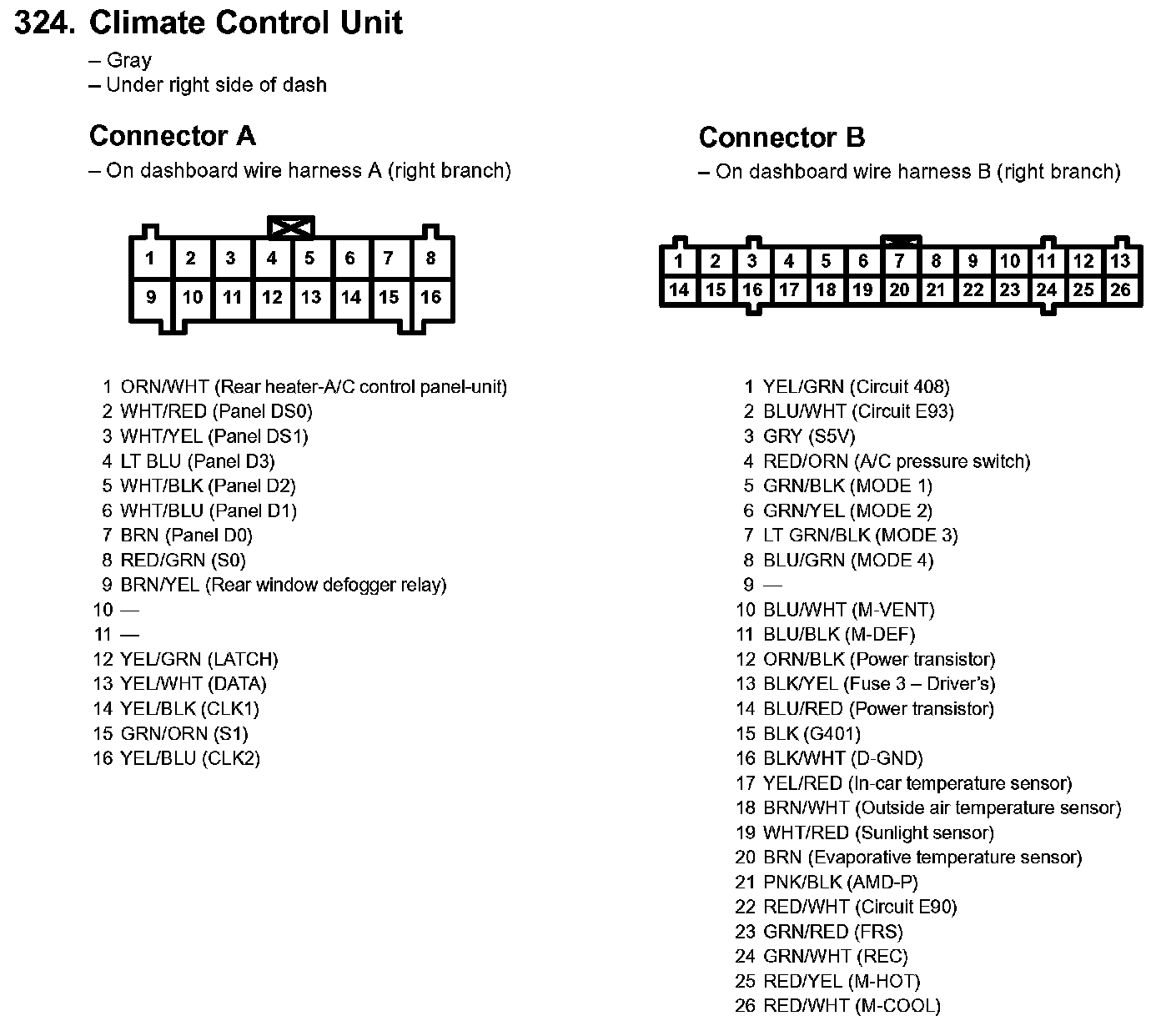

324. Climate Control Unit:
