Lamp Control Module: Locations

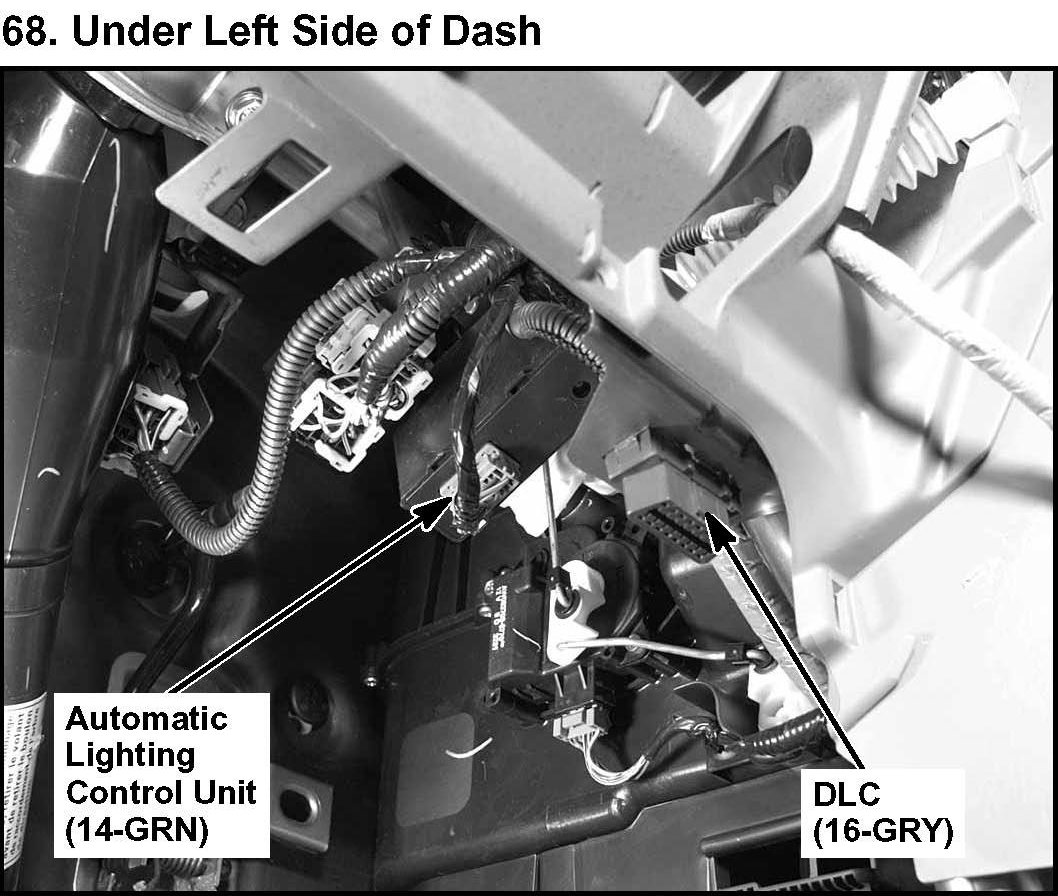

68. Under Left Side of Dash:

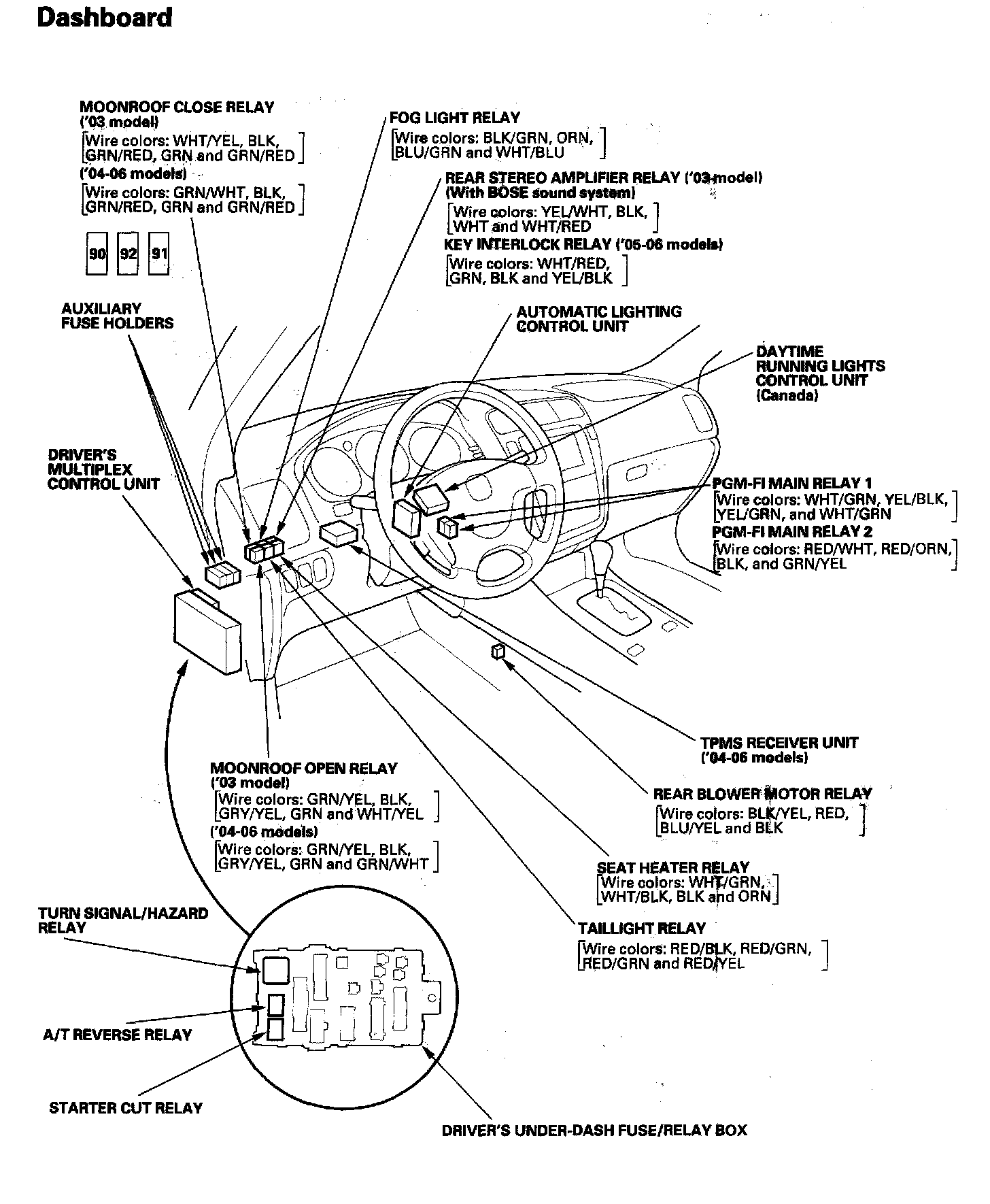

Relay And Control Unit Locations - Dashboard Part 1:
