Multiplex Control System Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Multiplex Control System Circuit Diagram

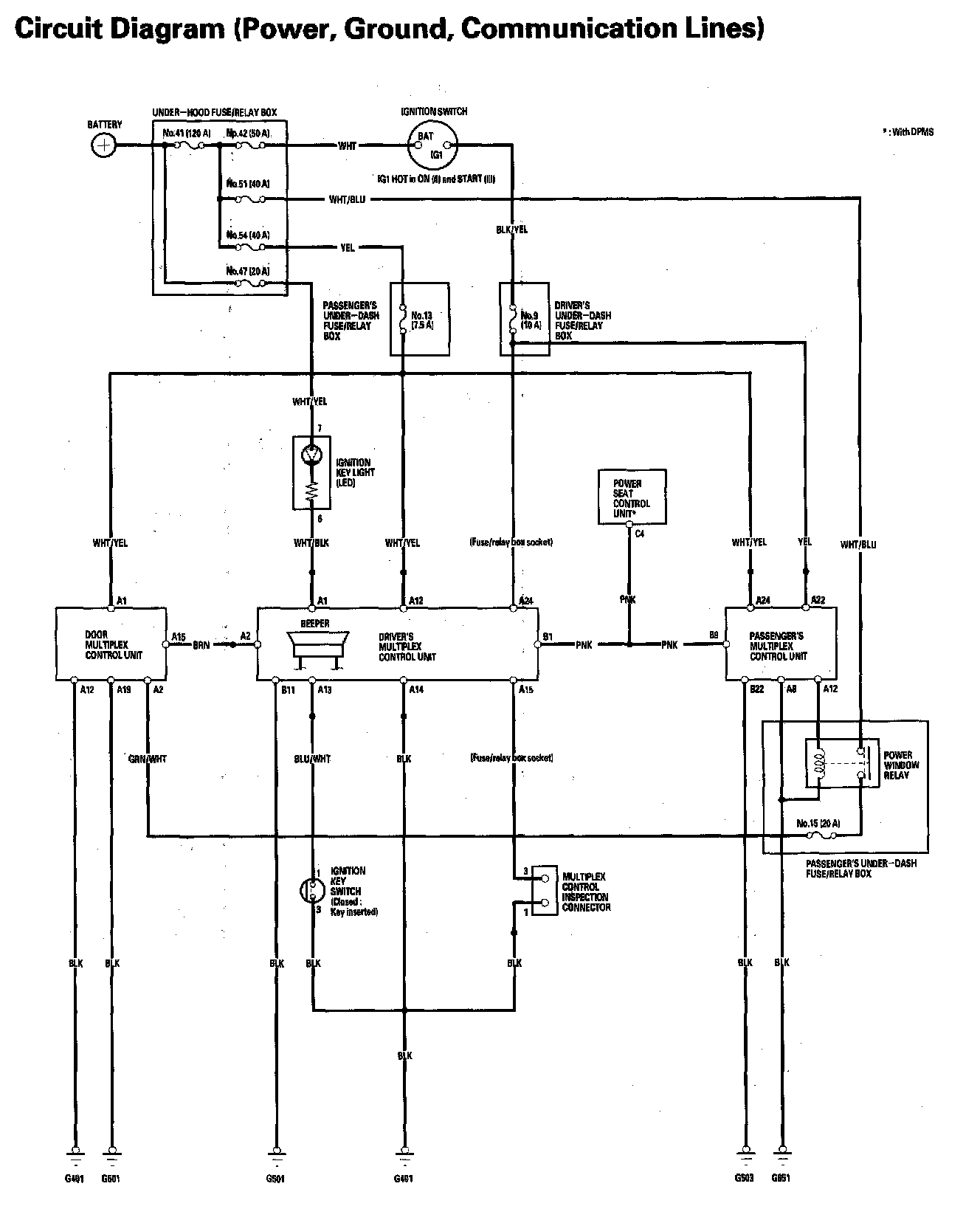

Circuit Diagram - (Power, Ground, Communication Lines):
