Ignition Relay: Diagrams

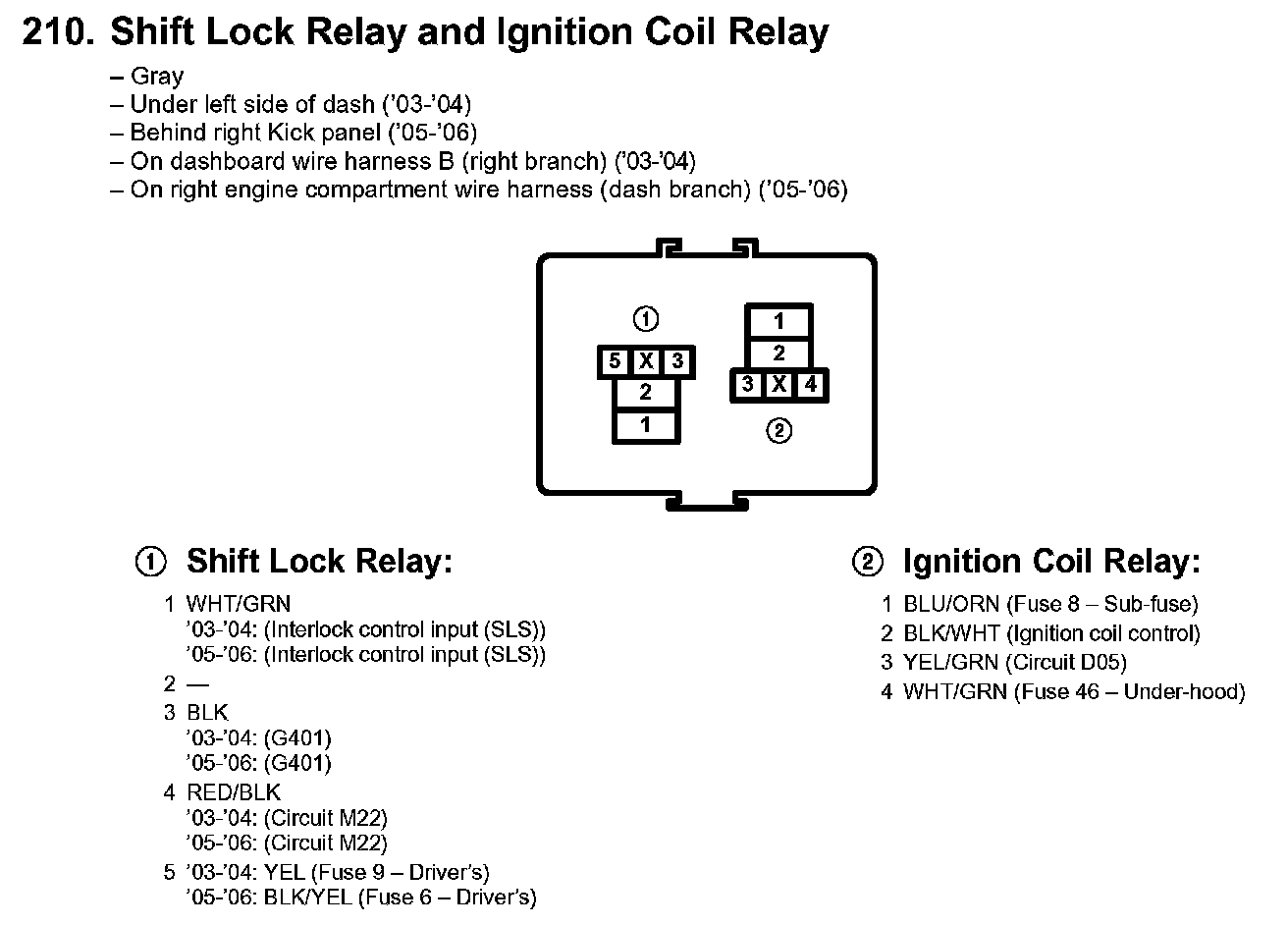

210. Shift Lock Relay And Ignition Coil Relay:

400. Key Interlock Relay and Seat Heater Relay:
