Wiper Control Module: Locations

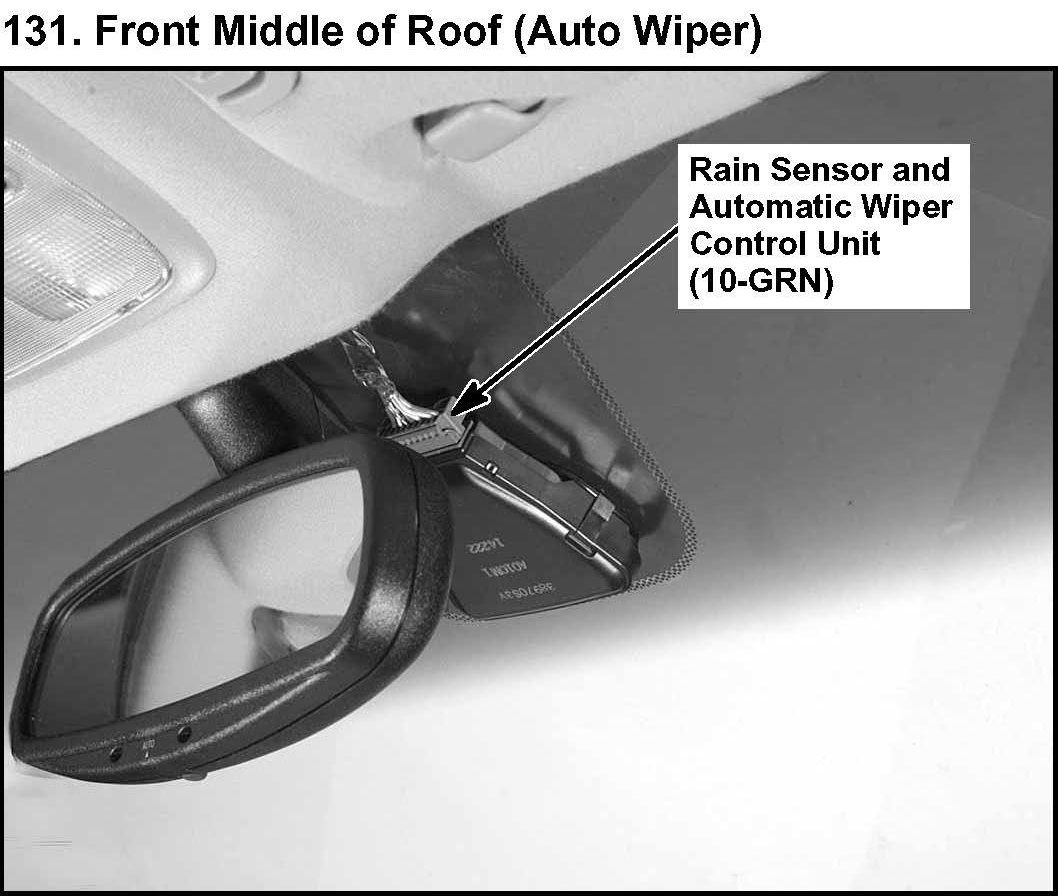

131. Front Middle of Roof (Auto Wiper):

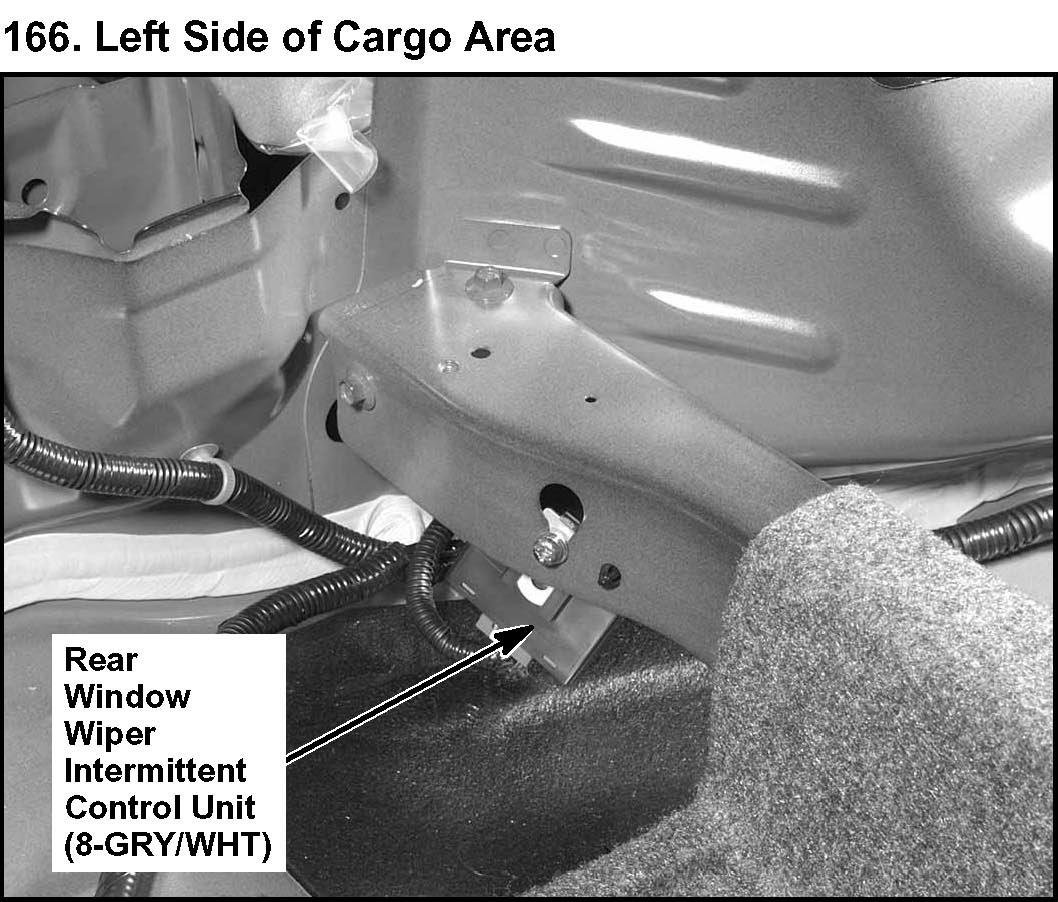

166. Left Side of Cargo Area:



Relay And Control Unit Locations - Door, Rear Side Trim And Roof:

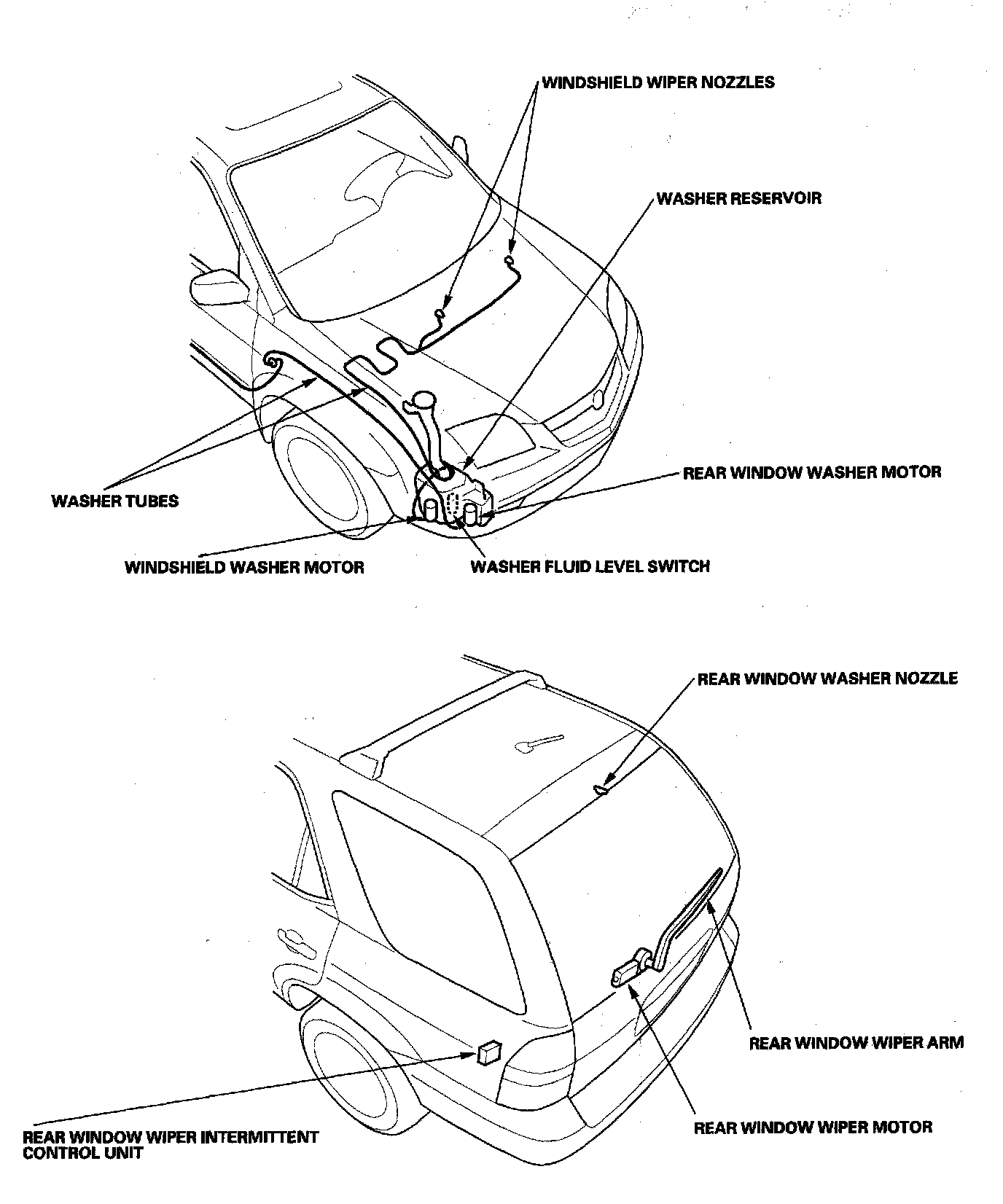

Wipers/Washers - Component Location Index:
