Power Window Switch: Locations

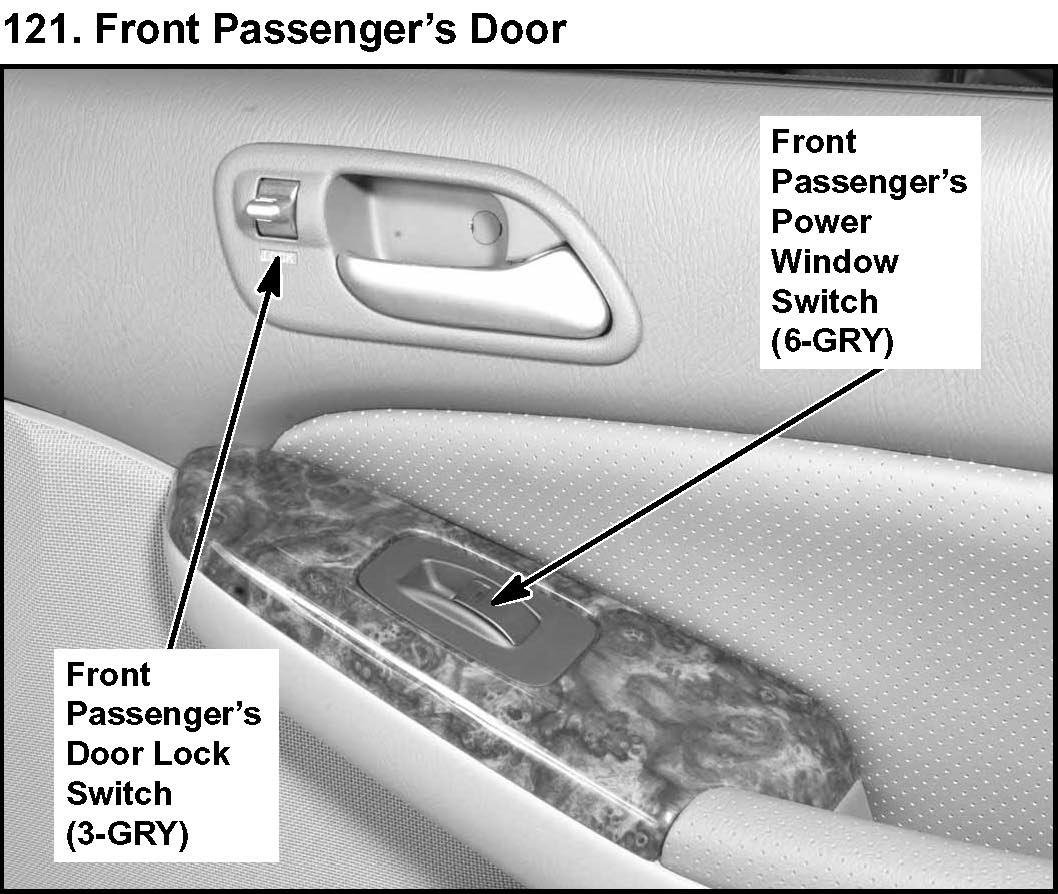

121. Front Passenger's Door:

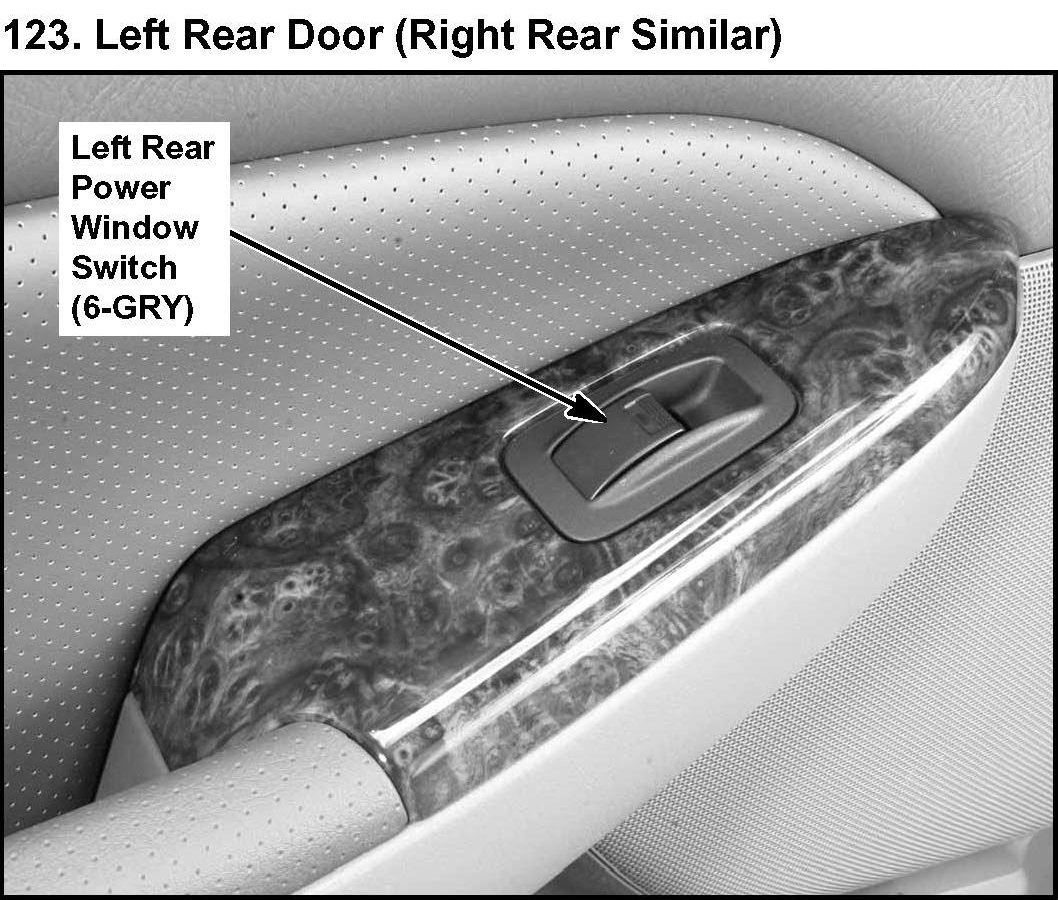

123. Left Rear Door (Right Rear Similar):



Power Windows - Component Location Index:

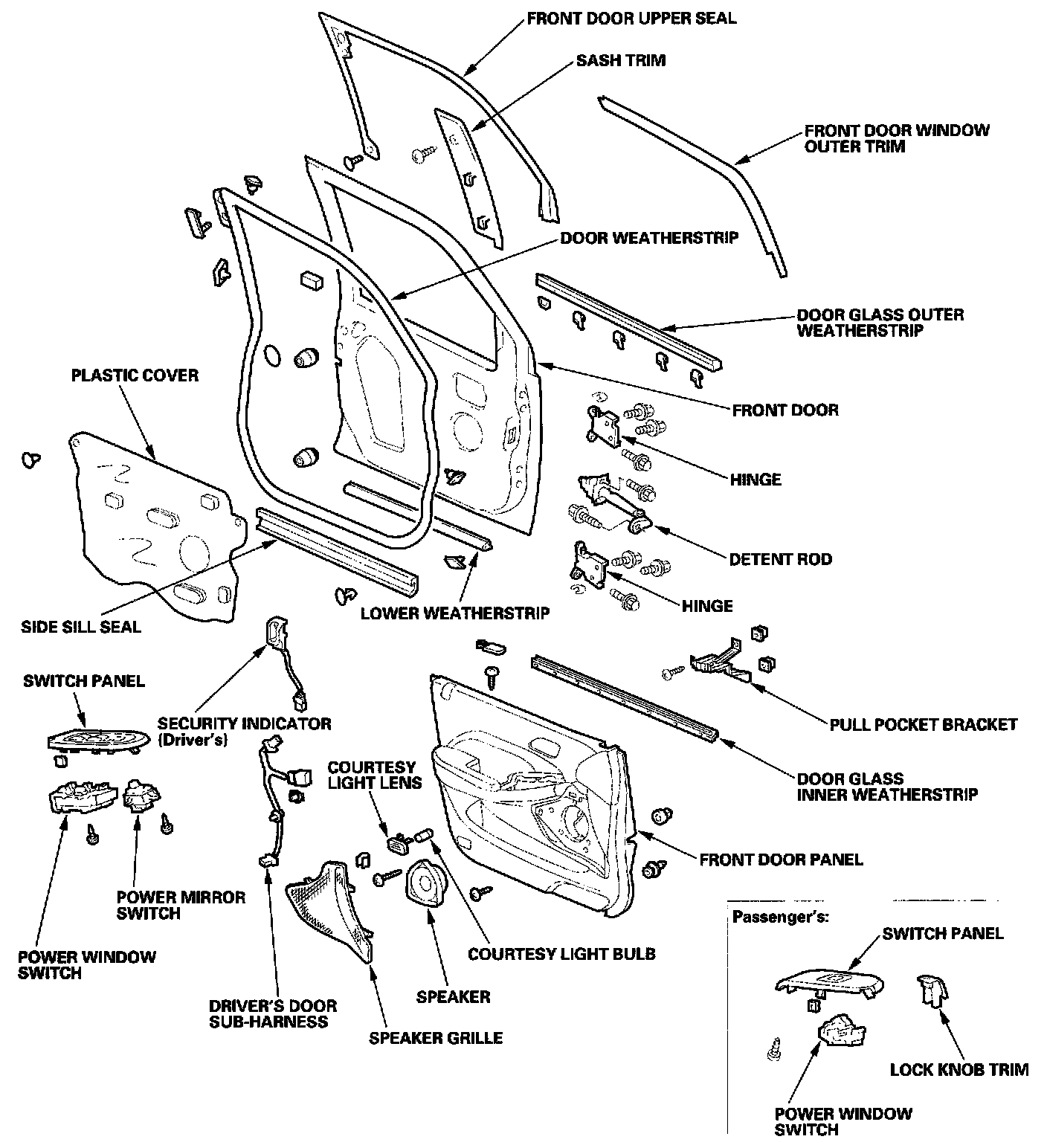

Front Door Component Location Index:
