Power Window Switch

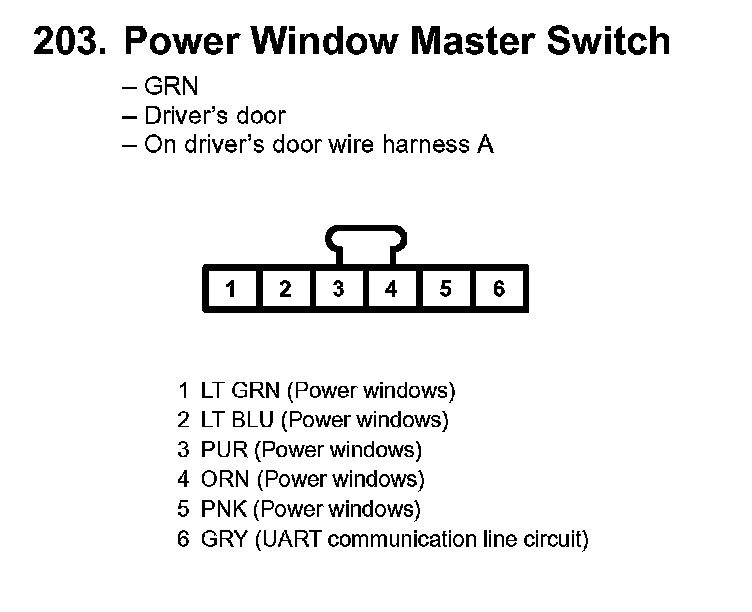

203. Power Window Master Switch:

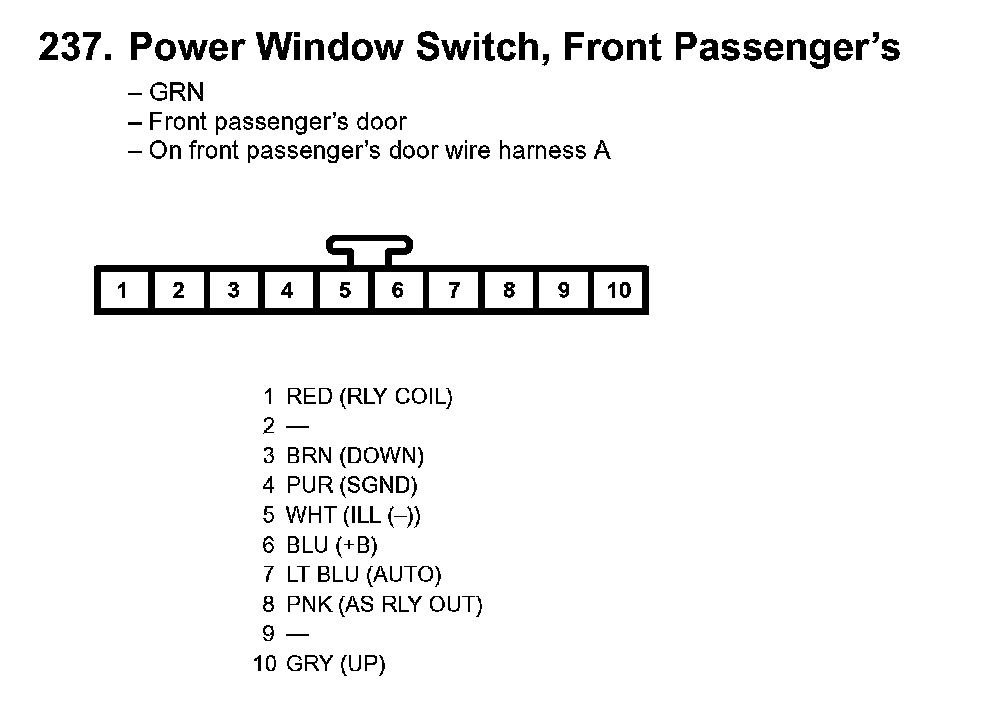

237. Power Window Switch, Front Passenger's:

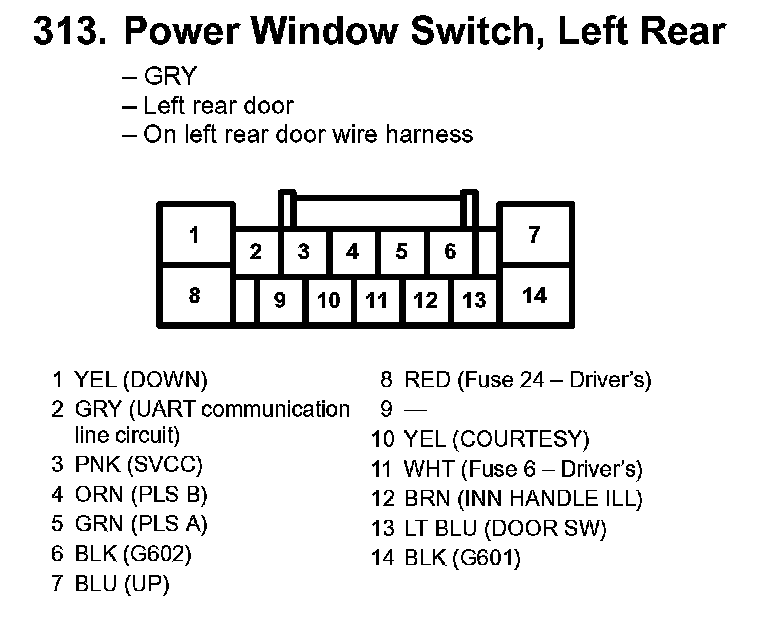

313. Power Window Switch, Left Rear:

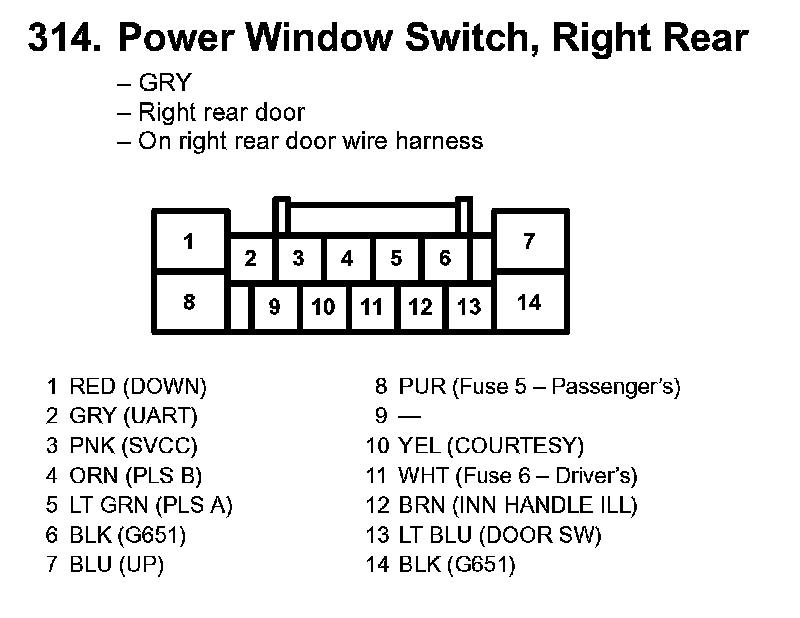

314. Power Window Switch, Right Rear:
