Accelerator Pedal Module Removal/Installation

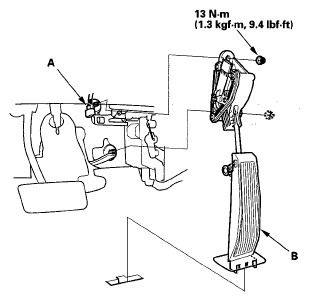

- Disconnect the APP sensor connector (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Release the lock tab on the base of the accelerator pedal, then remove the accelerator pedal module (B).
- Install the parts in the reverse order of removal.
