Rear Subframe Torque

After removing the subframe mounting bolts, be sure to replace them with new ones.

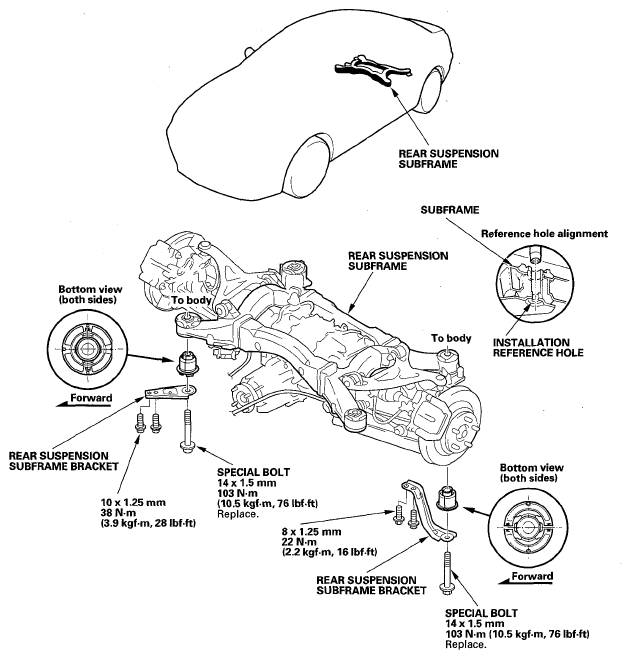

Fig 1: Rear Subframe Replacement Components With Torque Specifications
G05496527Courtesy of AMERICAN HONDA MOTOR CO., INC.
