EVAP Canister Replacement

Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).
Remove the rear differential (see REAR DIFFERENTIAL REMOVAL ).
Disconnect the connectors (A) and the hoses (B).

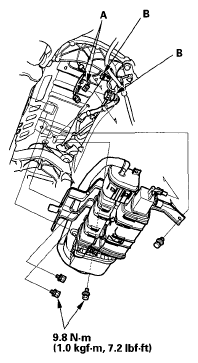

Fig 1: Connectors, Hoses And EVAP Canister With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister (A).

Fig 2: EVAP Canister With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
