Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement 2005-2006 models

1. Remove the EVAP canister.

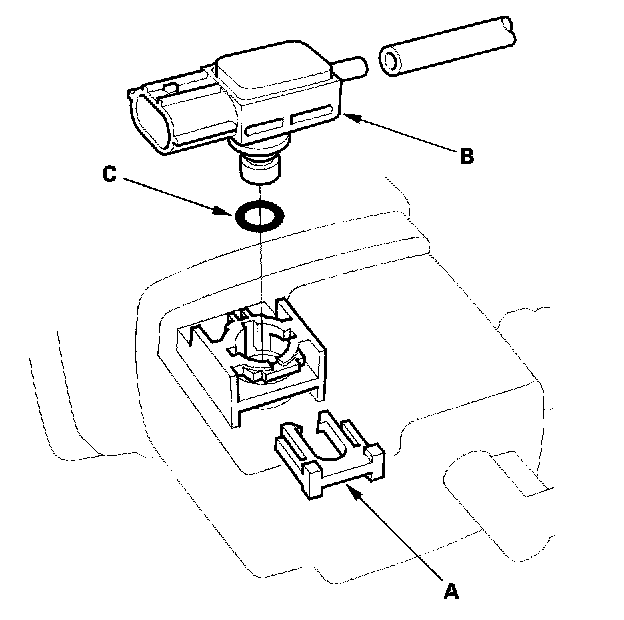

2. Remove the retaining clip (A).
3. Remove the FTP sensor (B).
4. Install the sensor in the reverse order of removal with a new O-ring (C).
