Information Bus: Locations

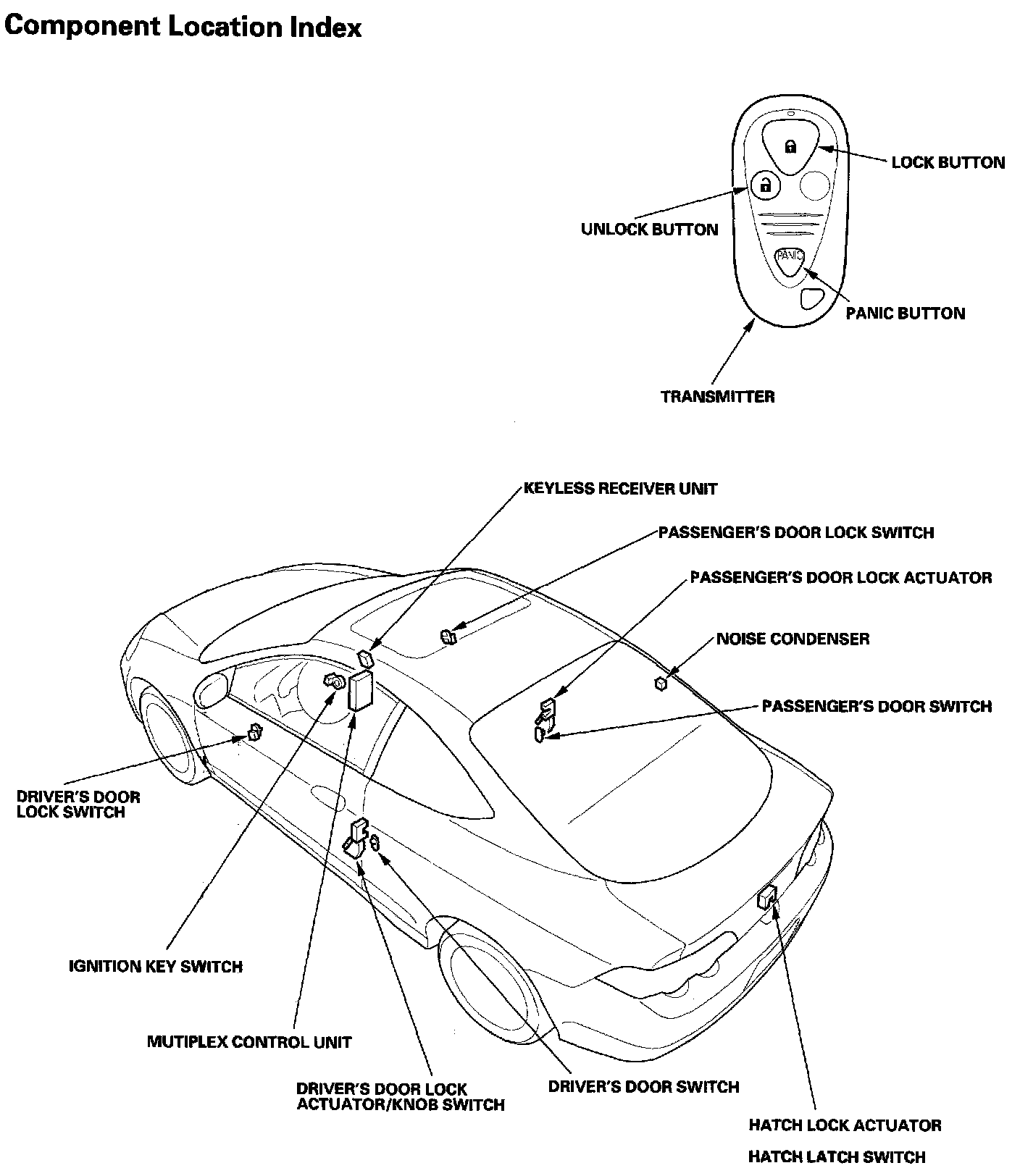

Keyless/Power Door Lock System - Component Location Index:

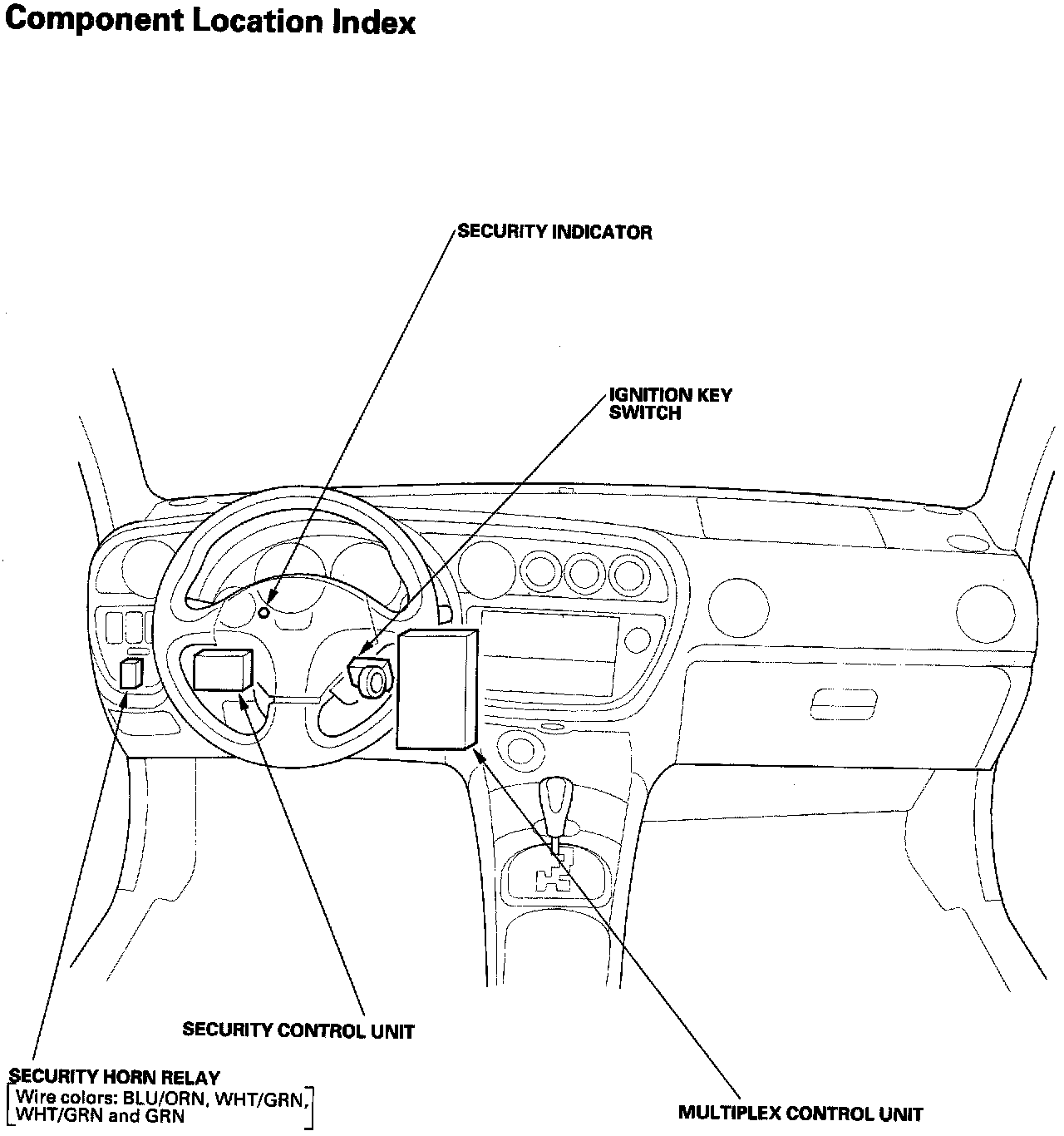

Security Alarm System - Component Location Index:
