Control Module: Service and Repair

How to Remove and Install the PCM
1. Jump the SCS line with the HDS.
2. Remove the dashboard lower cover from under the glove box.
3. Disconnect PCM connectors.

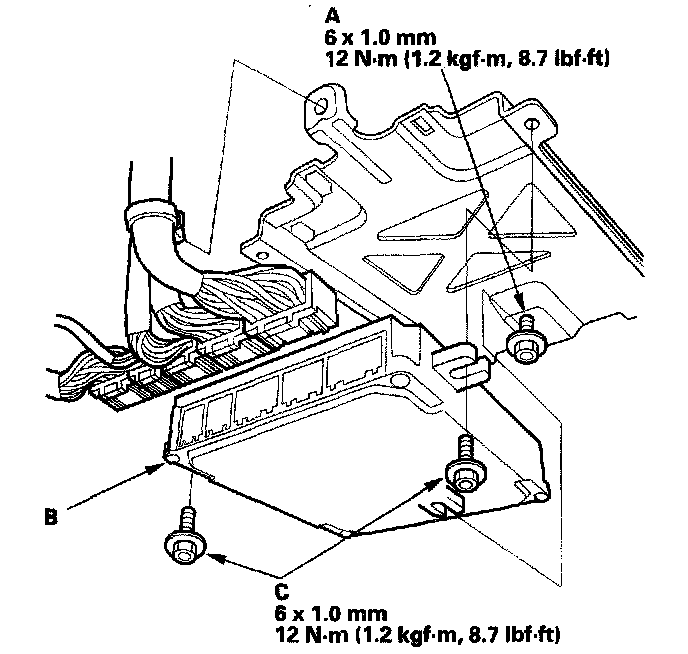

4. Loosen the bolt (A) on the back of the PCM (B), and remove the two bolts (C) and PCM.
5. Install the PCM in the reverse order of the removal.
