Pinout Values and Diagnostic Parameters

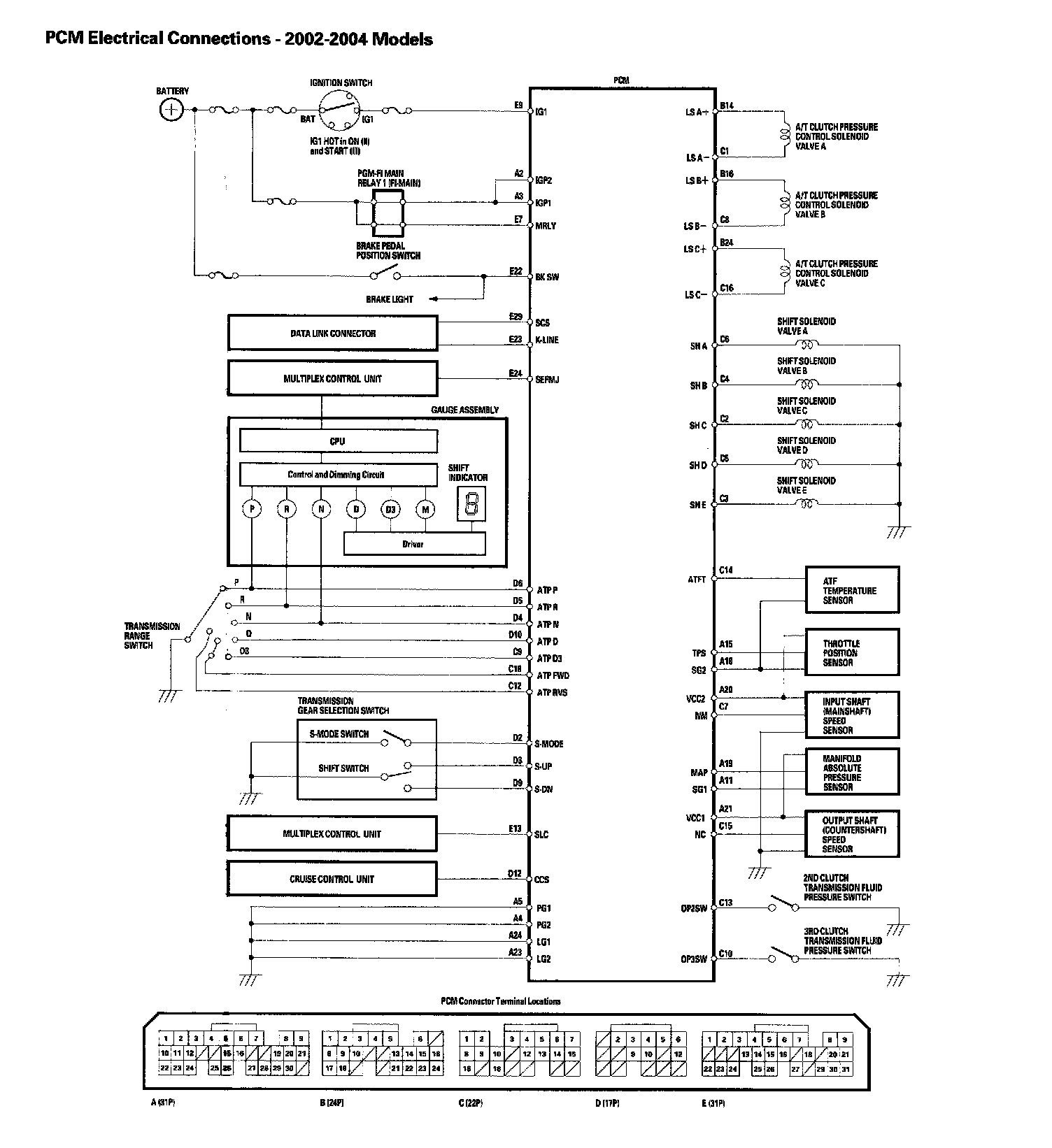

PCM Electrical Connections - 2002-2004 Models:

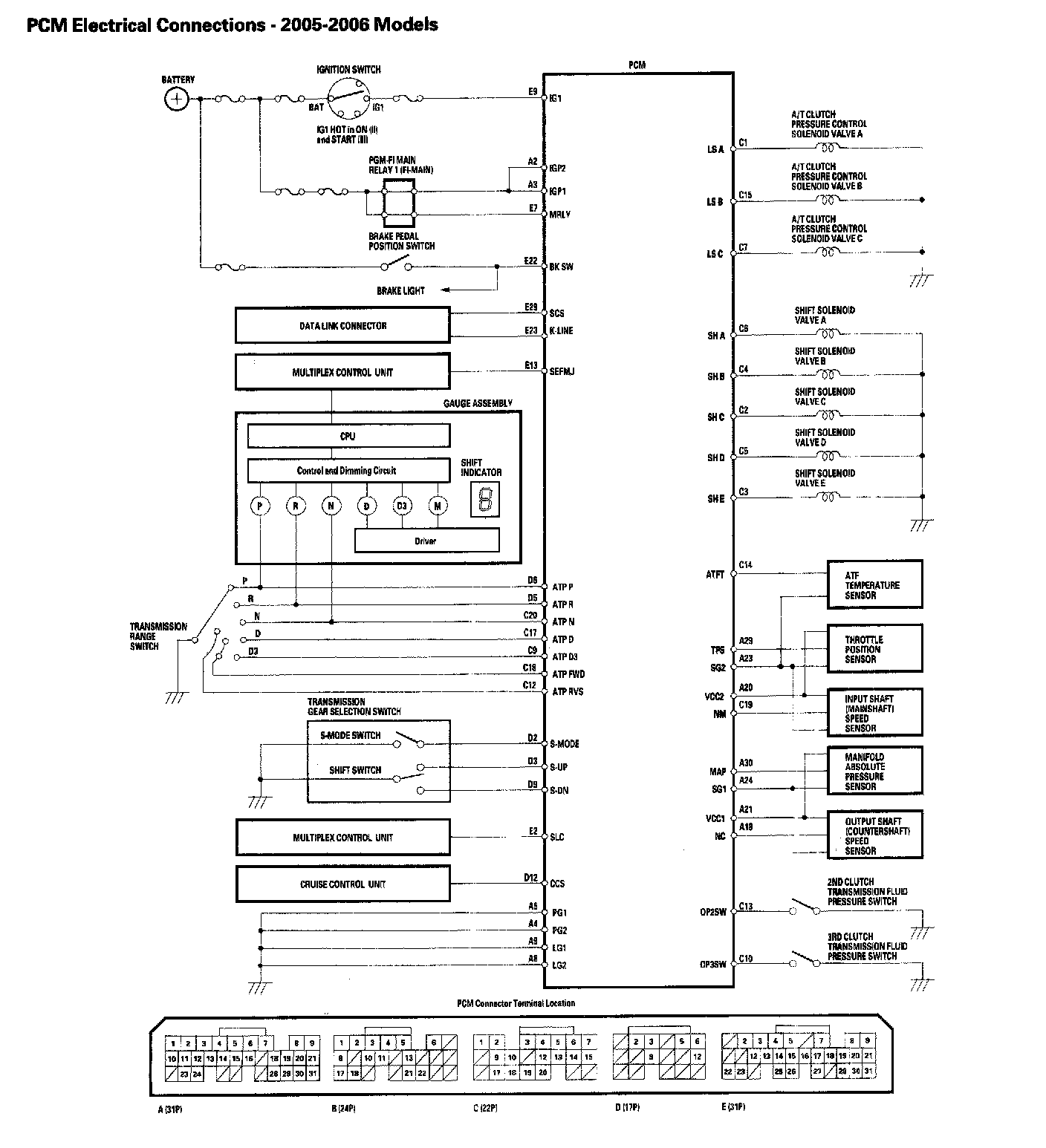

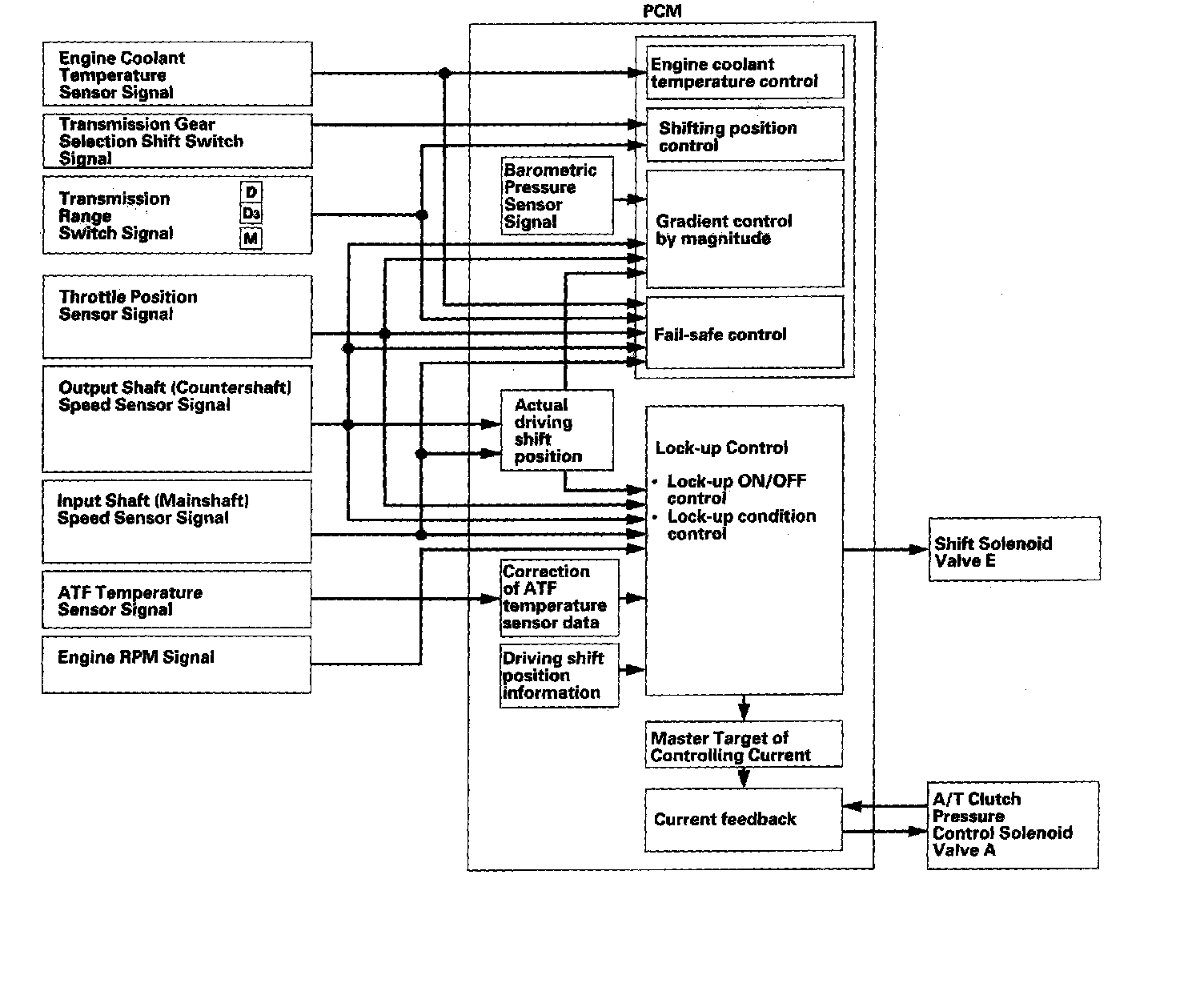

PCM Electrical Connections - 2005-2006 Models:

2002-2004 Models

PCM Inputs and Outputs
The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system.

PCM Connector Terminal Locations 2002-2004 Models:

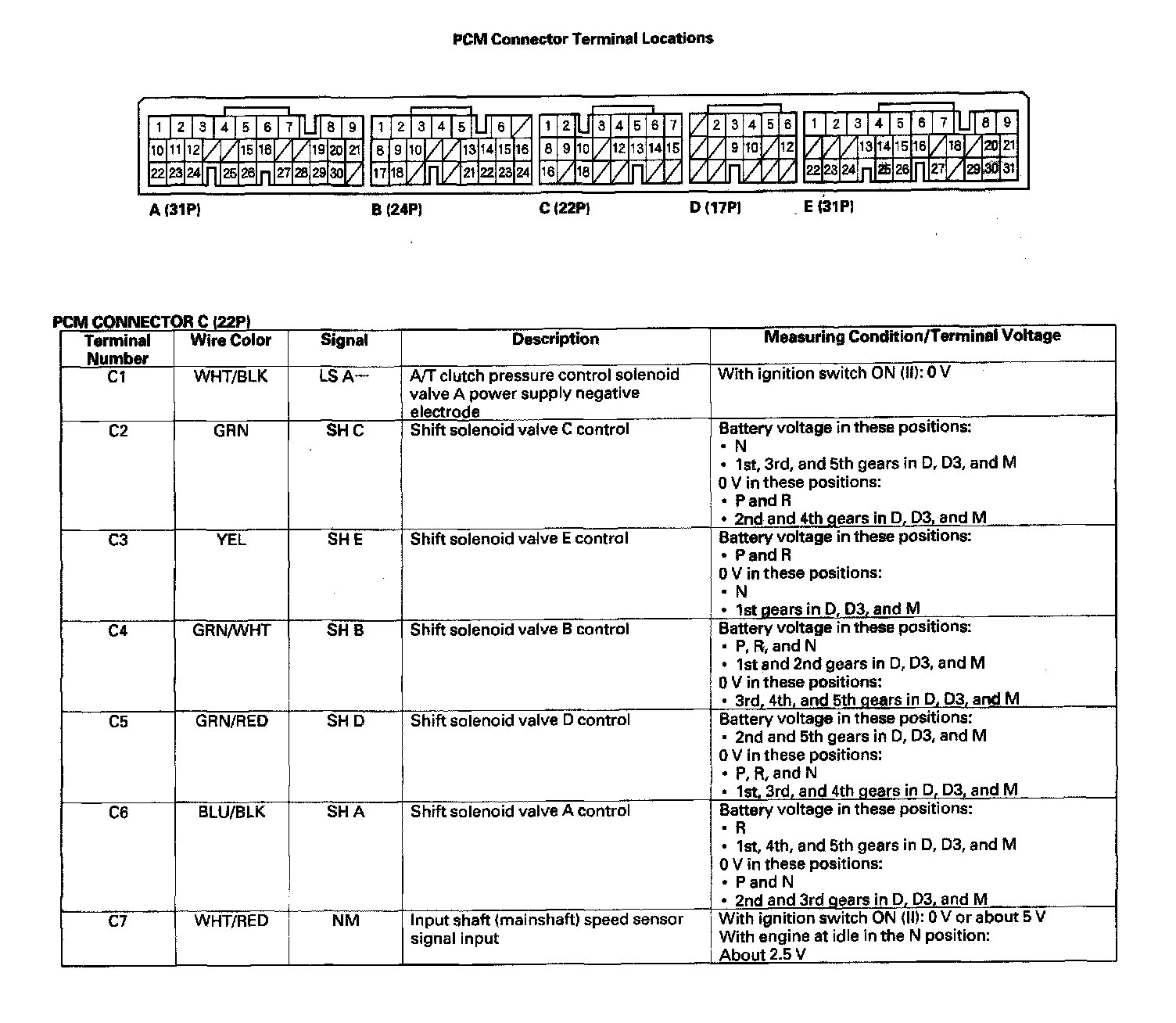

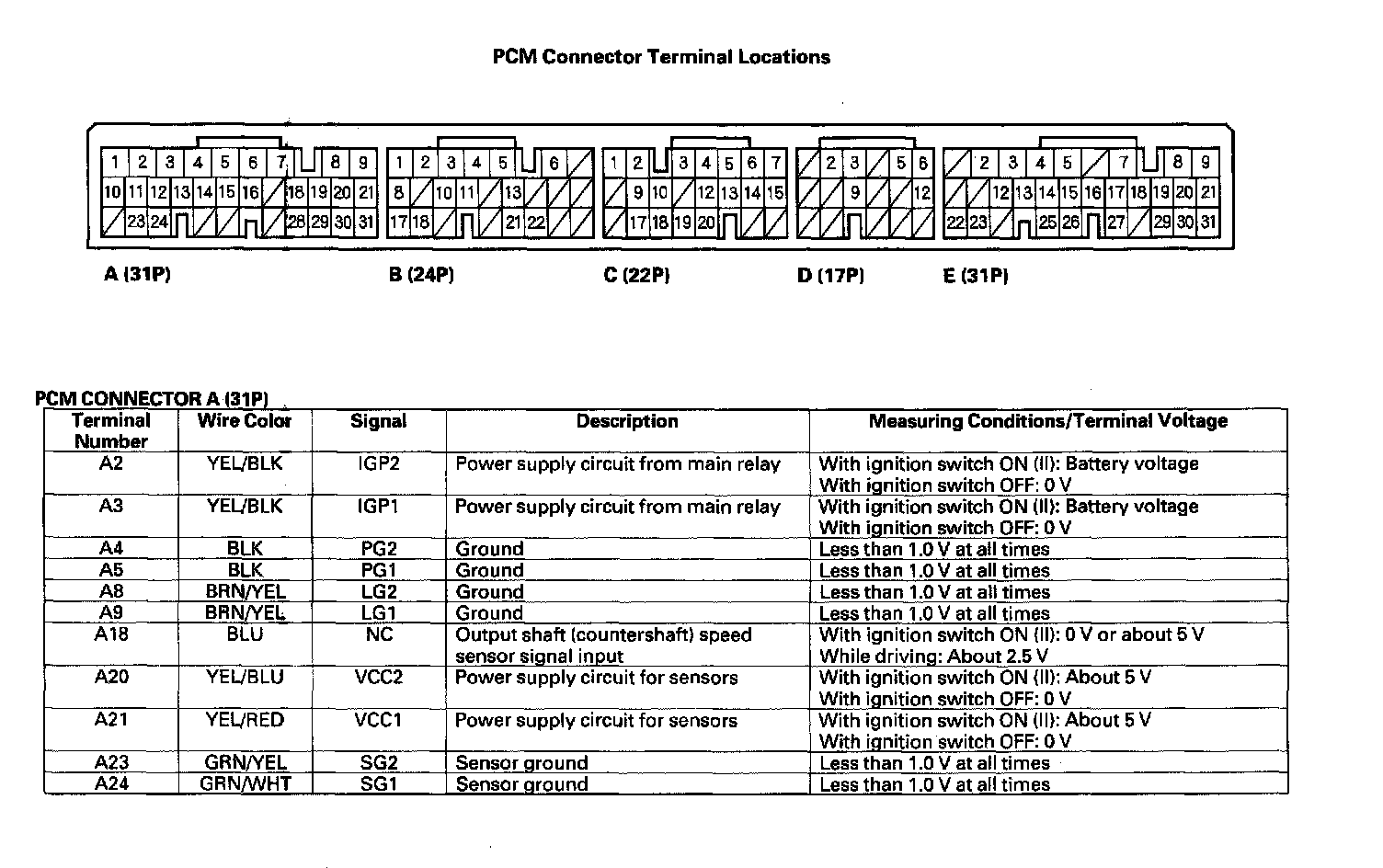

PCM Connector Terminal Locations 2002-2004 Models (part 1):

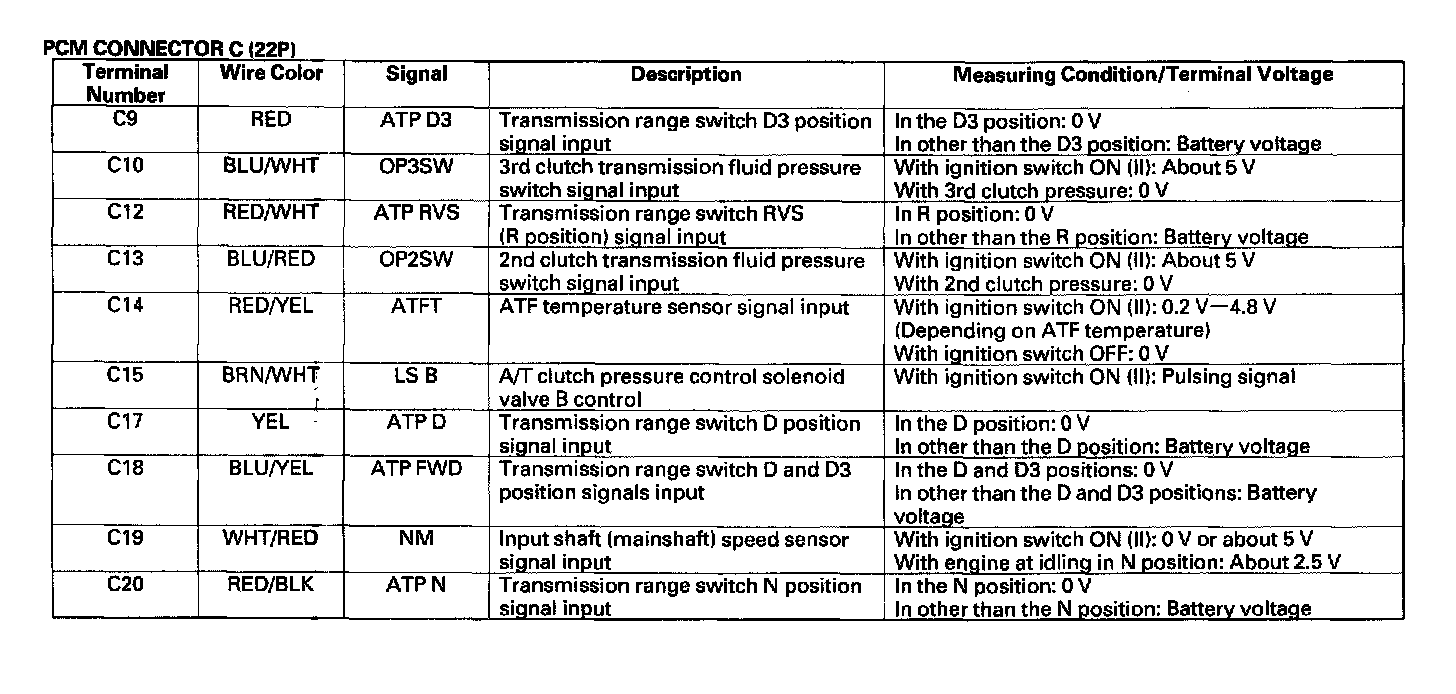

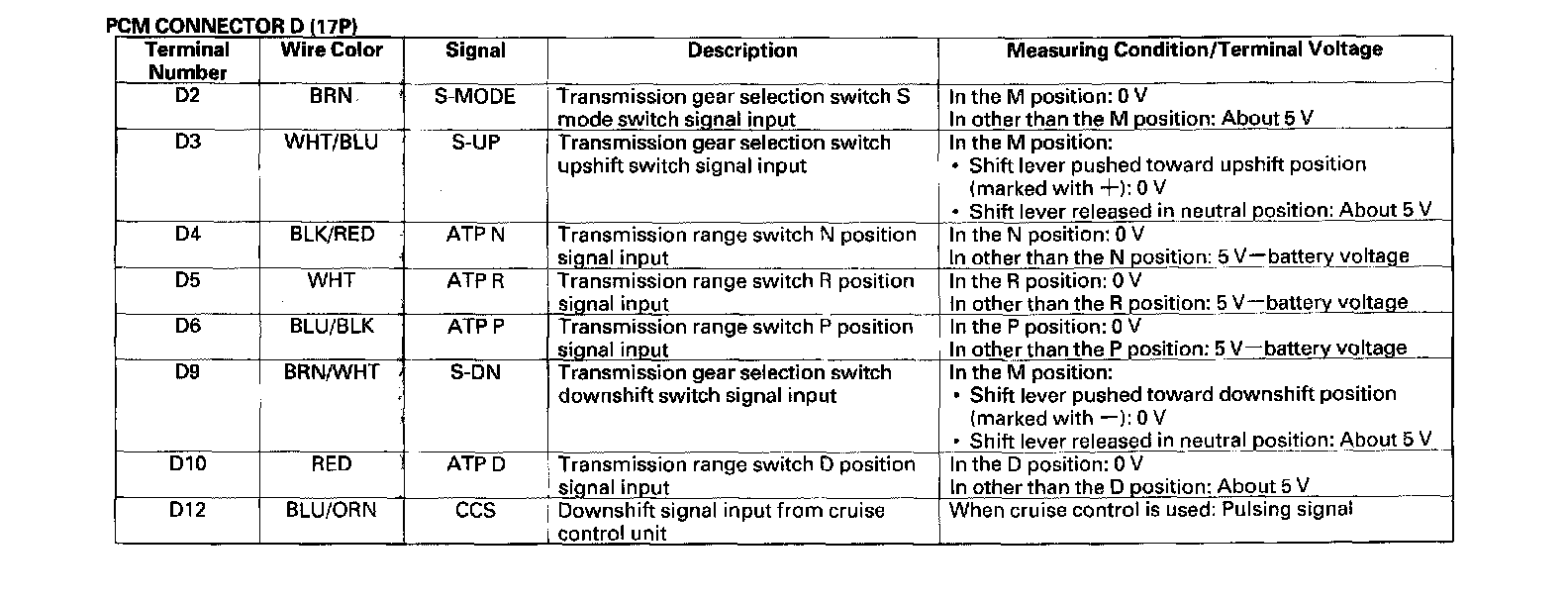

PCM Connector Terminal Locations 2002-2004 Models (part 2):

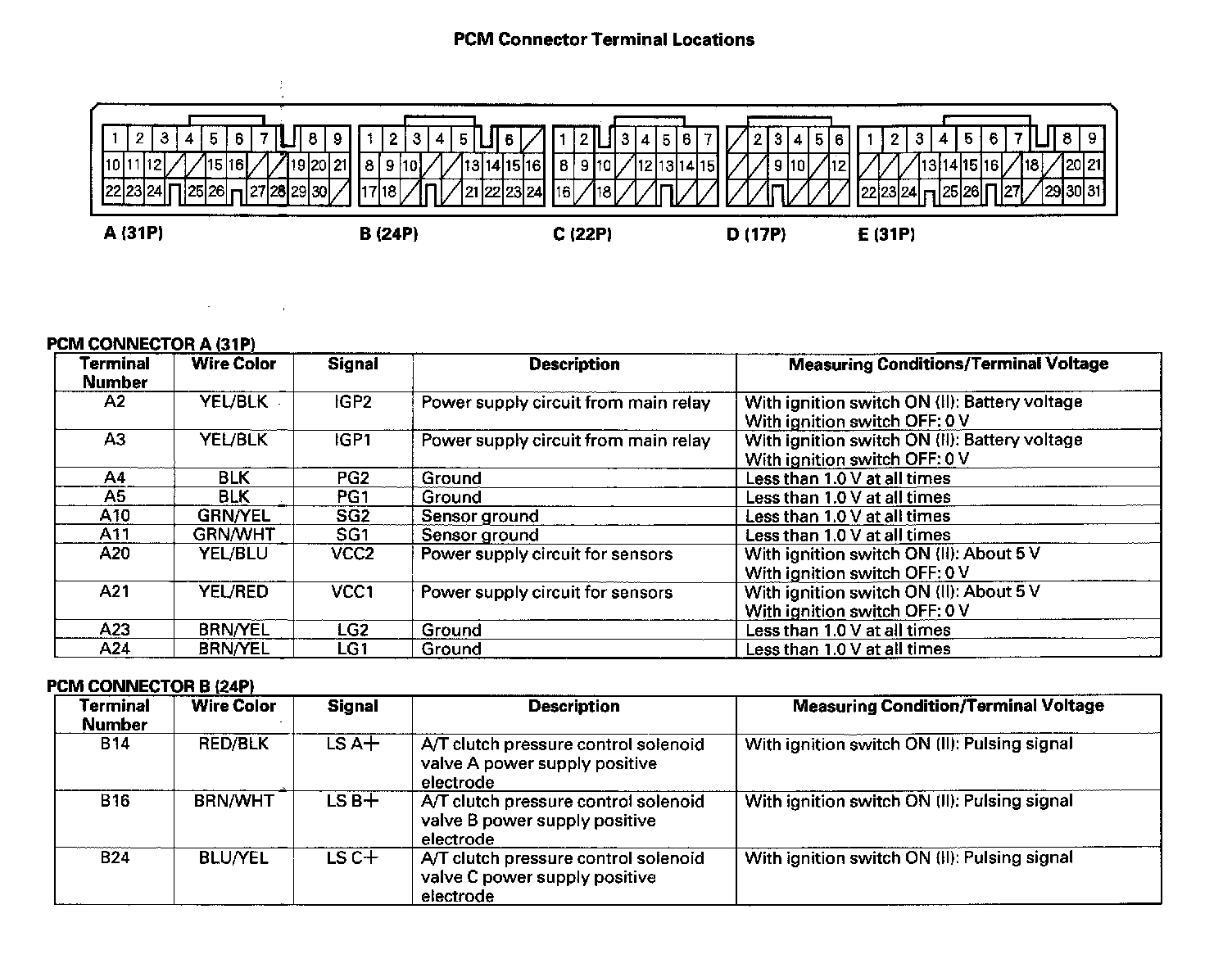

PCM Connector Terminal Locations 2002-2004 Models (part 3):

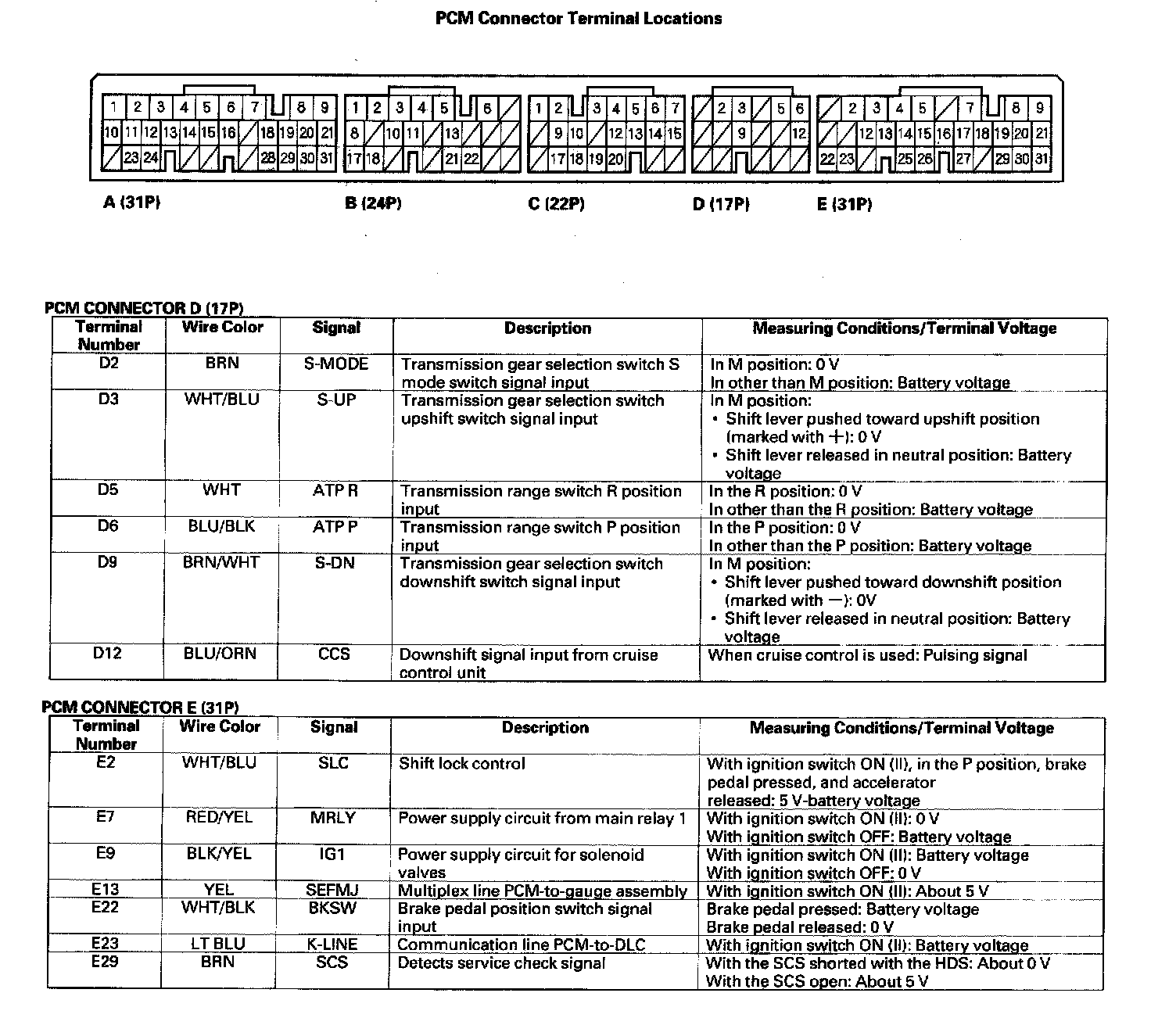

PCM Connector Terminal Locations 2002-2004 Models:

2005-2006 Models

PCM Inputs and Outputs
The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system. The other terminal voltage and measuring conditions are described in Fuel and Emission.

PCM Connector Terminal Locations 2005-2006 Models:

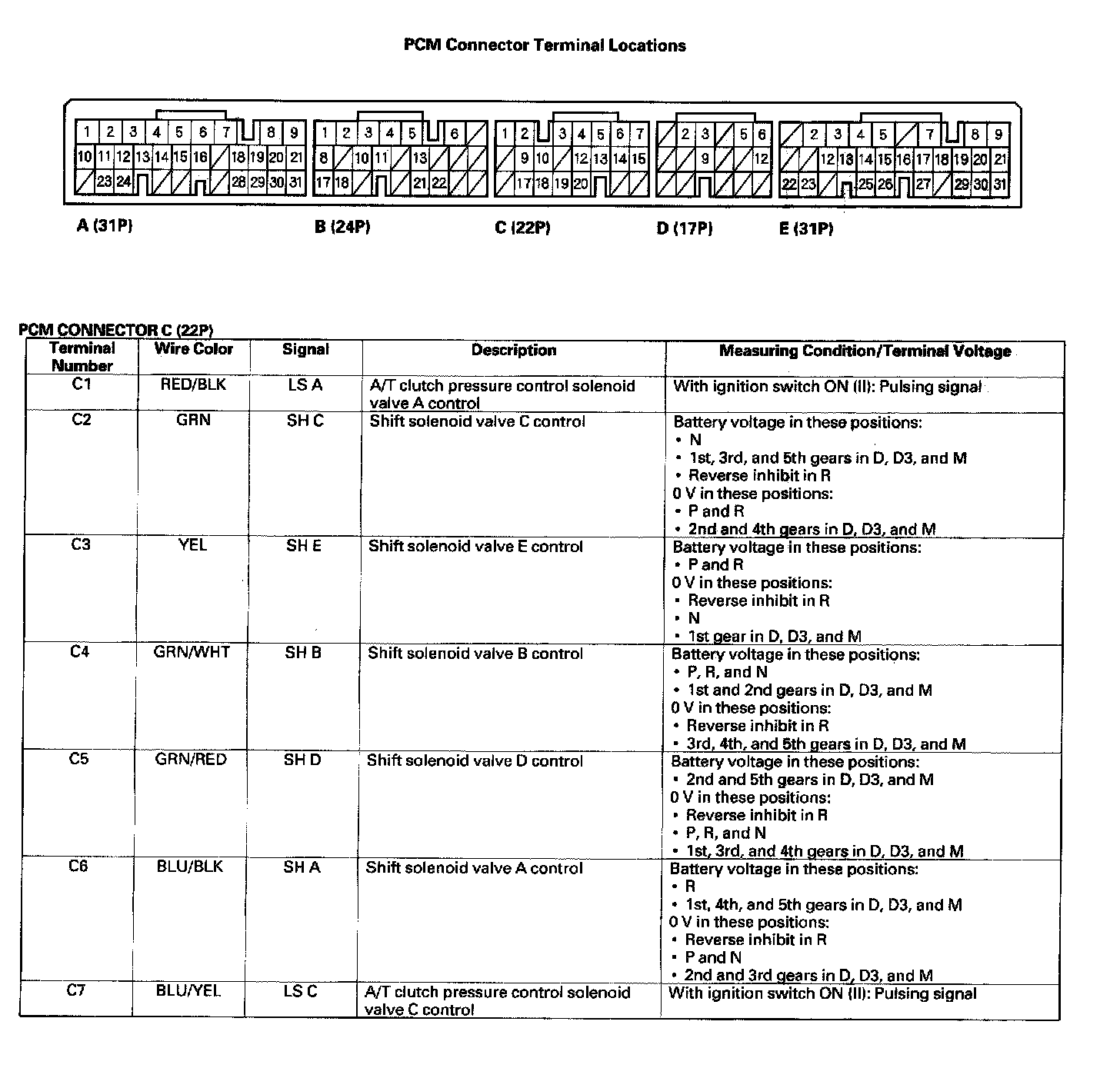

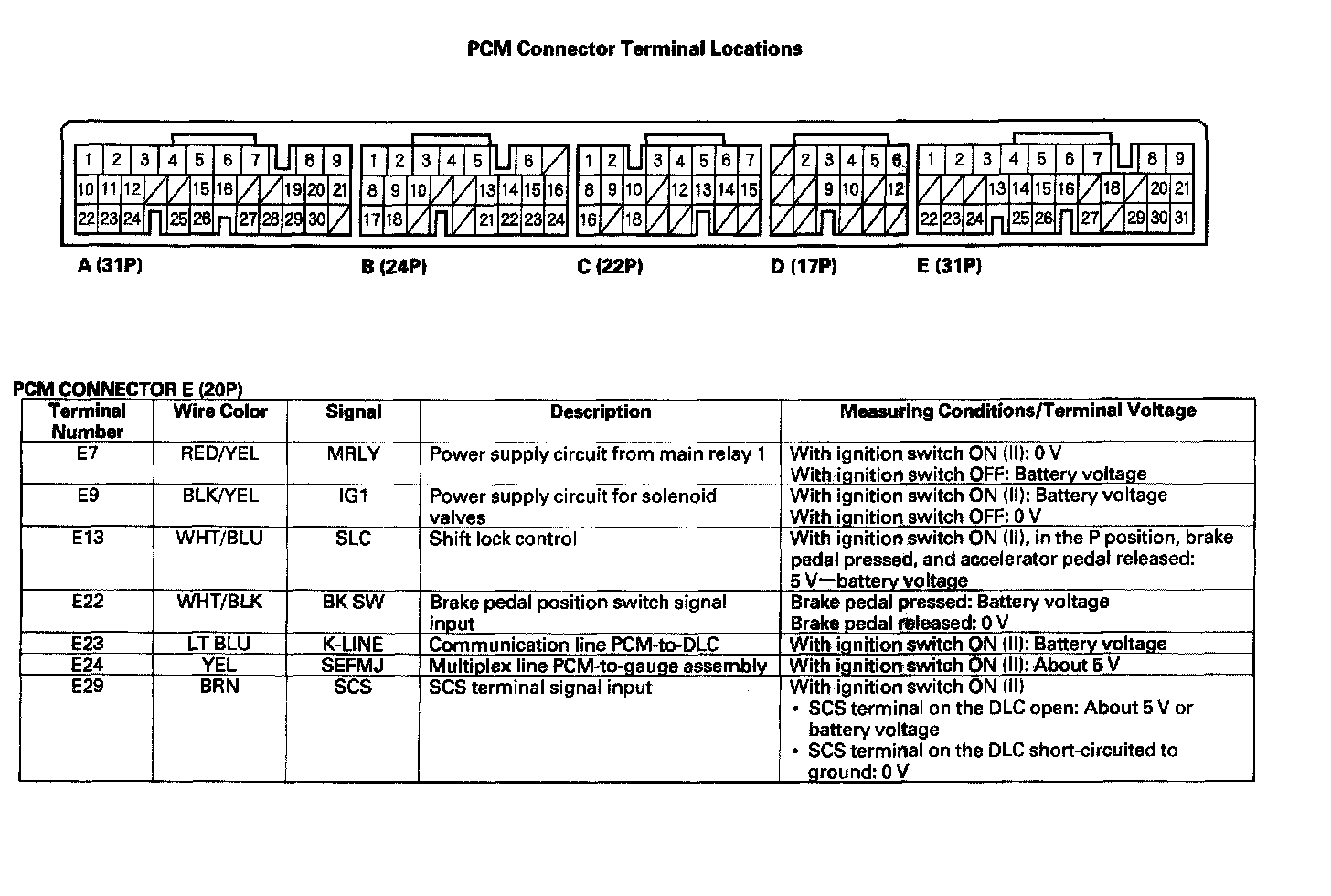

PCM Connector Terminal Locations 2005-2006 Models (part 1):

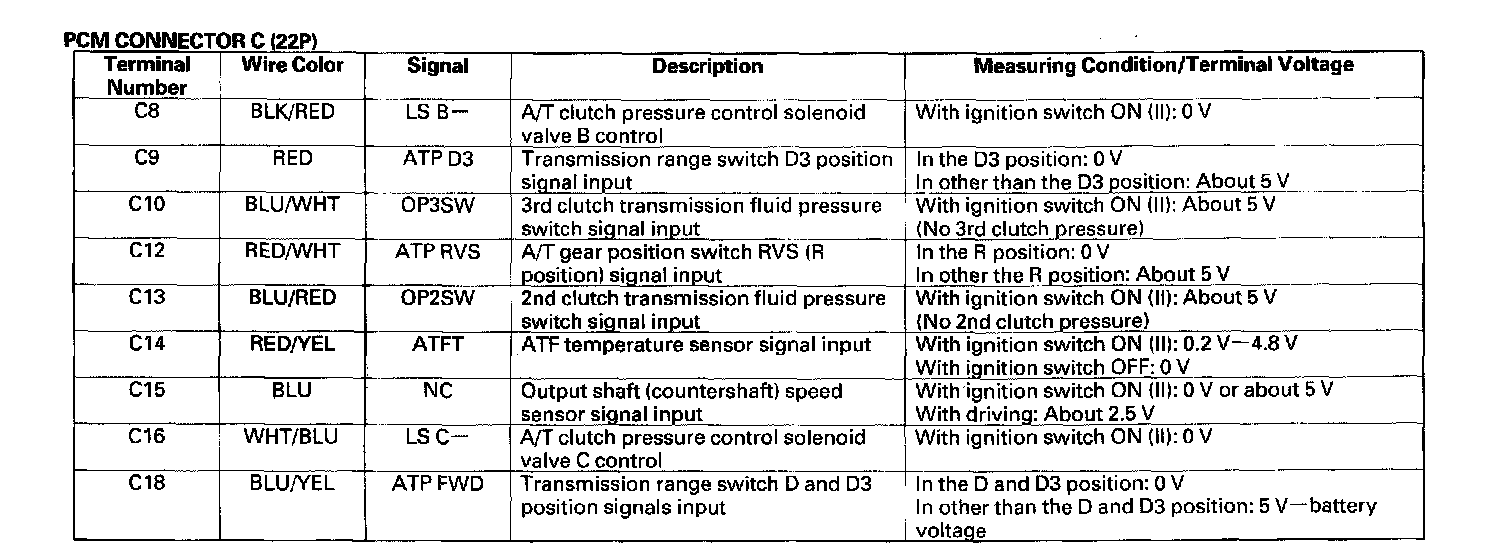

PCM Connector Terminal Locations 2005-2006 Models (part 2):

PCM Connector Terminal Locations 2005-2006 Models:
