TPMS Control Unit Inputs and Outputs for Connector A (14P)

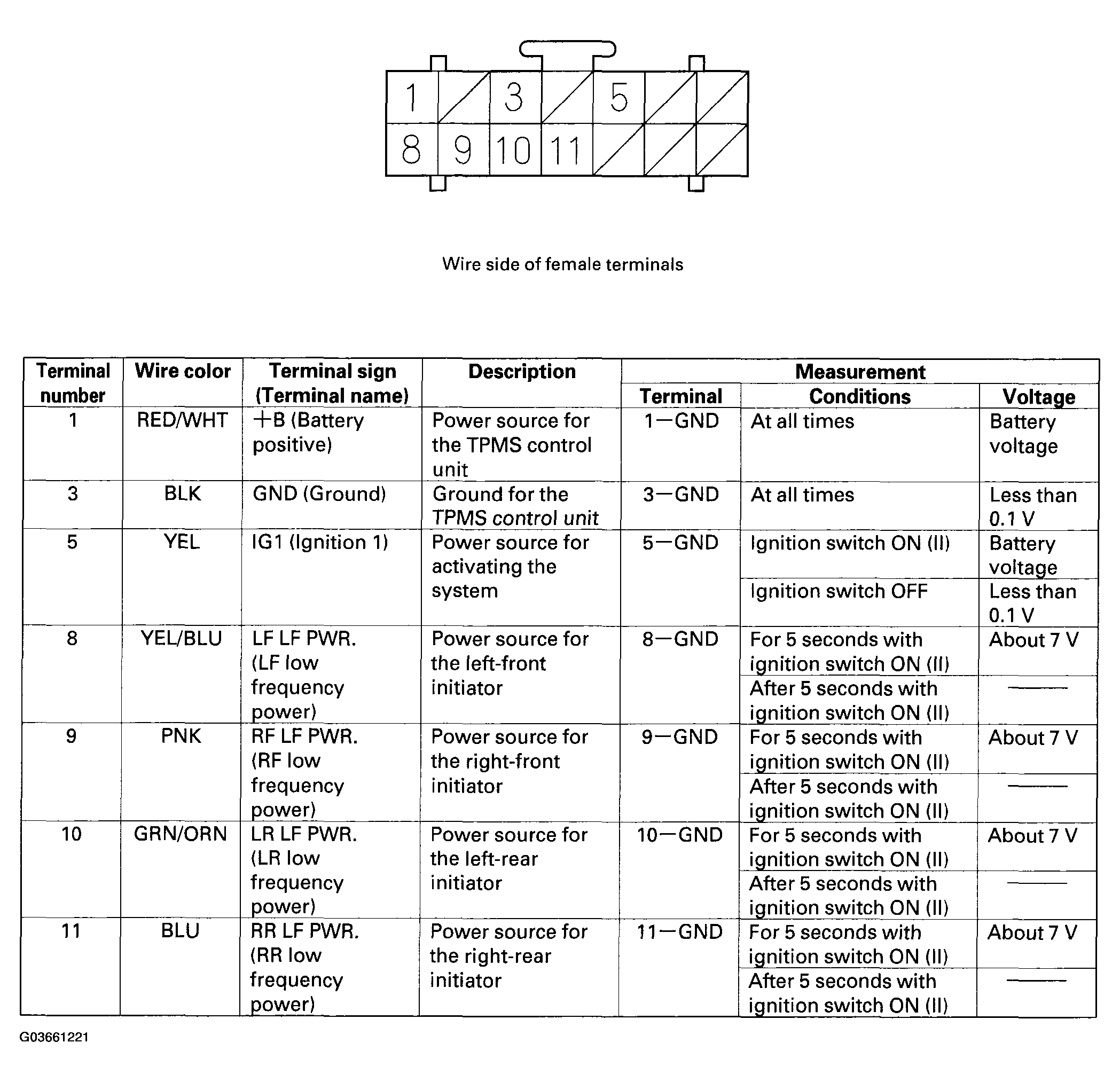

Fig 1: Identifying TPMS Control Unit Connector A (14P) & Terminal Voltage Specification Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
