Navigation Connectors

63. Navigation Service Check Connector (Navigation):



212. Audio-HVAC Sub Display Unit (Navigation):

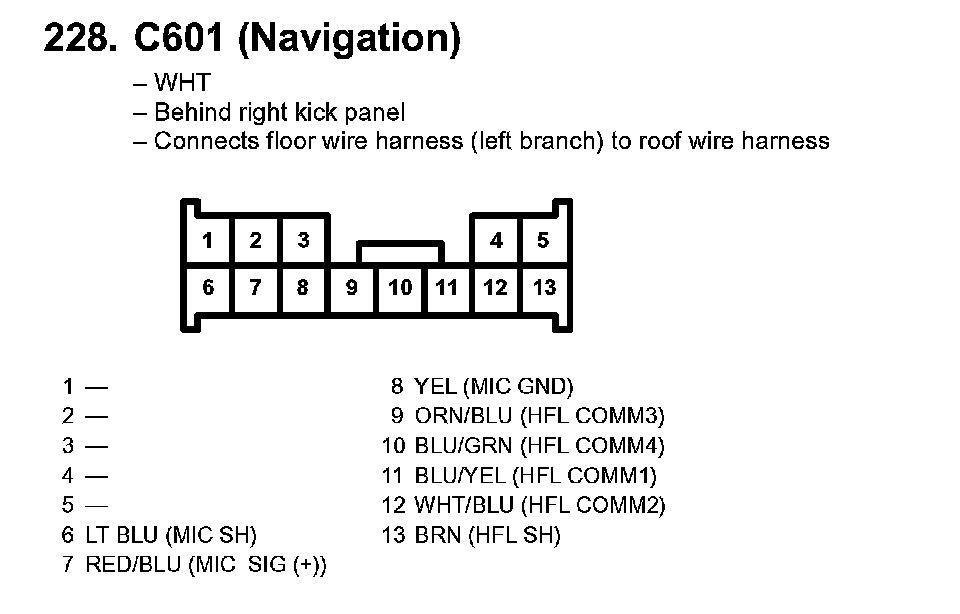

228. C601 (Navigation):

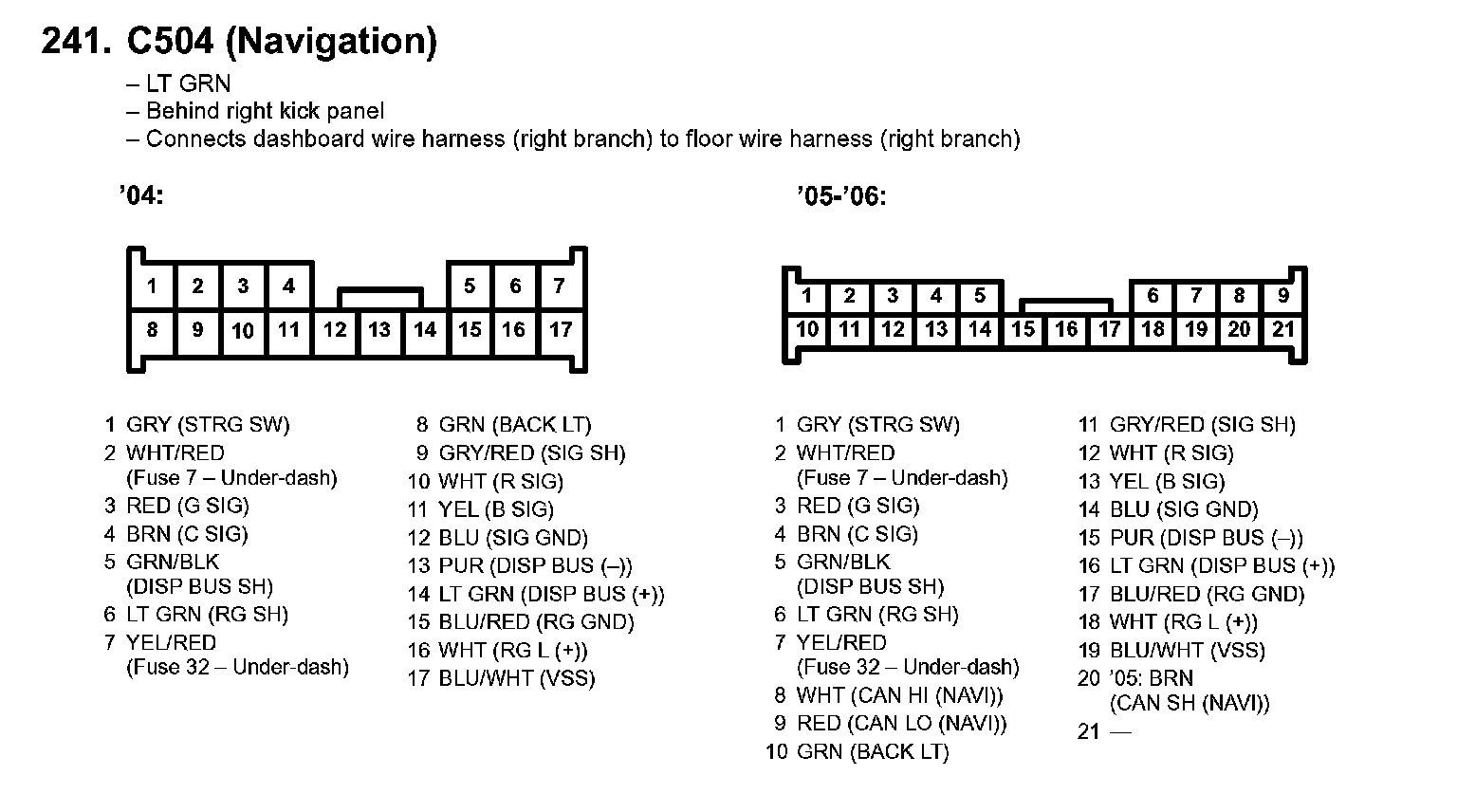

241. C504 (Navigation):
