Power Window Switch

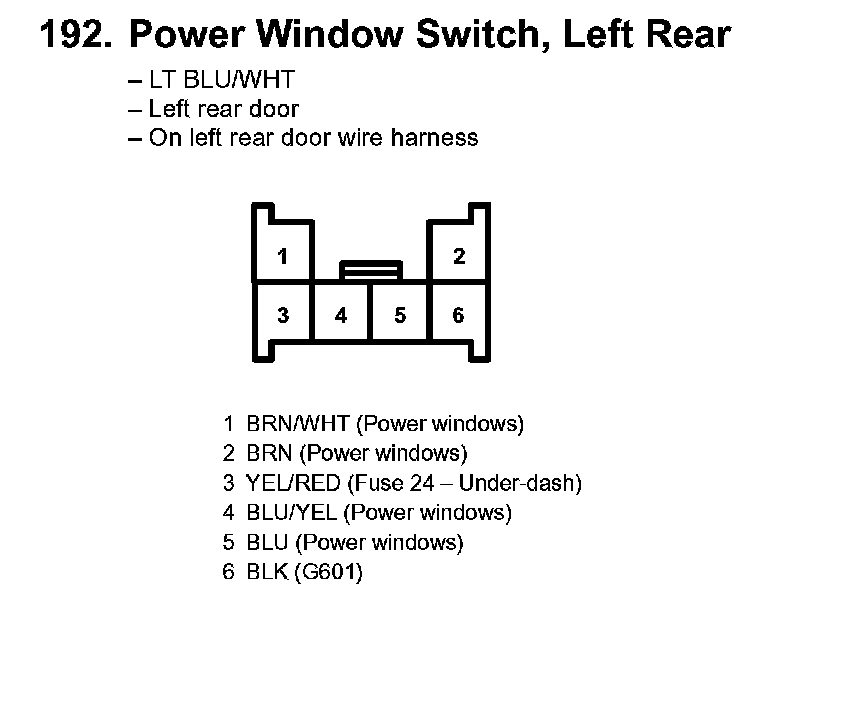

192. Power Window Switch, Left Rear:

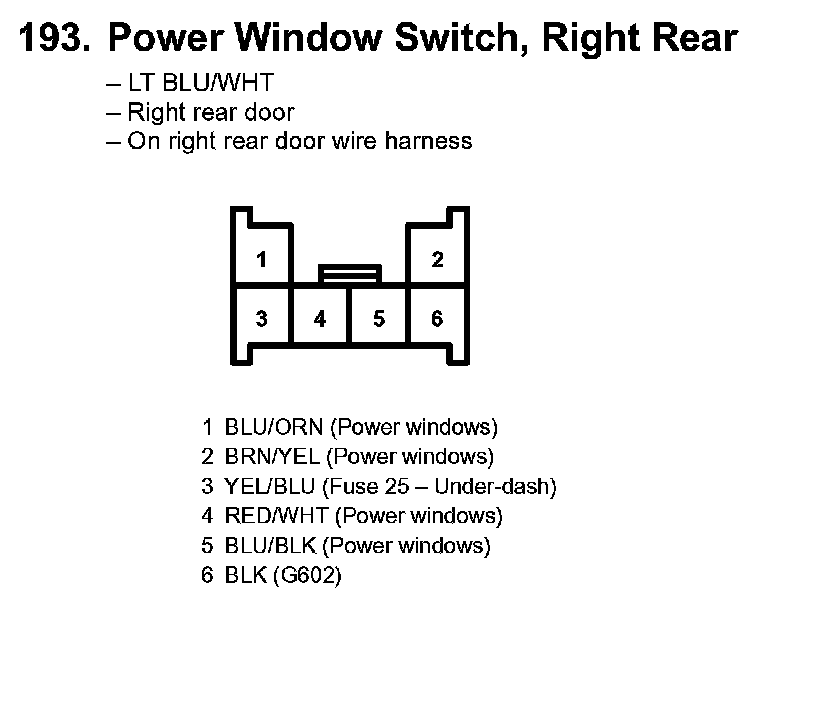

193. Power Window Switch, Right Rear:



230. Front Pasenger's Power Window Switch (Door Multiplex Control Unit):



280. Power Window Master Switch (Door Multiplex Control Unit):
