Overhaul Specifications

Overhaul

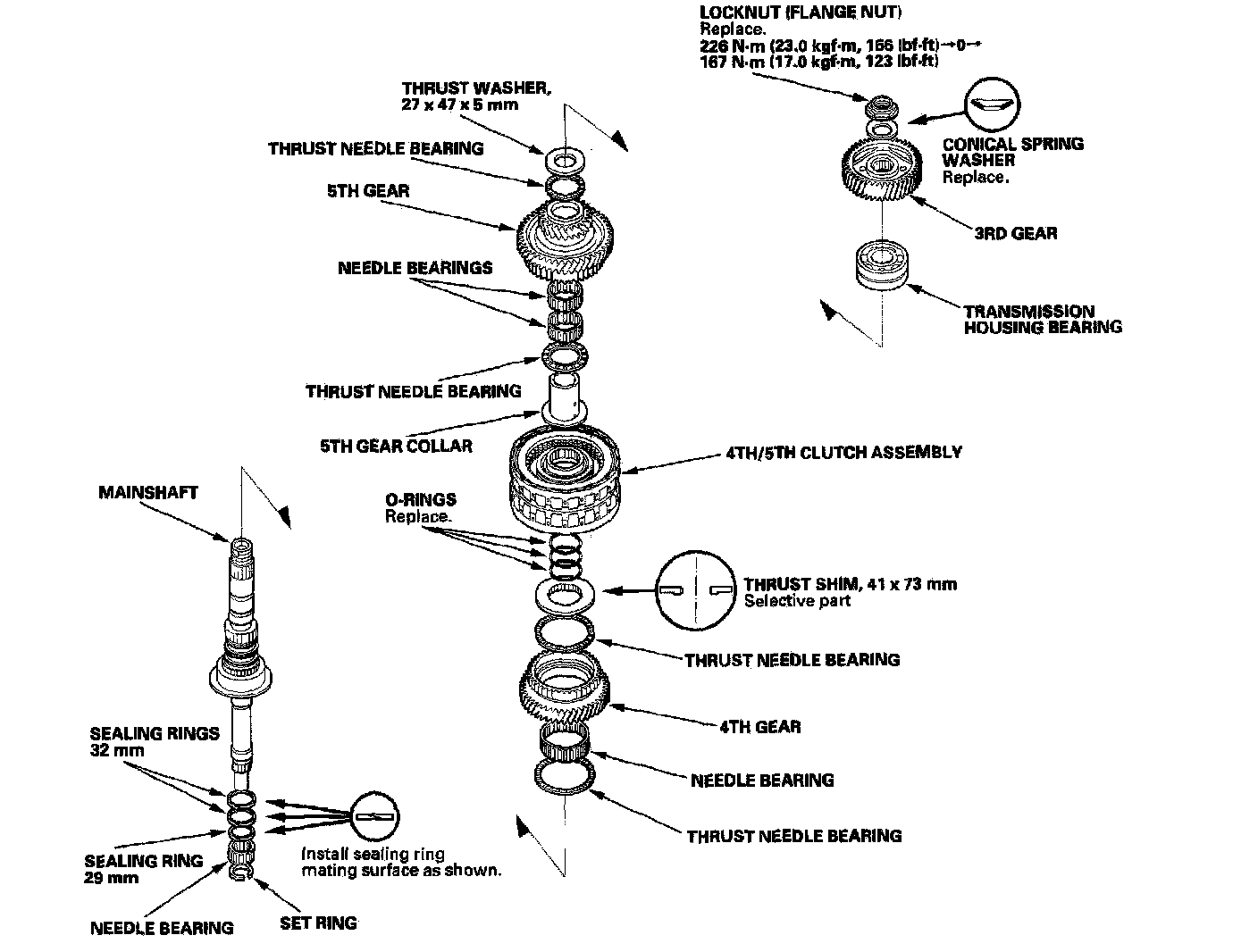

Mainshaft

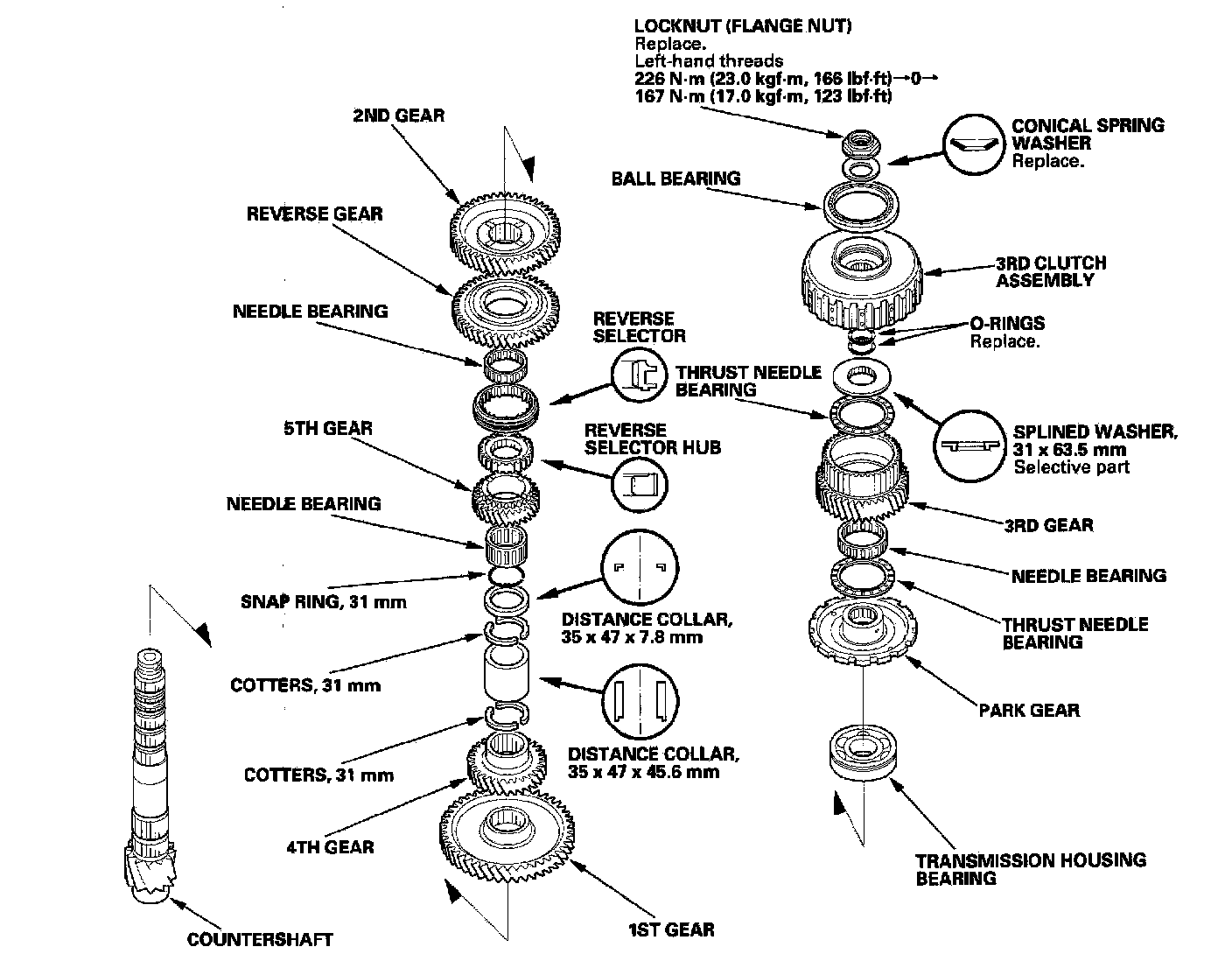

Countershaft

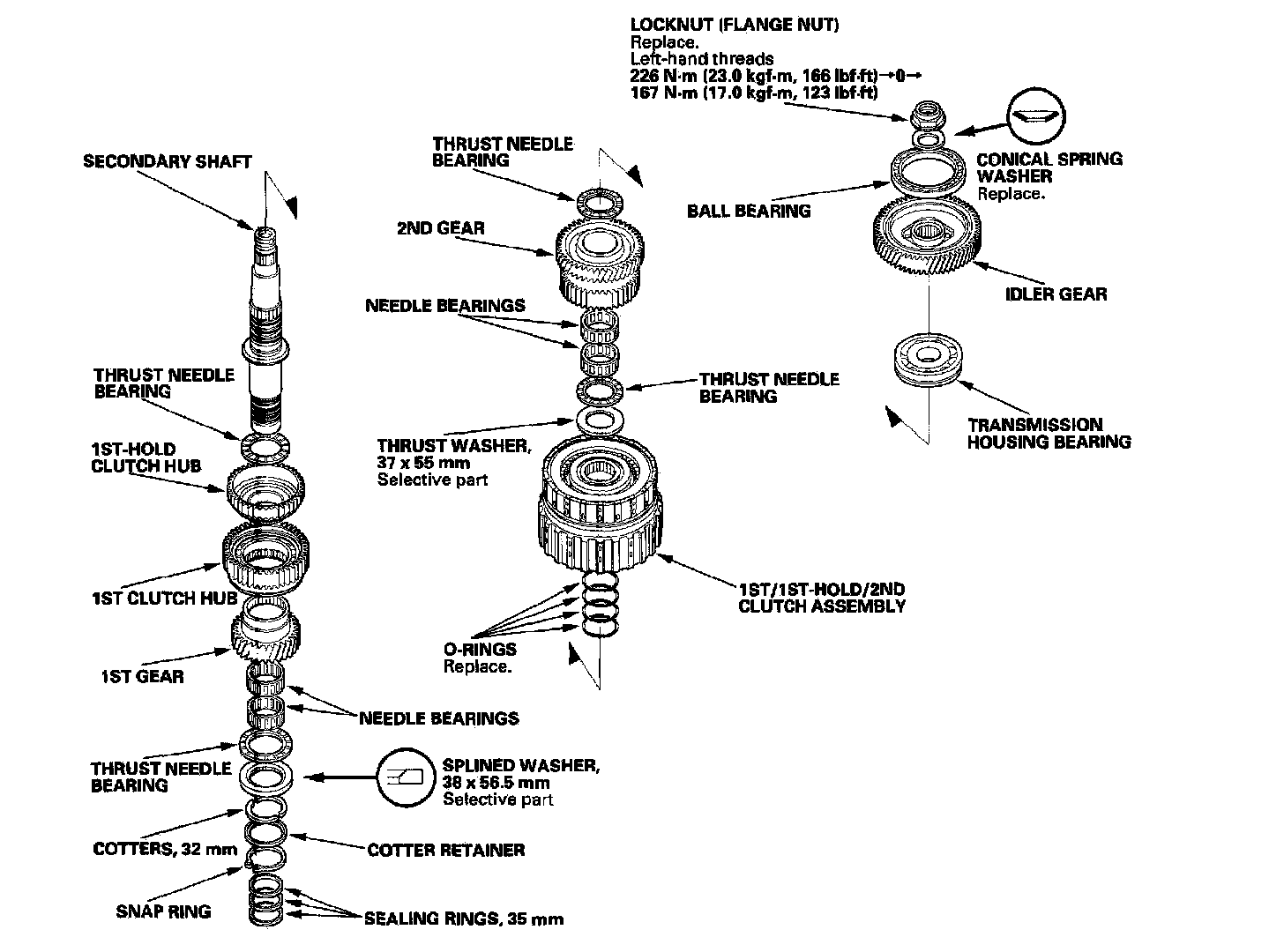

Secondary Shaft

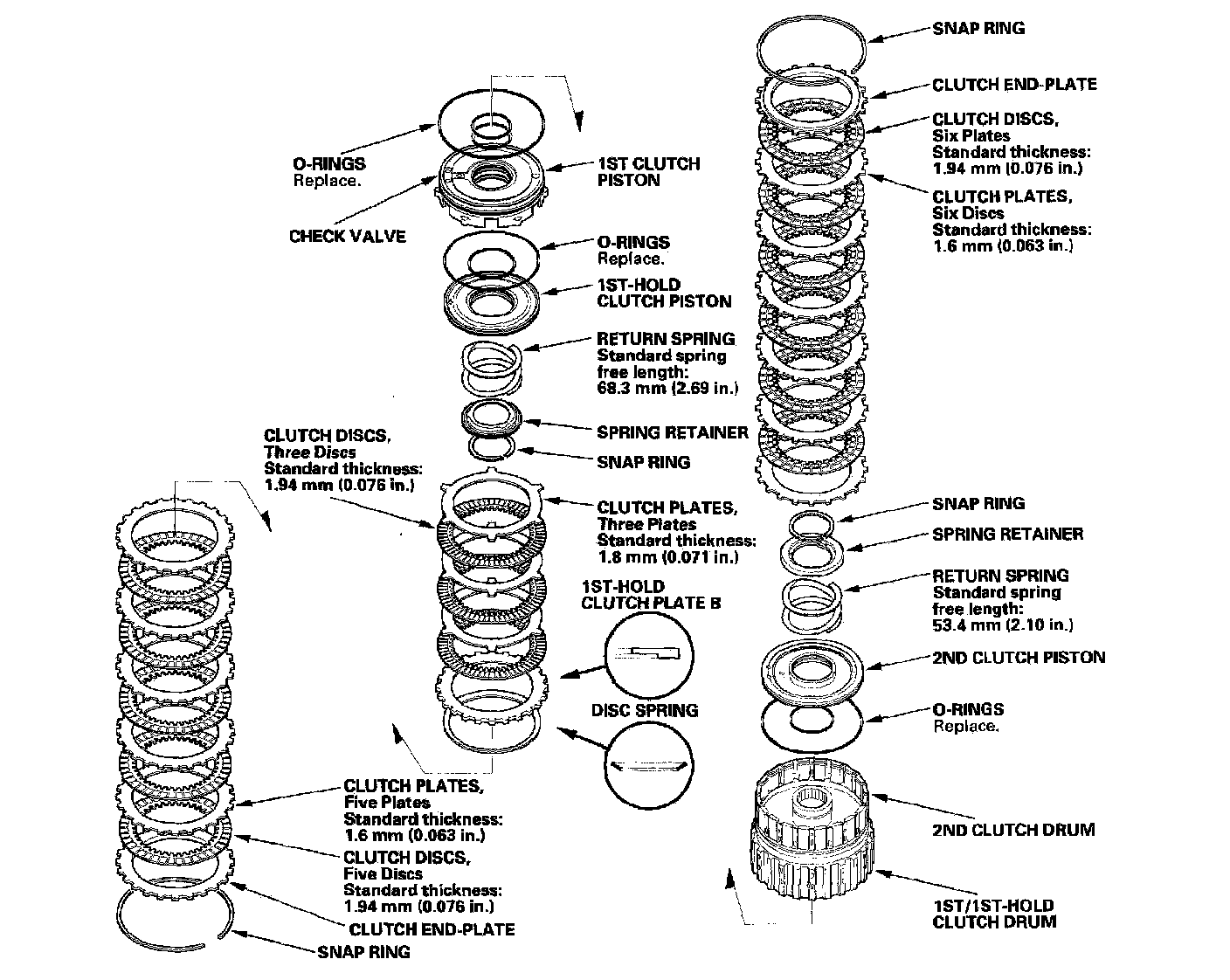

1st/1st-hold/2nd Clutch

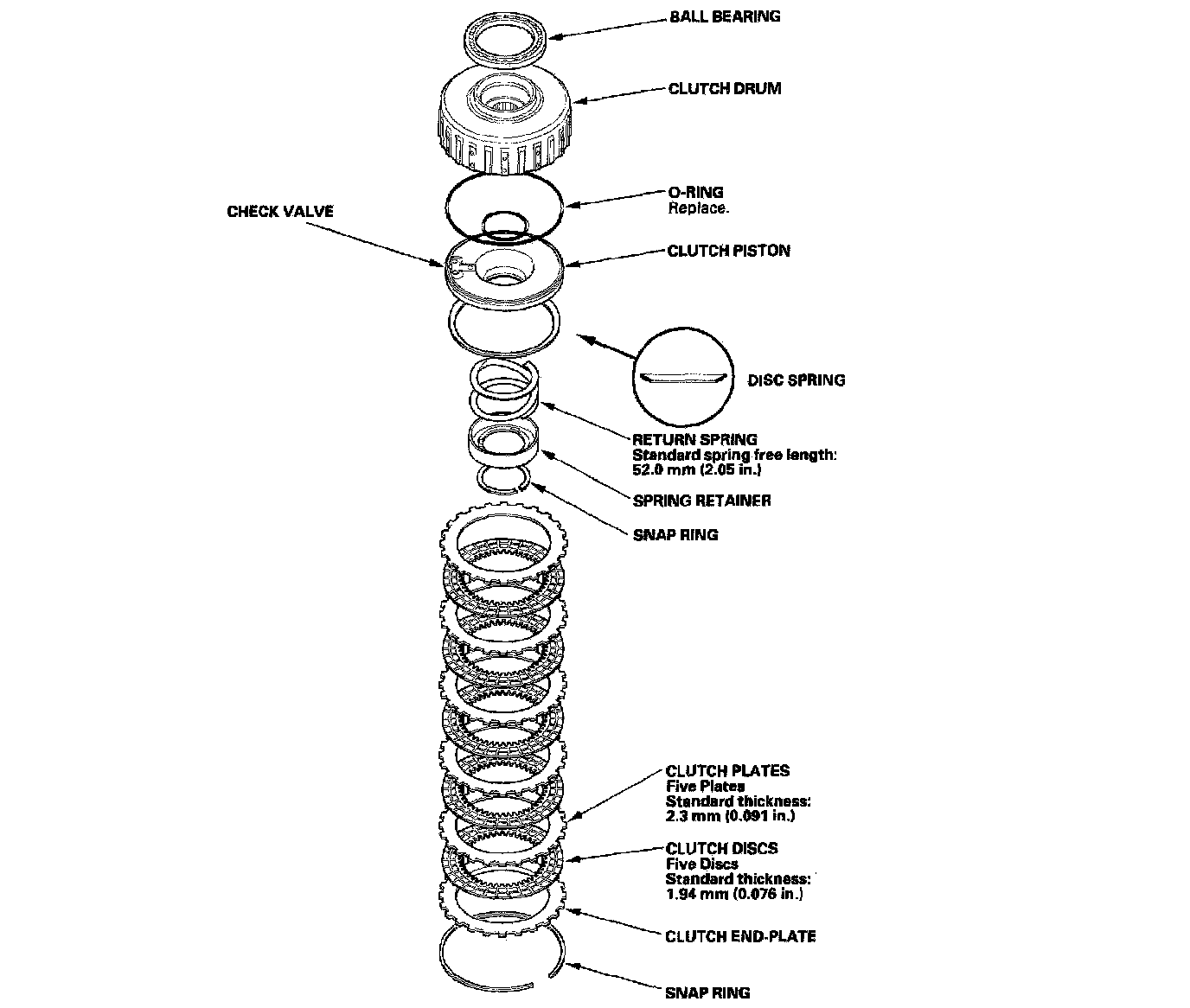

3rd Clutch

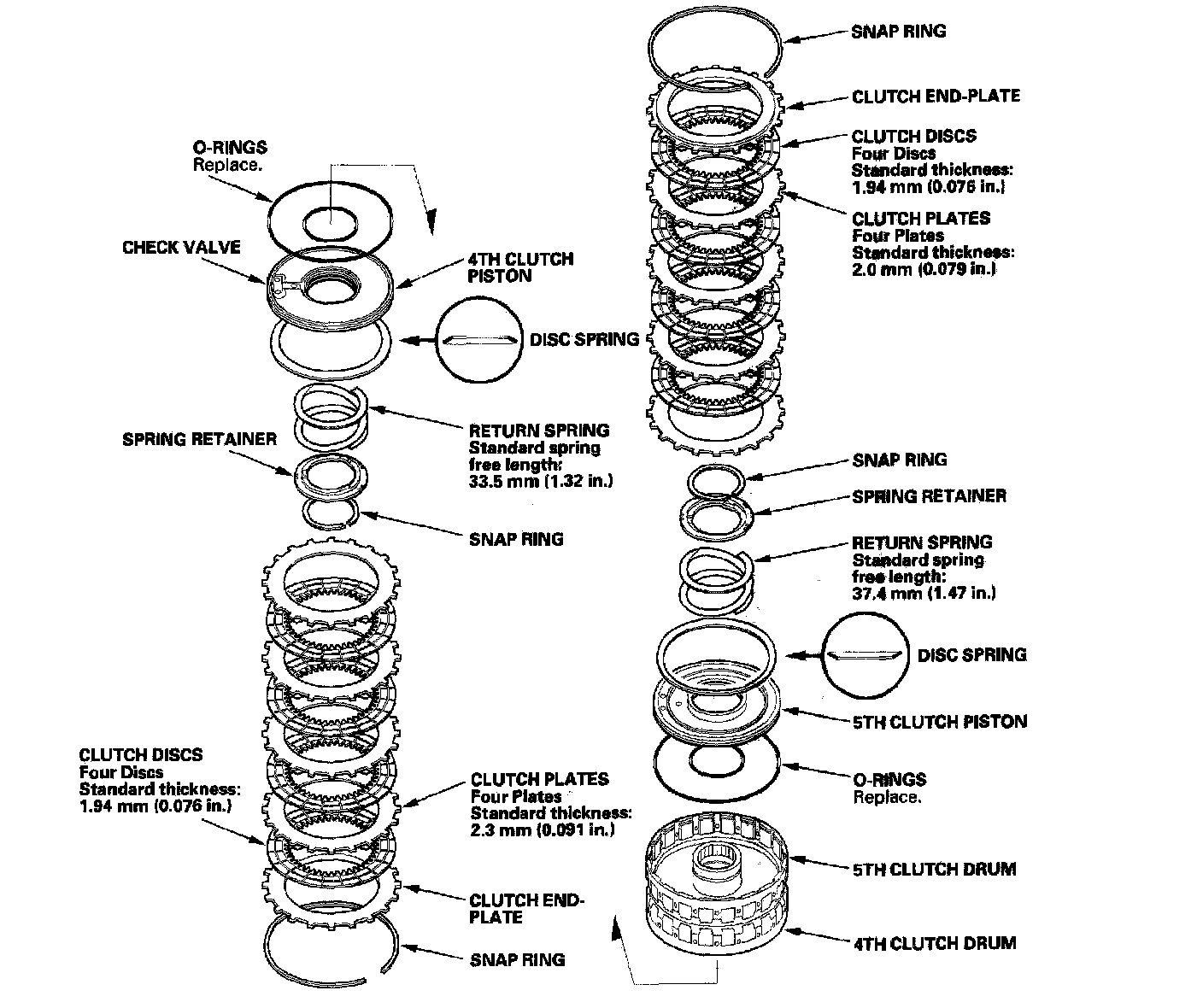

4th/5th Clutch (2005-2006 Models)


For more transmission Overhaul Specifications refer to Service procedures. Service and Repair
