Mirror Memory Switch: Locations

Doors - Component Location Index - Front Door:

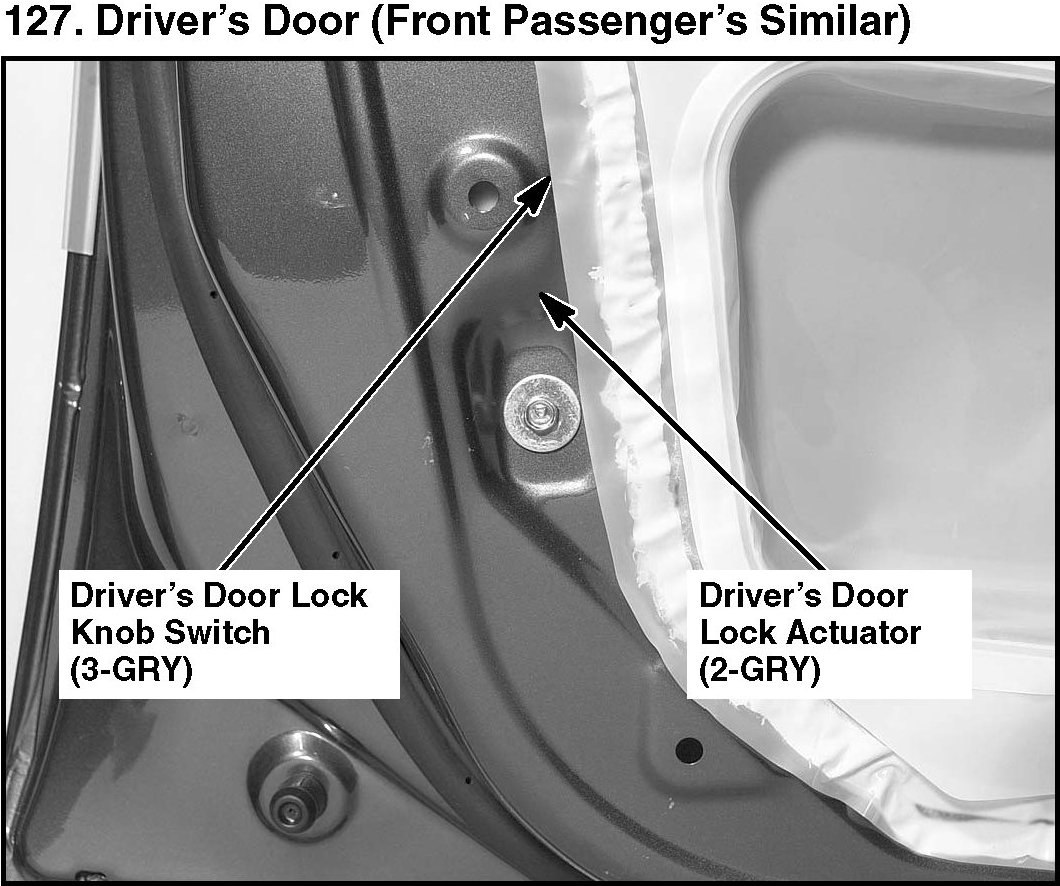

127. Driver's Door (Front Passenger's Similar):

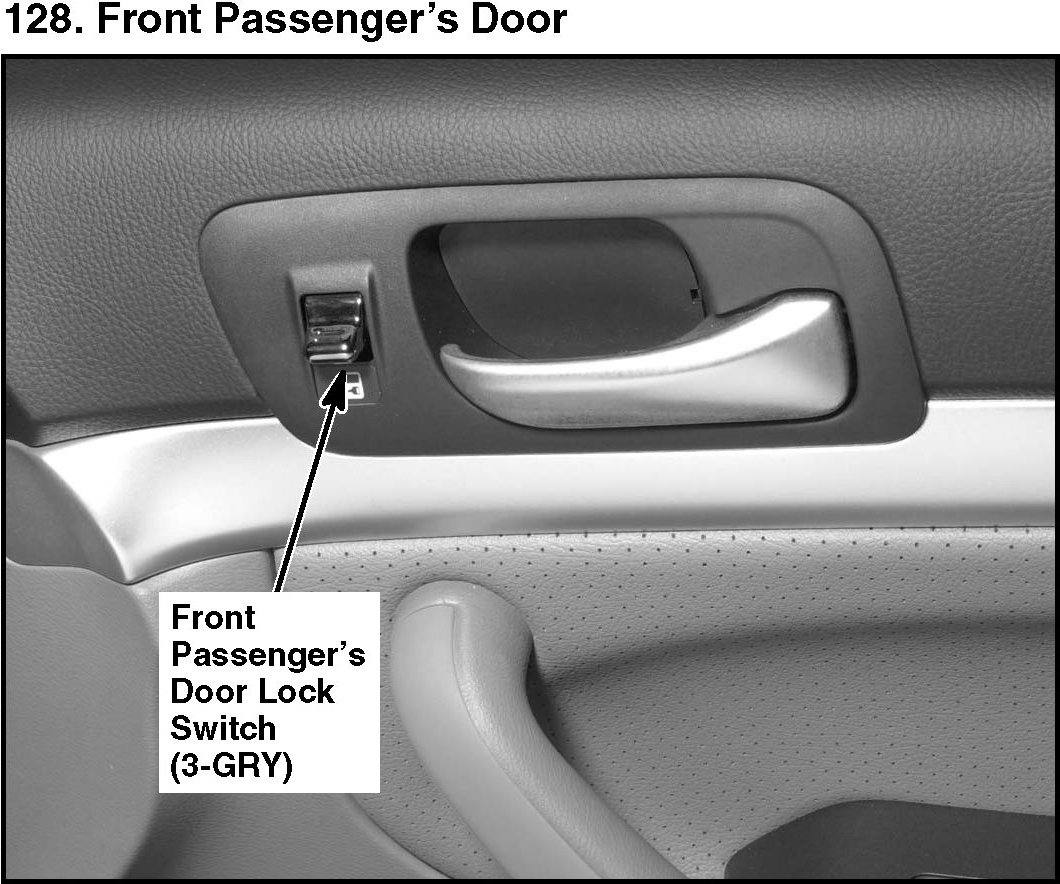

128. Front Passenger's Door:

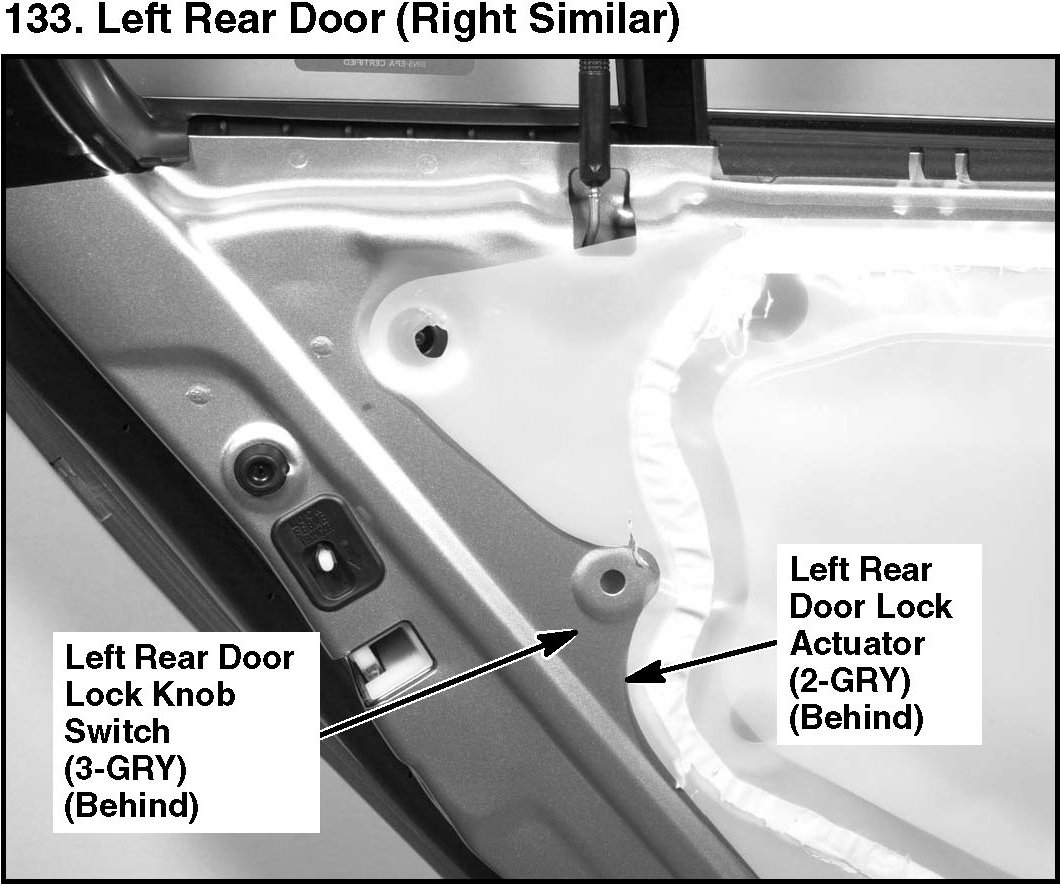

133. Left Rear Door (Right Similar):
