Information Bus: Locations

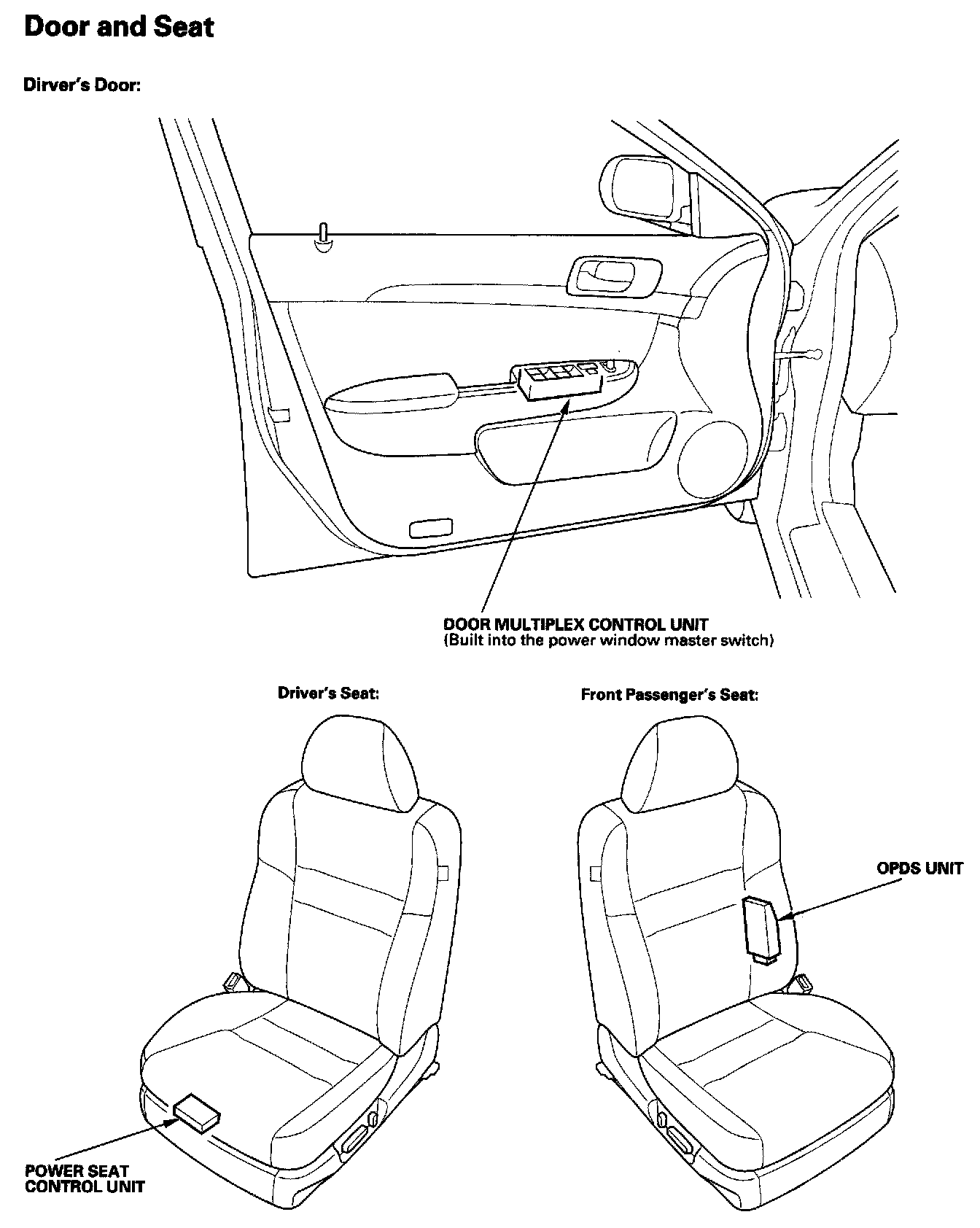

Relay And Control Unit Locations - Door And Seat:



Relay And Control Unit Locations - Dash Board:

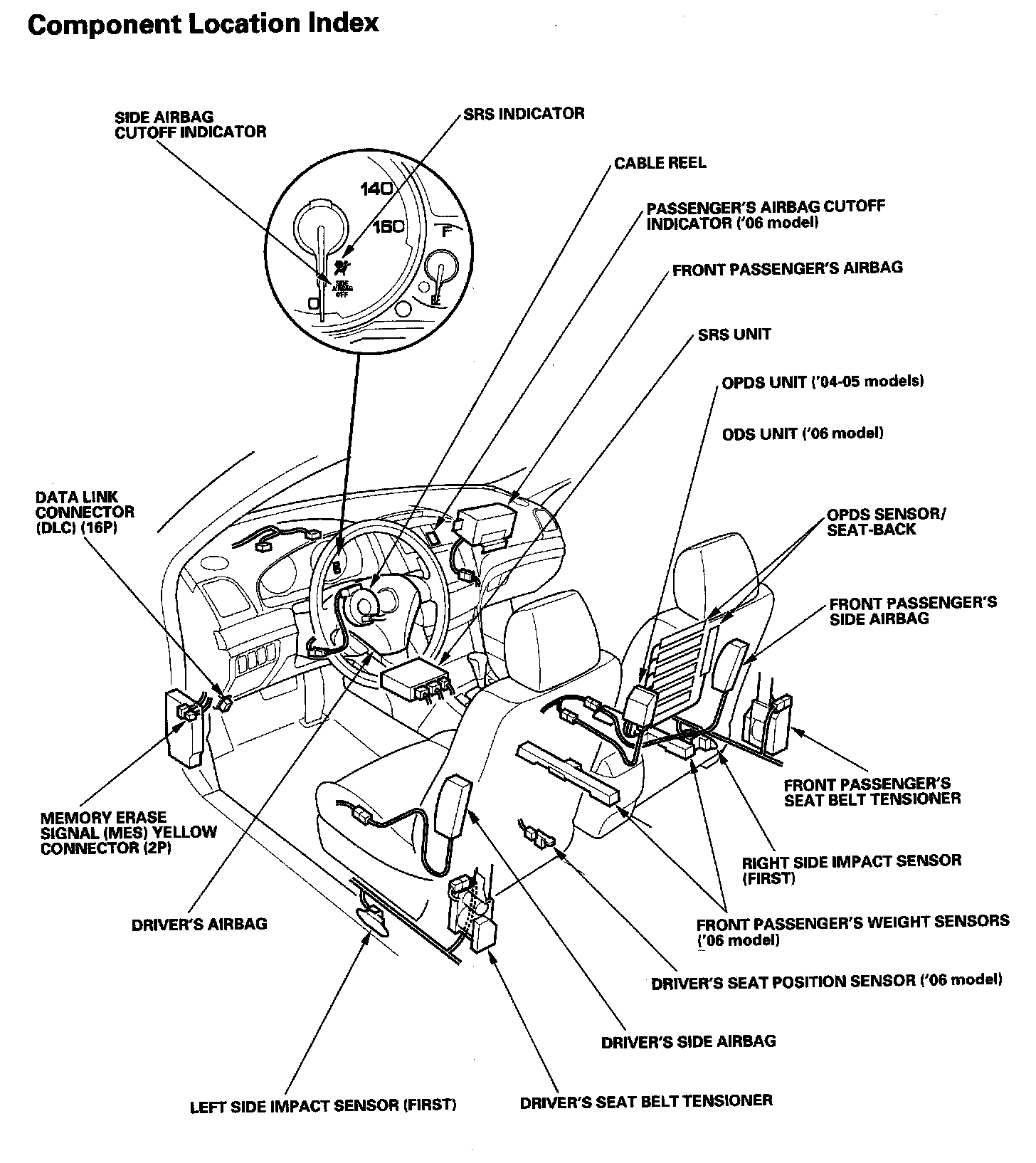

SRS - Component Location Index:

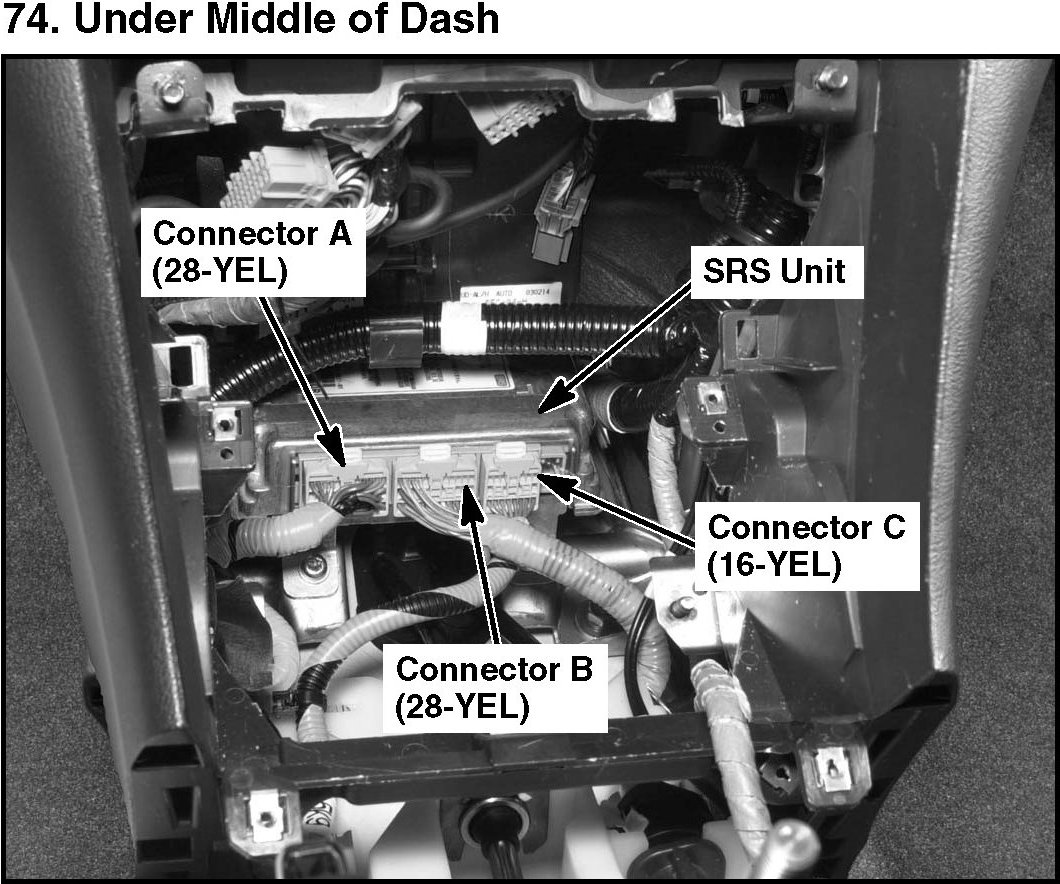

74. Under Middle Of Dash:

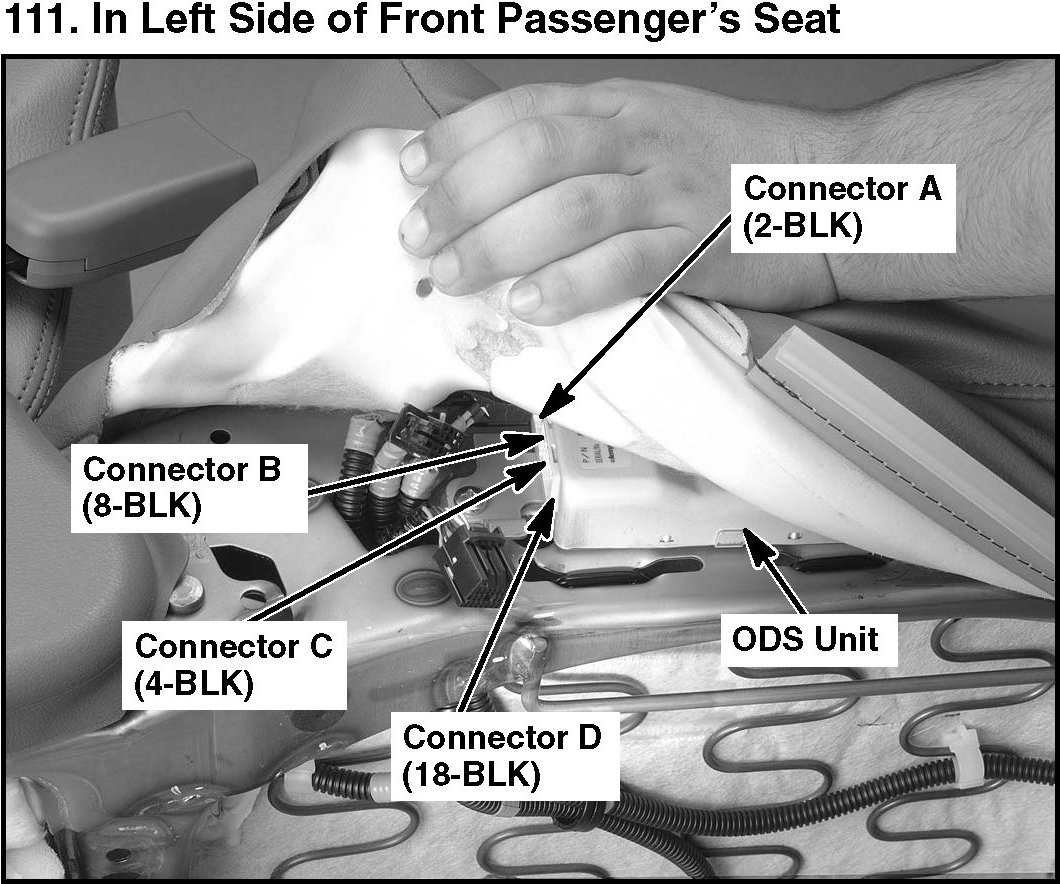

111. In Left Side Of Front Passenger's Seat:
