Instrument Panel Control Module: Locations

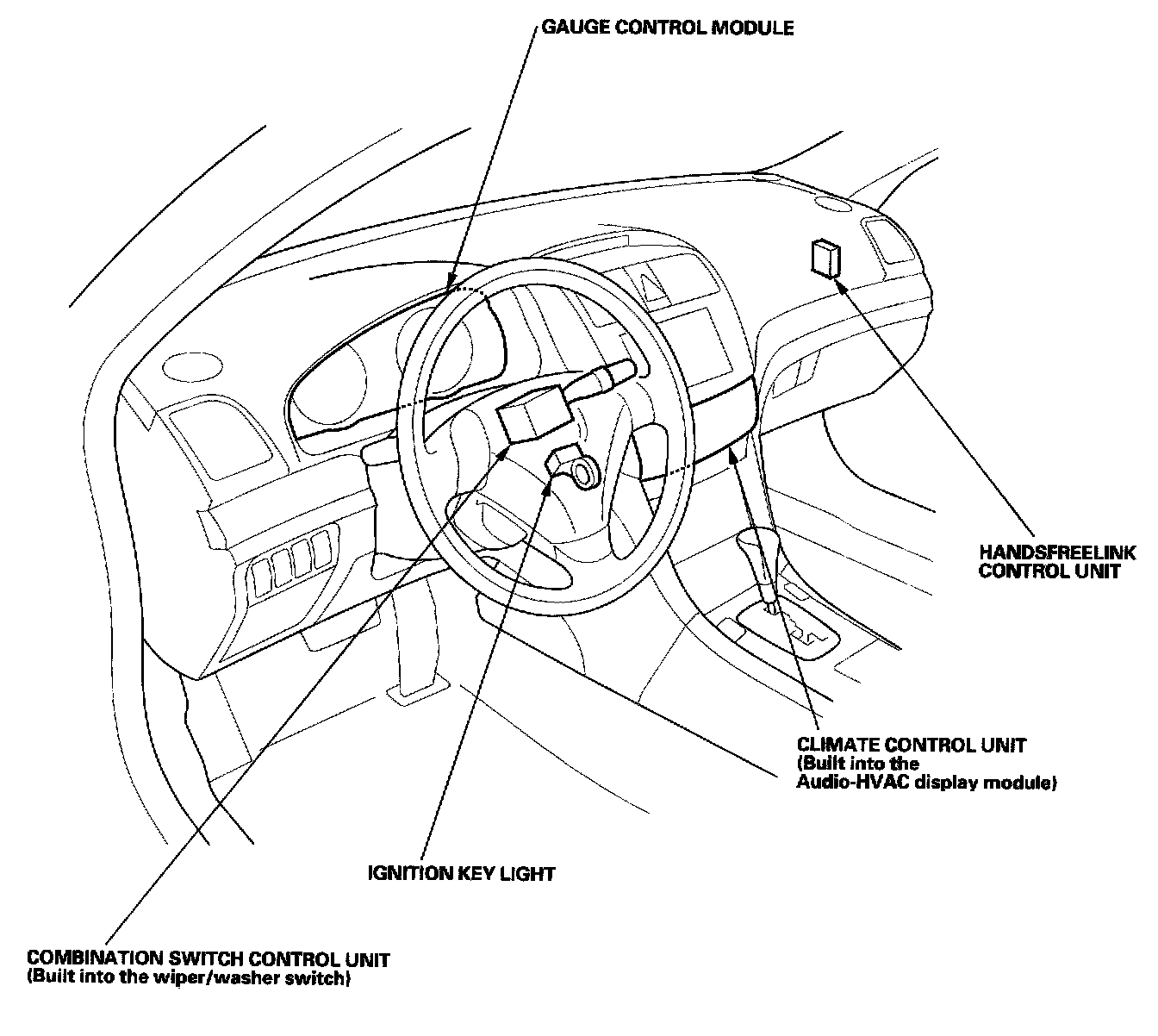

Multiplex Integrated Control System - Component Location Index:

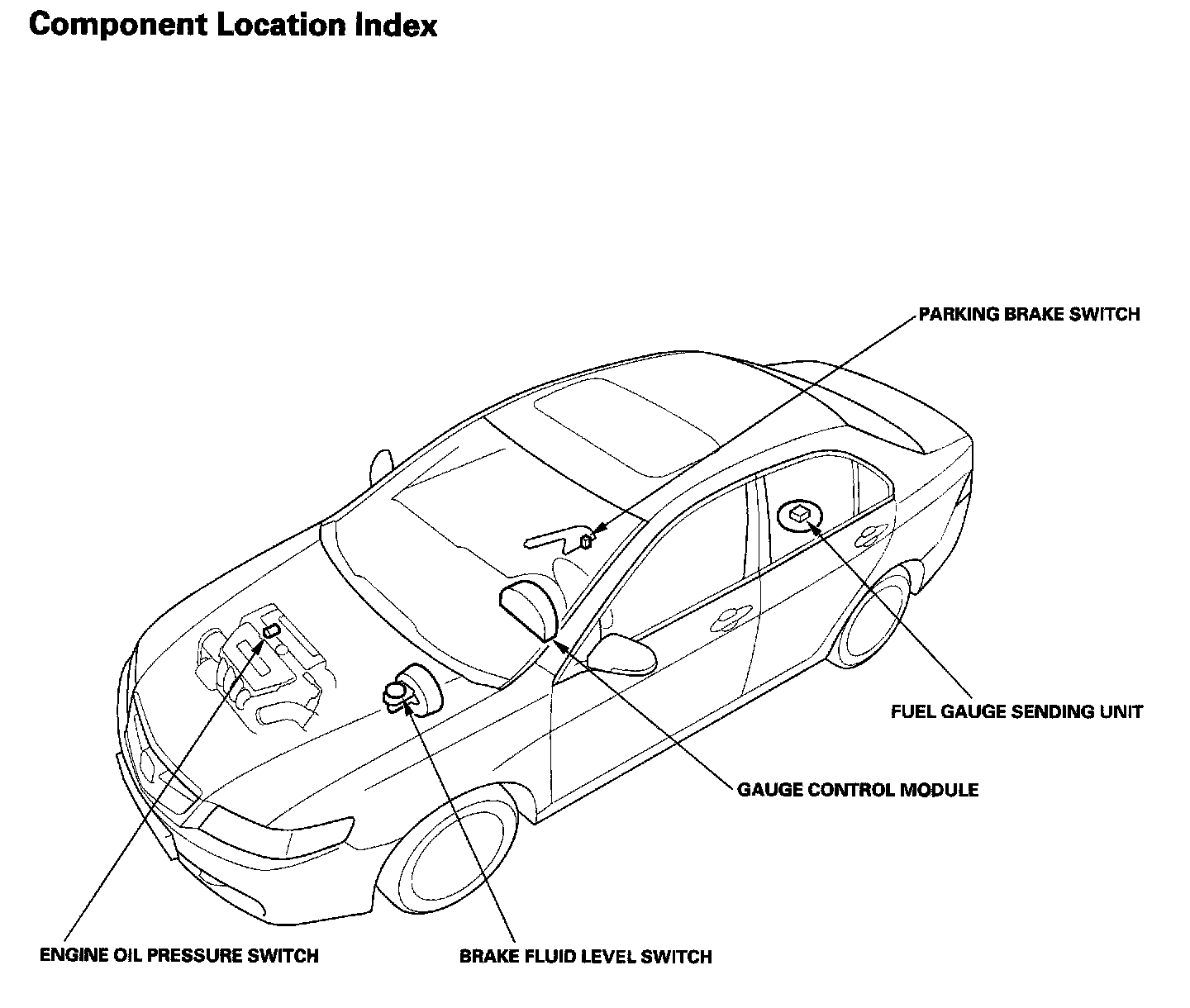

Gauges - Component Location Index:

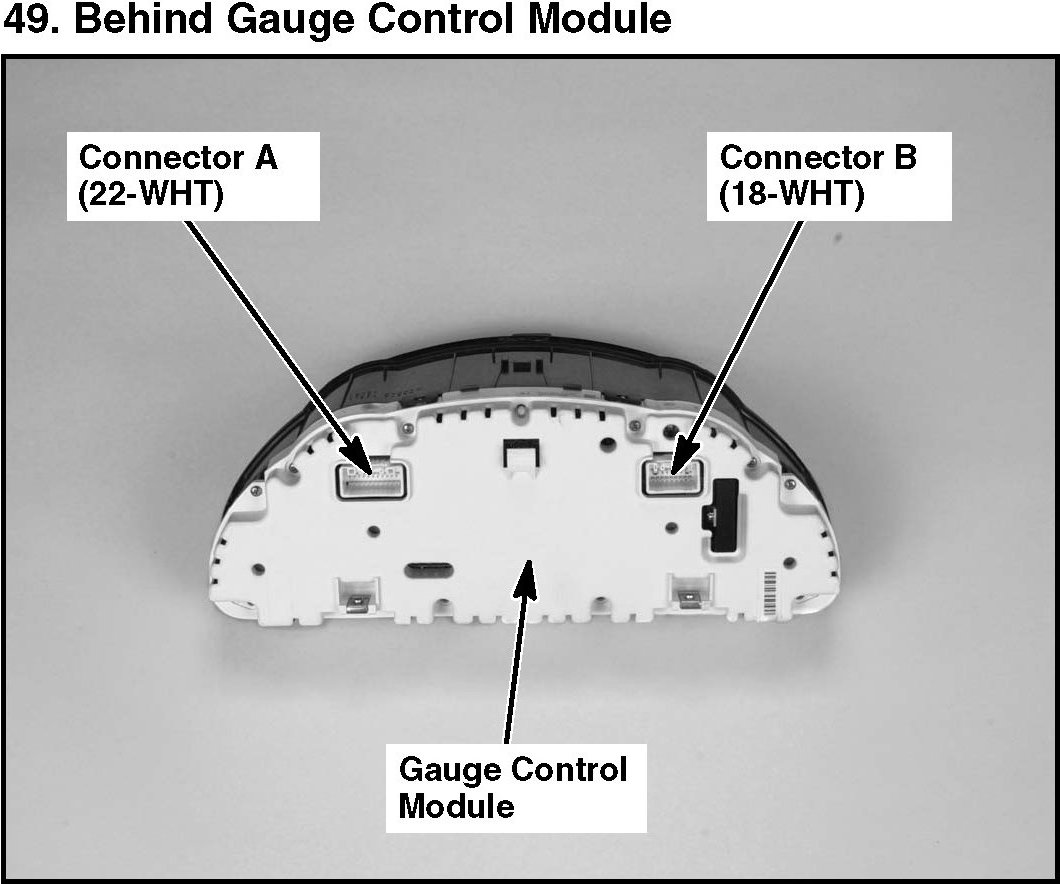

49. Behind Gauge Control Module:
