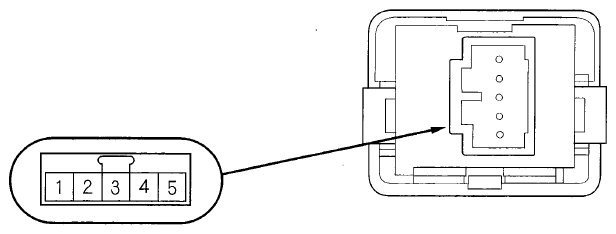

Auxiliary Jack Assembly Connector for Inputs and Outputs
'07 model
With navigation system
CONNECTOR WIRE REFERENCE
| Cavity | Wire | Connect to |
|---|---|---|
| 1 | WHT | Navigation unit (AUX DET) |
| 2 | BLU | Navigation unit (AUX GND) |
| 3 | BRN | Navigation unit (AUX SGND) |
| 4 | YEL | Navigation unit (AUX L) |
| 5 | GRN | Navigation unit (AUX R) |
Without navigation system
CONNECTOR WIRE REFERENCE
| Cavity | Wire | Connect to |
|---|---|---|
| 1 | WHT | Audio Unit (AUX DET) |
| 2 | BLU | Audio Unit (AUX GND) |
| 3 | BRN | Audio Unit (AUX SGND) |
| 4 | YEL | Audio Unit (AUX L) |
| 5 | GRN | Audio Unit (AUX R) |
