Voice Control Switch Test
- Remove the voice control switch (see Voice Control Switch Replacement
).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

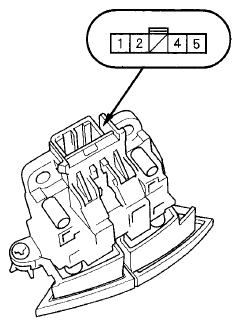

- Measure the resistance between the No. 2 and No. 4 terminals in each switch position according to the table.
RESISTANCE SPECIFICATION
| Position |
Resistance |
| OFF |
About 10 k Ω |
| TALK |
About 2.9 k Ω |
| BACK |
About 680 Ω |
- If the resistance is not as specified, replace the voice control switch (see Voice Control Switch Replacement
).
- Use a diode tester between the terminals in each switch position according to the table.
TERMINAL REFERENCE
- If the diode test is not as specified, replace the switch (see Voice Control Switch Replacement
).
