With Navigation

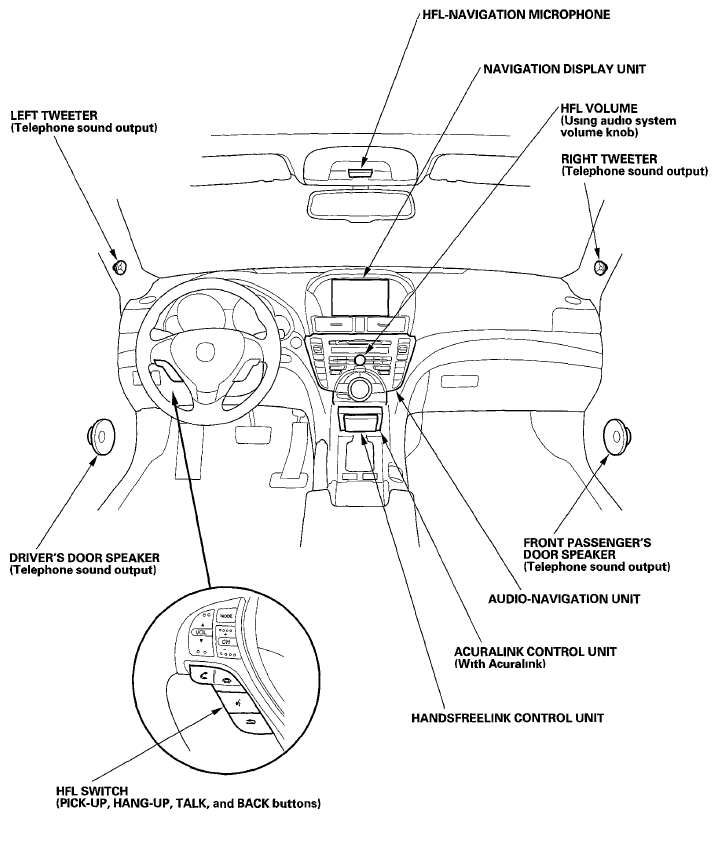

Fig 1: Identifying Handsfreelink System Component Locations - With Navigation
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Without Navigation

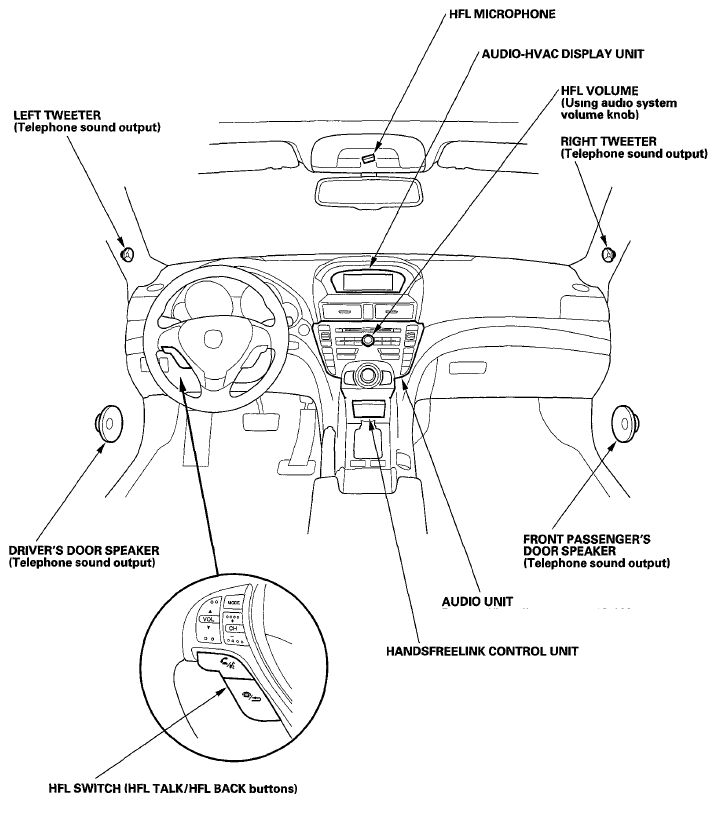

Fig 2: Identifying Handsfreelink System Component Locations - Without Navigation
