Front Brake Disc Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Keep any grease off the brake disc and brake pads
  1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS )
  2. Remove the front wheel
  3. Remove the brake hose mounting bolt (A)

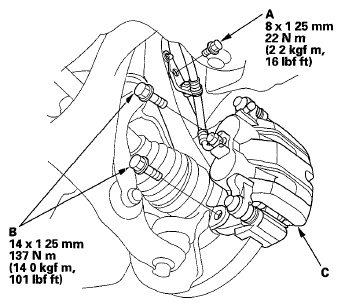

    Fig 1: Brake Hose Mounting Bolt With Torque Specifications
    G05987910Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the brake caliper bracket mounting bolts (B), then remove the caliper assembly (C) from the knuckle To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage Do not twist the brake hose excessively
  5. Remove the brake disc flathead screws (A)

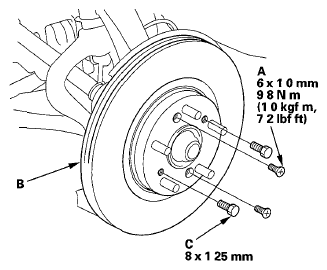

    Fig 2: Brake Disc Flathead Screws With Torque Specifications
    G05987911Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the brake disc (B) from the front hub
    NOTE: If the brake disc is stuck to the front hub, thread two 8 x 1 25 mm bolts (C) into the brake disc to push it away from the front hub Turn each bolt 90 degrees at a time to prevent the brake disc from binding
  7. Install the brake disc in the reverse order of removal
    NOTE: Before installing the brake disc, clean the mating surfaces between the front hub and the inside of the brake disc
  8. Inspect the brake disc runout (see FRONT BRAKE DISC INSPECTION )
  9. Clean the mating surfaces between the brake disc and the inside of the wheel, then install the front wheel
