Immobilizer-Keyless Control Unit Input Test
Immobilizer-keyless Control Unit Input TestNOTE: Before troubleshooting the immobilizer system, troubleshoot the B-CAN System Diagnosis Test Mode A and check the No. 21 (7.5 A) and No. 7 (10 A) fuses in the under-dash fuse/relay box.
1. Remove the steering column covers.

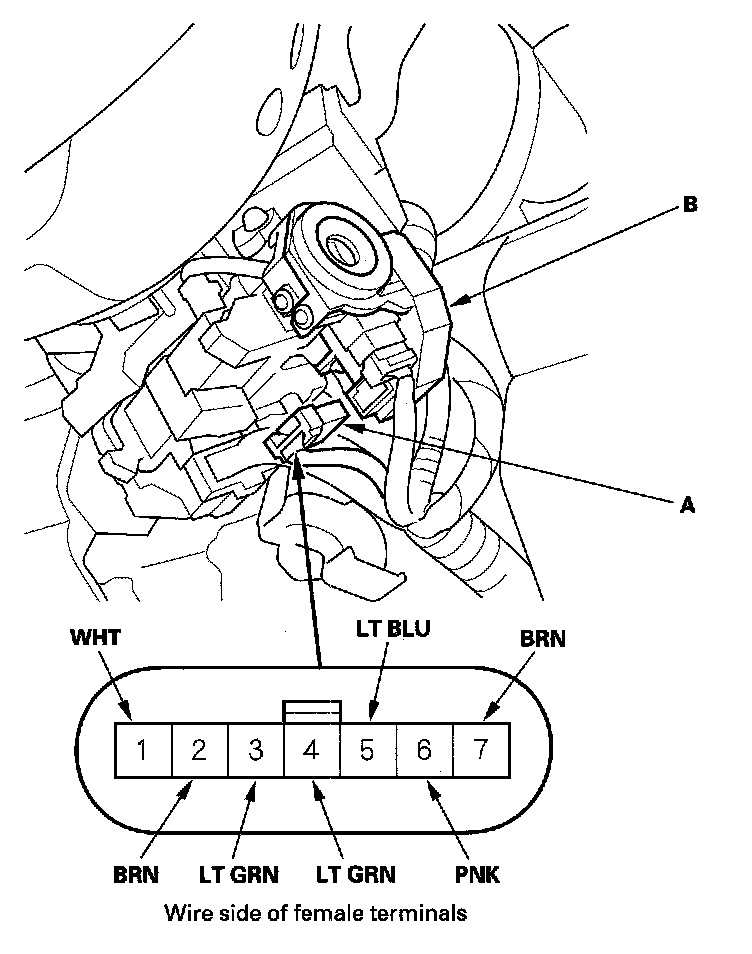

2. Disconnect the 7P connector (A) from the immobilizer-keyless control unit (B).
3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

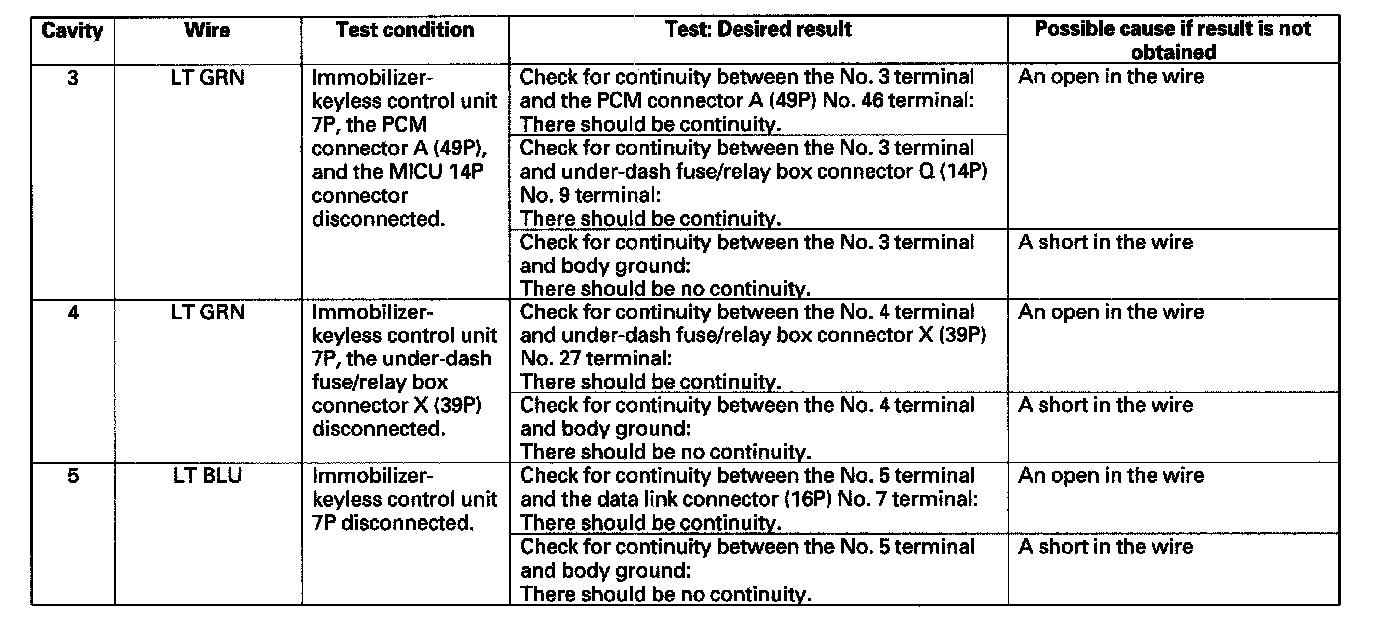

4. With the connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.

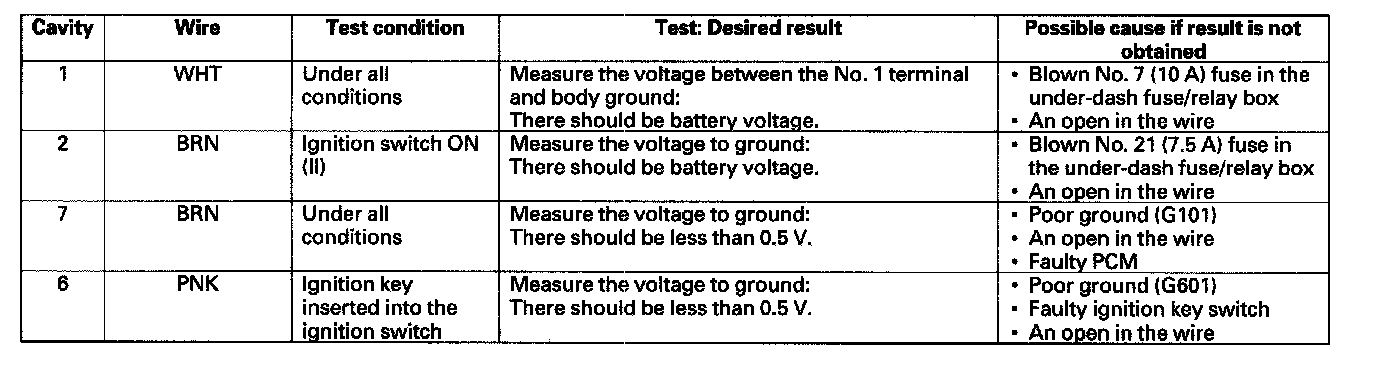

5. Reconnect the connectors to the immobilizer-keyless control unit, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the immobilizer-keyless control unit must be faulty; replace it.
