ECT Sensor Subharness

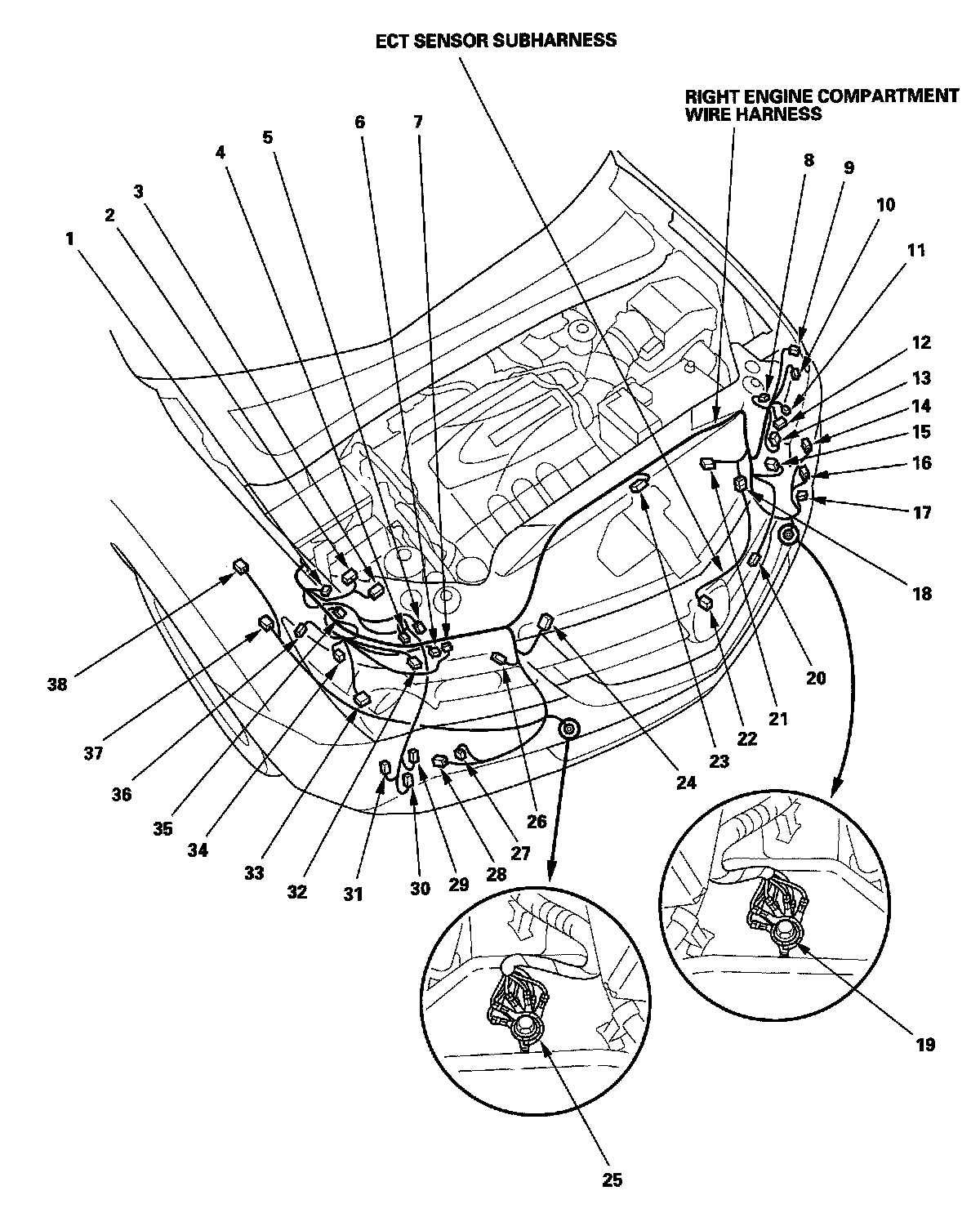

Harness Location View:

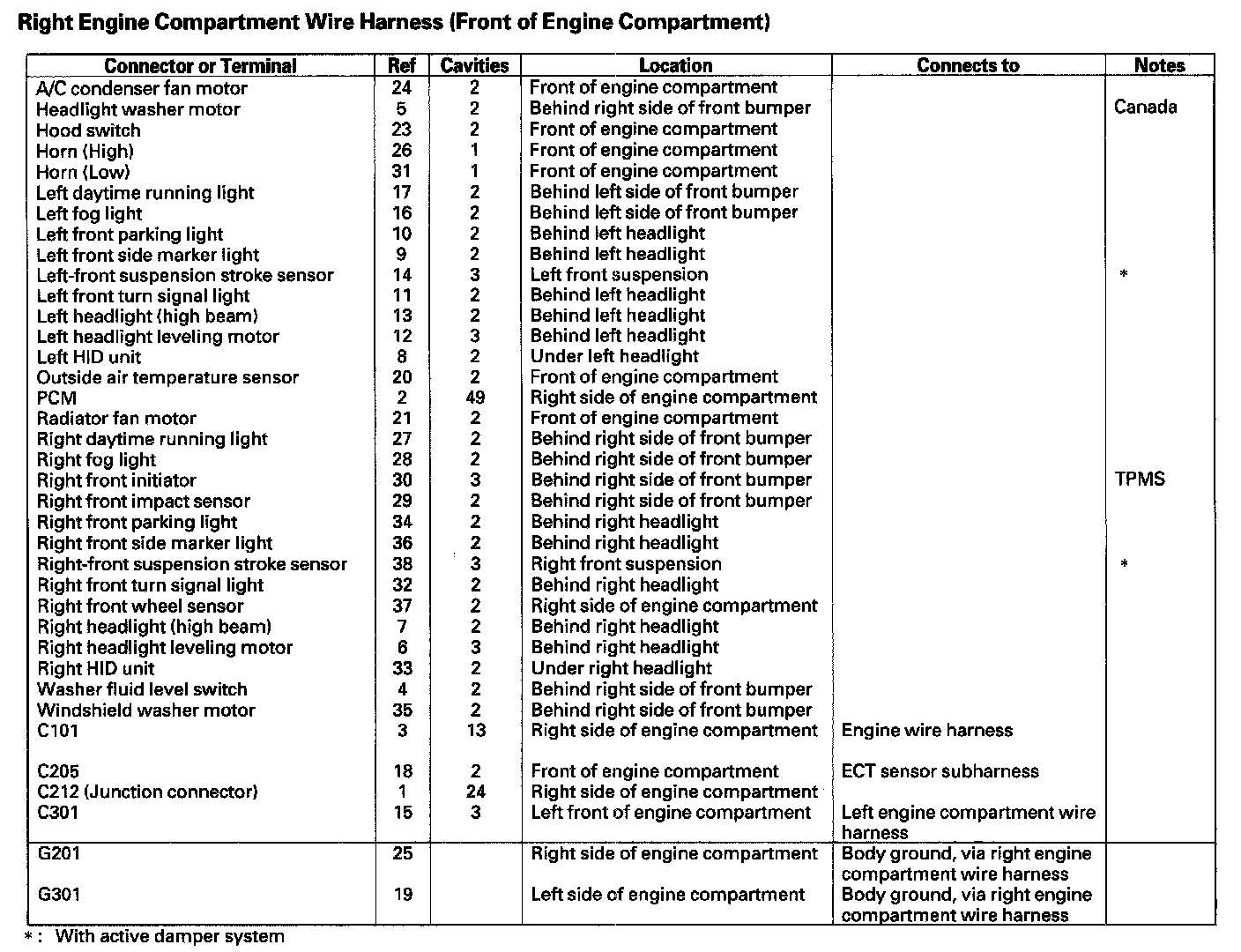

Right Engine Compartment Wire Harness (Front Of Engine Compartment):
