Under-Hood Fuse/Relay Box (Relay Control Module Part)

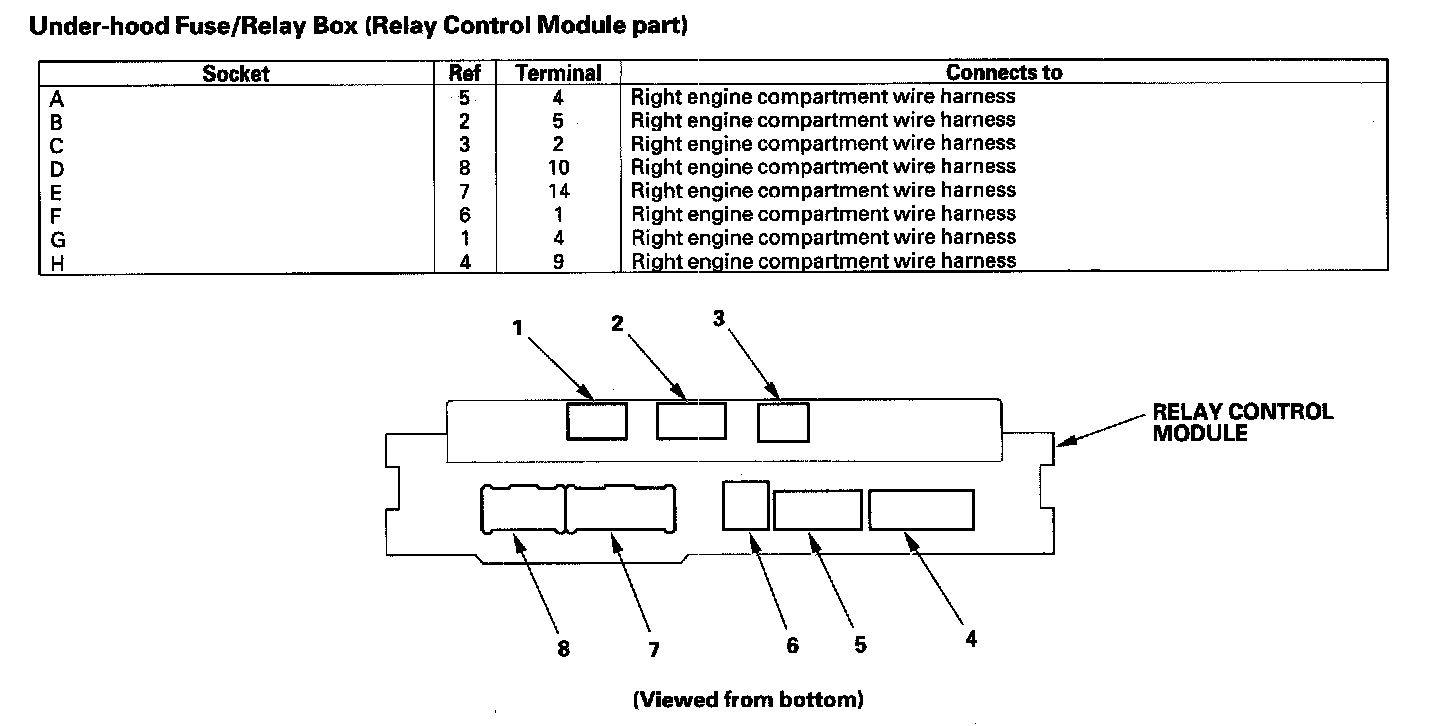

Under-hood Fuse/Relay Box (Relay Control Module Part):
