MICU Input Test

MICU Input Test

NOTE: Before testing, troubleshoot the B-CAN System Diagnosis Test Mode A.

1. Turn the ignition switch OFF.
2. Remove the left kick panel.

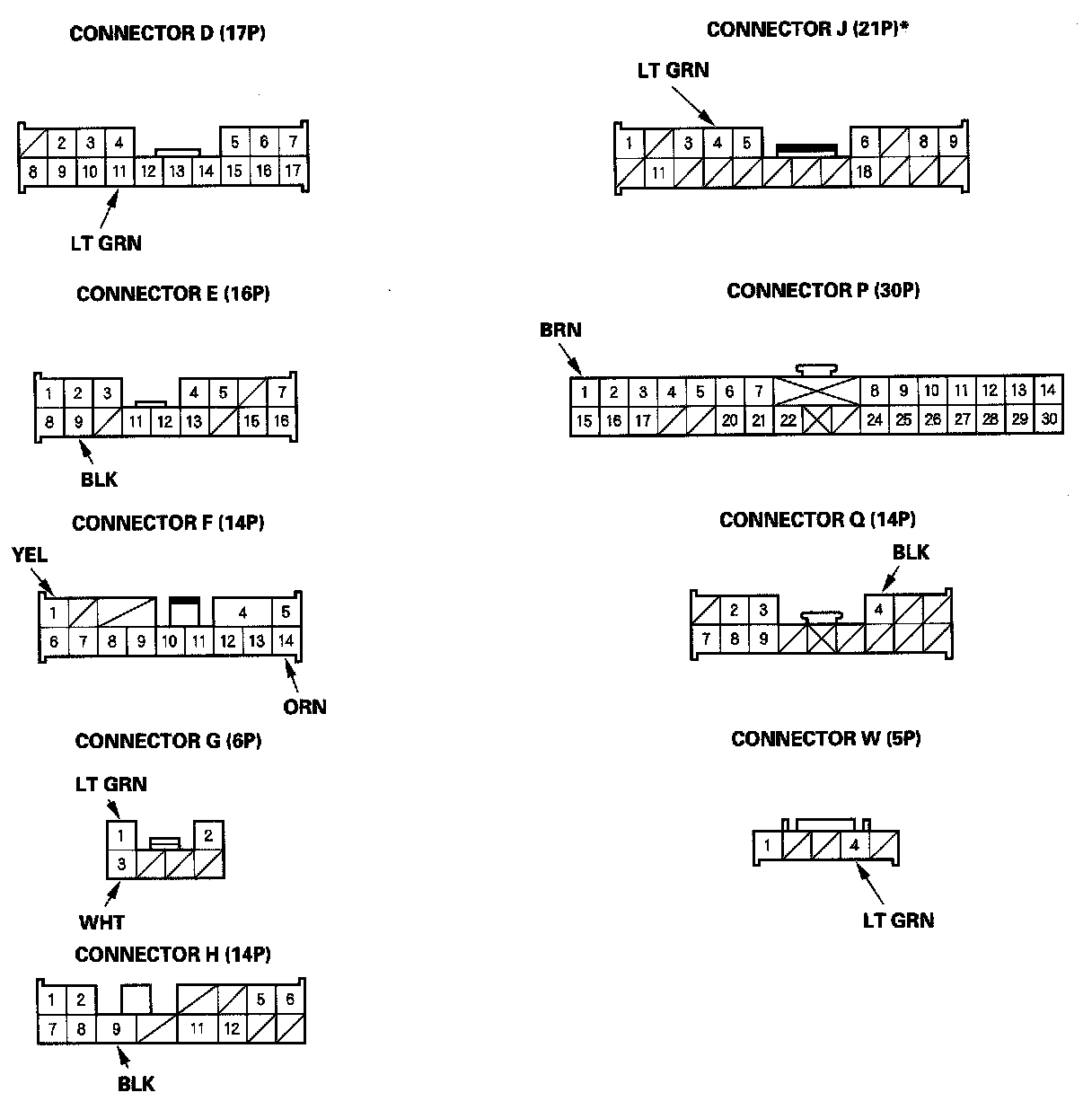

3. Disconnect the under-dash fuse/relay box connectors D, E, F, G, H, J, N, P, Q, W, and X.

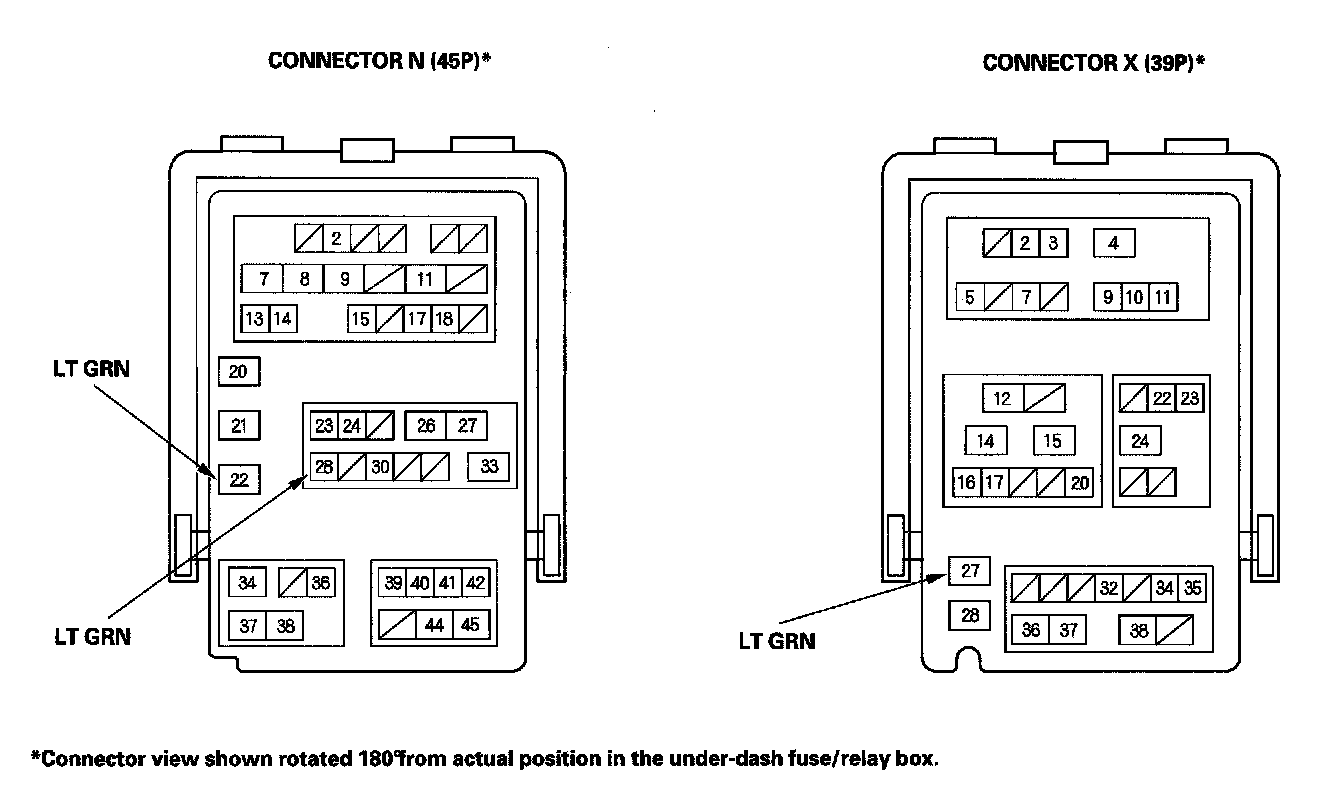

NOTE: All connector views are wire side of female terminals.

4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 5.

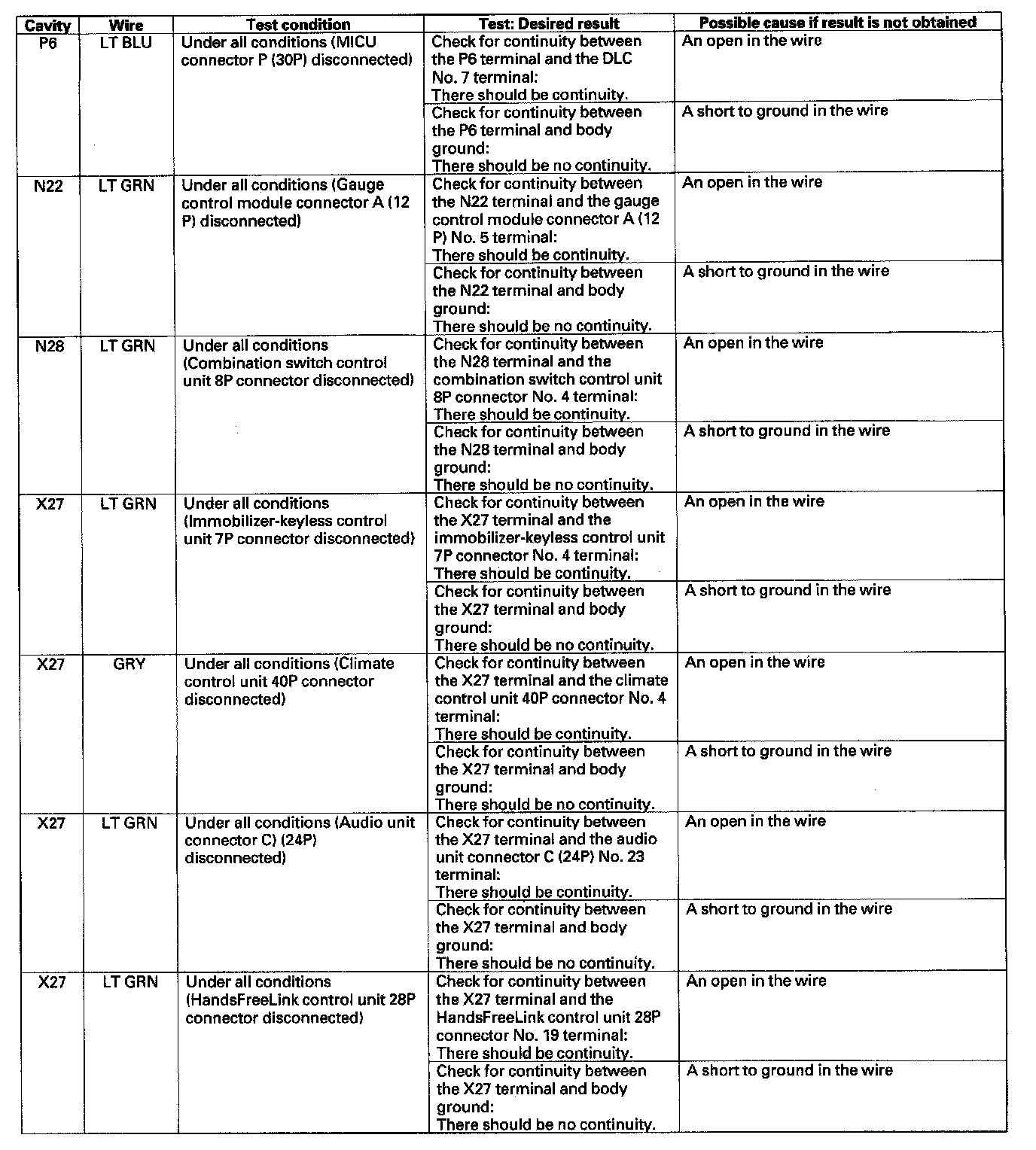

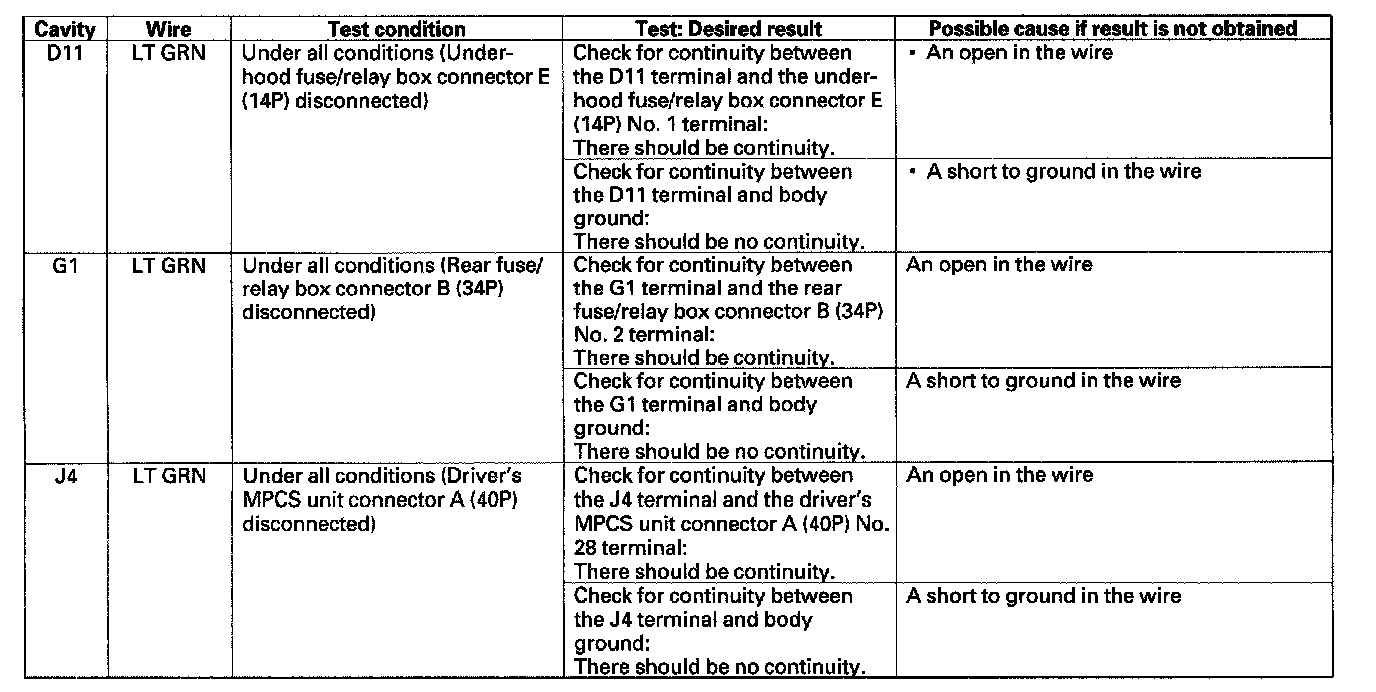

5. With the connector still disconnect, make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

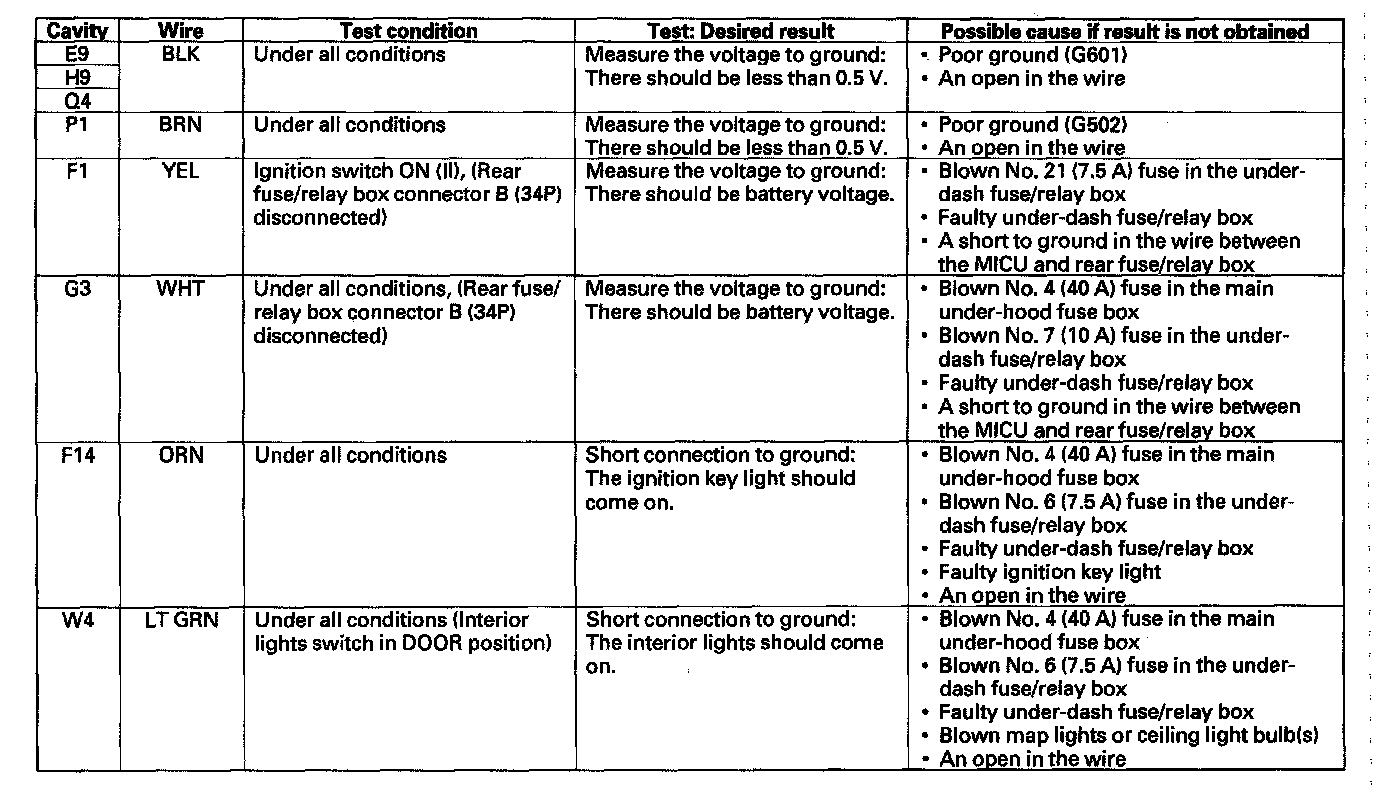

6. Reconnect the connectors, and make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the MICU must be faulty; replace the under-dash fuse/relay box.
