Power Window Master Switch Replacement

Power Window Master Switch Replacement
1. Remove the driver's door panel, and disconnect the 14P connector from the power window master switch.
2. Remove the power window switch panel.

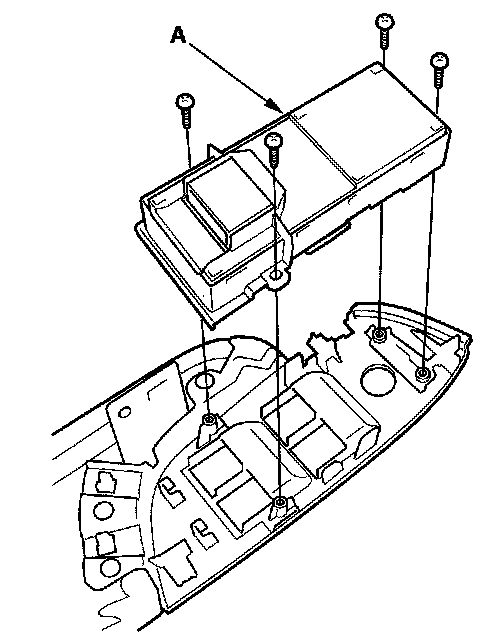

3. Remove the four mounting screws and the power window master switch (A).
4. Install the switch in the reverse order of removal.
5. Reset the power window control unit.
