Front Subframe Alignment

NOTE:
  • After mounting the subframe and brackets loosely, align all of the installation reference holes in the subframe, in the subframe front bracket, and in the body using a screwdriver or tapered punch as a guide, then tighten the bolts.
  • After reinstalling all removed parts, check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).

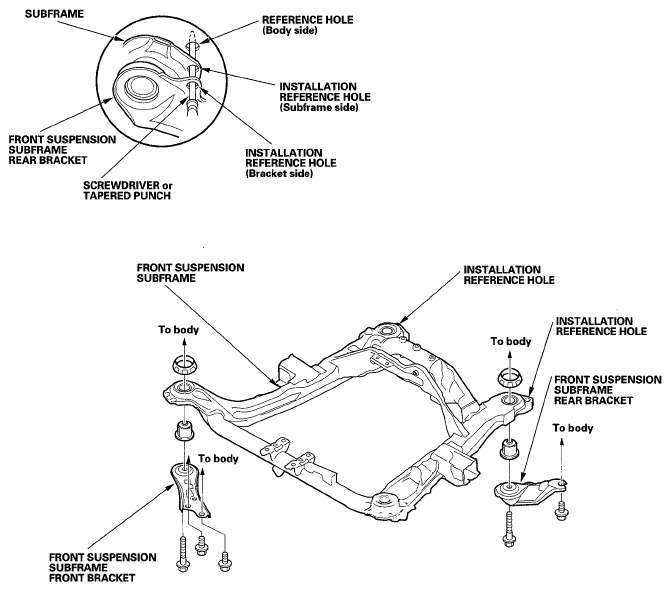

    Fig 1: Exploded View Of Front Subframe
    G05487520Courtesy of AMERICAN HONDA MOTOR CO., INC.
