Humidity Sensor Test

  1. Remove the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
  2. Connect the humidity/in-car temperature sensor 4P connector.
  3. Turn the ignition switch to ON (II). Measure the voltage between the terminals with the (+) probe on the No. 2 terminal and the (-) probe on the No. 3 terminal with the connector connected.

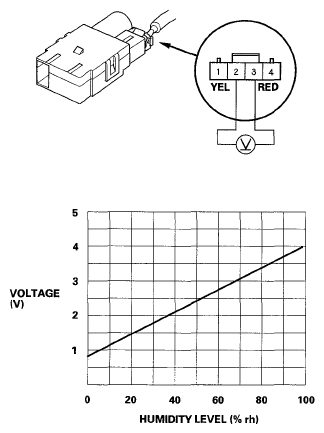

    Fig 1: Measuring Voltage Between Terminals With (+) Probe On No. 2 And (-) Probe On No. 3 Terminal
    G05487686Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the voltage is not as specified, replace the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
