FTP Sensor Replacement

  1. Remove the EVAP canister cover (A).

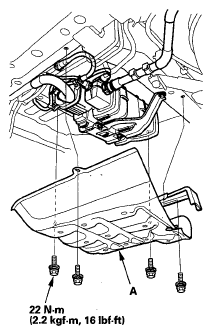

    Fig 1: EVAP Canister Cover And Bolts With Torque Specification
    G05485381Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Disconnect the FTP sensor connector (A).
    Fig 2: Identifying FTP Sensor Connector And Hose With FTP Sensor
    G05485382Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hose (B), remove the retainer (C) and remove the FTP sensor (D).
  4. Install the parts in the reverse order of removal with a new O-ring (E).
